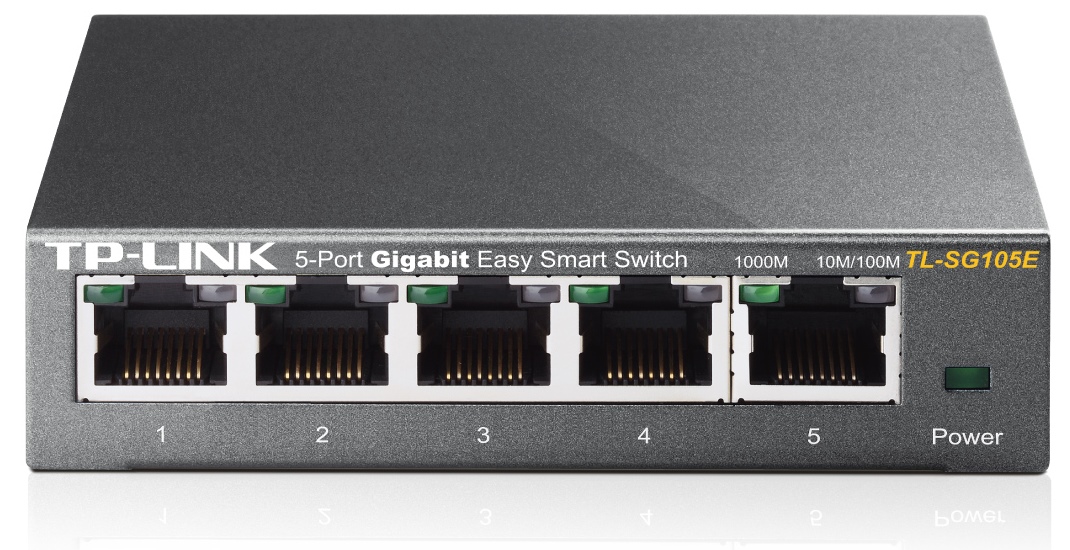

TP-Link TL-SG105E 5-port Gigabit Easy Smart Switch
| Kód tovaru: | 56656 |
|---|---|
| Výrobca: | TP-link |
| PN kód: | TL-SG105E |
| EAN kód: | 6935364022037 |
| Záruka: | 24 mesiacov |
| Dostupnosť: | skladom (20) |
TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch
OVERVIEW
* 5 10/100/1000Mbps RJ45 ports
* Provides network monitoring, traffic prioritization and VLAN features
* Innovative energy-efficient technology reduces power output by up to 75%
* Simple network set-up on top of plug-and-play connectivity
* Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
SPECIFICATIONS
HARDWARE FEATURES
Standards and Protocols
* IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
* 5 10/100/1000Mbps RJ45 Ports
* AUTO Negotiation/AUTO MDI/MDIX
Network Media
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
Dimensions (W X D X H)
* 100 * 98 *25 mm
Fan Quantity
* Fanless
Power Supply
* 100-240VAC, 50/60Hz
* PERFORMANCE
MAC Address Table
* 8K
Packet Buffer Memory
* 2Mb
Packet Forwarding Rate
* 7.4Mpps
Jumbo Frame
* 16KB
SOFTWARE FEATURES
Quality of Service
* Support Port Based/802.1p Based priority
* Support 4 priority queues
* Rate Limit
* Storm Control
L2 Features
* IGMP Snooping
* Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
VLAN
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
Transmission Method
* Store-And-Forward
OTHERS
Certification
* FCC, CE, RoHS
Package Contents
* TL-SG105E
* Power Cord
* Installation Guide
* Resource CD
* Rubber Feet
System Requirements
* Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment
* Operating Temperature: 0°C~40°C
* Storage Temperature: -40°C~70°C
* Operating Humidity: 10%~90% non-condensing
* Storage Humidity: 5%~90% non-condensing
TP-Link TL-SG105E 5-port Gigabit Easy Smart Switch
Príslušenstvo
TP-Link D-TPDIN100 Držák na DIN lištu pro OC200, SF1005xx, SG105xx, SG1005xx, šedý
Druh:Konzoly, stojany
skladom (4)
Parametre
| Rozměr xyz kartonu | 54.6x40.1x30.9 |
| Typ balení jedn. balení | Balitelné |
| Hmotnost kartonu | 17.456 |
| Počet kusů jedn. balení | 1 |
| Typ balení kartonu | Balitelné |
| Hmotnost jedn. balení | 0.454 |
| Rozměr xyz jedn. balení | 13.2x13.1x9.5 |
| Šířka jedn. balení | 13.2 |
| Počet kusů v kartonu | 24 |
| Výška jedn. balení | 13.1 |
| Typ obalu kartón | Expedovatelné |
| Hloubka jedn. balení | 9.5 |
| Rychlost LAN max. | 1 Gbps |
| Optika | Ne |
| Počet LAN portů | 5 |
| Obsahuje switch | Ano |
| POE | Ne |
| Management | Smart switch |
| Provedení switche | Desktop |
| Fanless switch | Ano |
