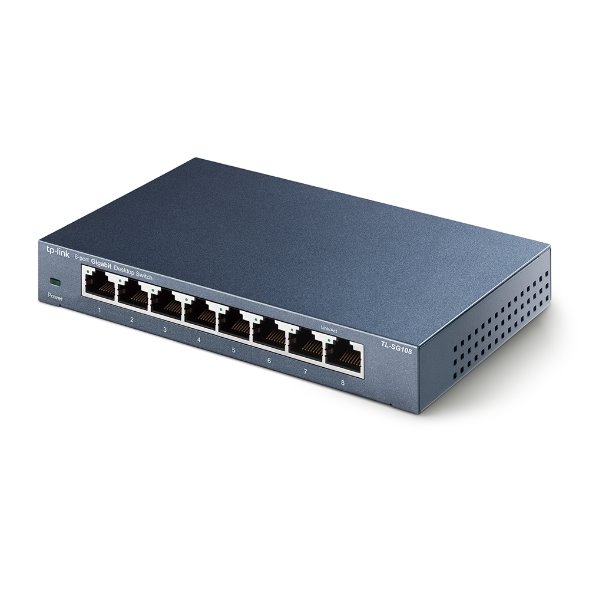

TP-LINK TL-SG108 8-Port Gigabit Desktop Switch, 8 Gigabit RJ45 Ports, Desktop Steel Case
Kód tovaru: | 56657 |
---|---|
Výrobca: | TP-link |
PN kód: | TL-SG108 |
EAN kód: | 6935364021153 |
Záruka: | 1860 dní |
Dostupnosť: | skladom (38) |
8-Port 10/100/1000Mbps Desktop Switch TL-SG108
8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves the power up to 82%
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, no configuration needed
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p
Interface 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 9VDC / 0.6A)
Buffer Size 1.5Mb
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
Max Power Consumption 3.31W(220V/50Hz)
Max Heat Dissipation 11.29BTU/h
PERFORMANCE
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Jumbo Frame 16KB
SOFTWARE FEATURES
Advanced Features Green Technology, saving power up to 82%
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS

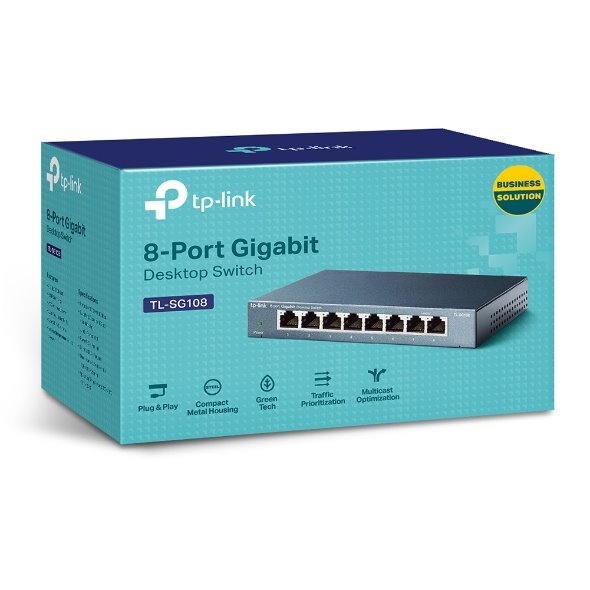

Package Contents 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
Príslušenstvo
Parametre
Typ balení kartonu | Balitelné |
Rozměr xyz kartonu | 43x36x37 |
Hmotnost jedn. balení | 0.528 |
Hmotnost kartonu | 15.100 |
Typ balení jedn. balení | Balitelné |
Rozměr xyz jedn. balení | 13.2x19.3x9.4 |
Šířka jedn. balení | 13.2 |
Počet kusů v kartonu | 24 |
Výška jedn. balení | 19.3 |
Počet kusů jedn. balení | 1 |
Typ obalu kartón | Expedovatelné |
Hloubka jedn. balení | 9.4 |
Provedení switche | Desktop |
Rychlost LAN max. | 1 Gbps |
Optika | Ne |
Počet LAN portů | 8 |
Obsahuje switch | Ano |
POE | Ne |
Management | Unmanaged switch |
Fanless switch | Ano |
