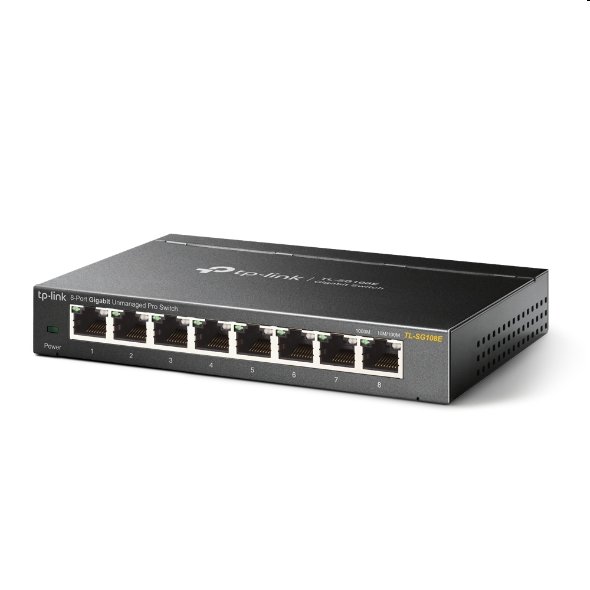

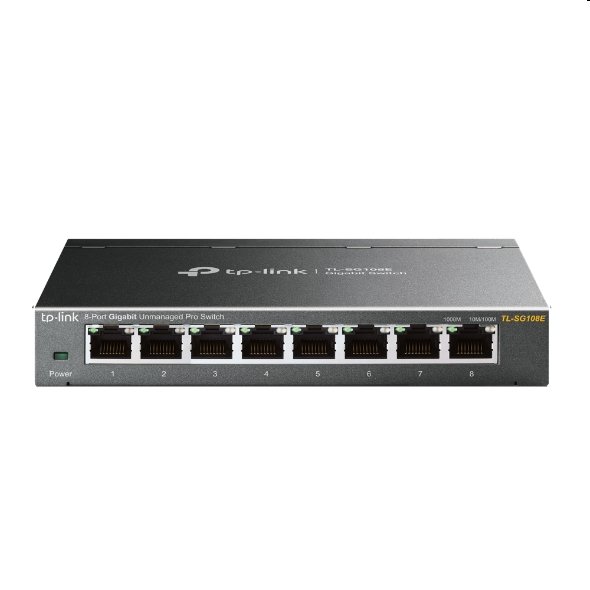

TP-LINK TL-SG108E 8-Port Gigabit Easy Smart Switch, 8 Gigabit RJ45 Ports, Desktop Steel Case, MTU/Port/Tag-based VLAN

8portový gigabitový switch Easy Smart
TL-SG108E
8 portů 10/100/1 000 Mbit/s RJ45
Poskytuje monitorování sítě, prioritizaci přenosů a funkce VLAN
Inovativní technologie úspory energie ušetří až 80% spotřeby
Jednoduché nastavení sítě a připojení plug-and-play
S nástrojem jednoduché chytré konfigurace můžete centrálně spravovat všechny jednoduché chytré switche Easy Smart

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 9VDC/0.6A)
Power Consumption Maximum: 4.48W (220V/50Hz)
Dimensions ( W x D x H ) 6.2*4.0*1.0 in. (158*101*25 mm)
Max Power Consumption 3.55W(220V/50Hz)
Max Heat Dissipation 12.12BTU/h
PERFORMANCE
Switching Capacity 16Gbps
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG108E
Power Cord
Installation Guide
Resource CD
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Parametre
