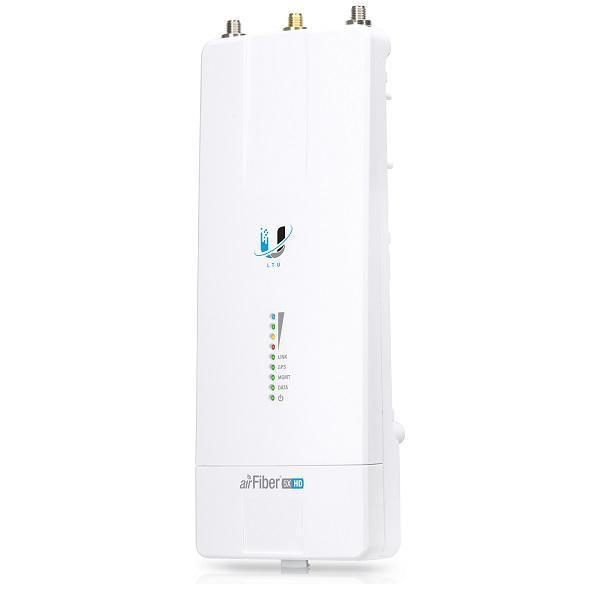

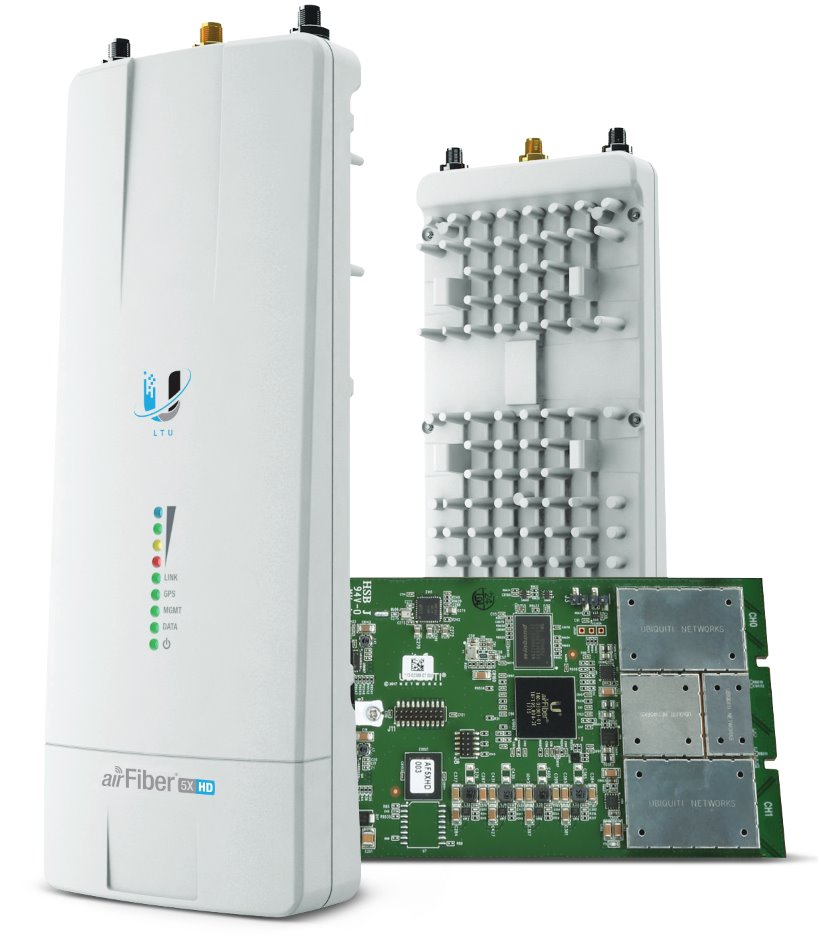

Ubiquiti AirFiber AF-5XHD 5GHz HD Point-to-Point 1000+Mbps

technologie datového přenosu 1Gbps+ za pomoci technologie PtP pro Internet providery nebo jinak náročná datová propojení.

5 GHz, 100+ km link range

1000+ Mbps throughput

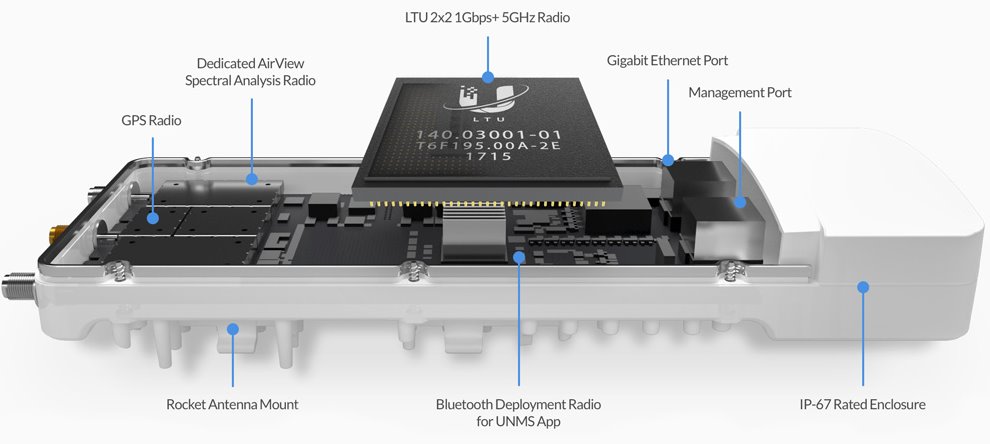

Dedicated spectral analysis radio

Integrated GPS sync

2+ Mpps processing

Technical Specifications

Mechanical

Dimensions 224 x 82 x 48 mm (8.8 x 3.2 x 1.9")

Weight 0.4 kg (0.8 lb)

Mounting airFiber X mount (Rocket mount compatible)

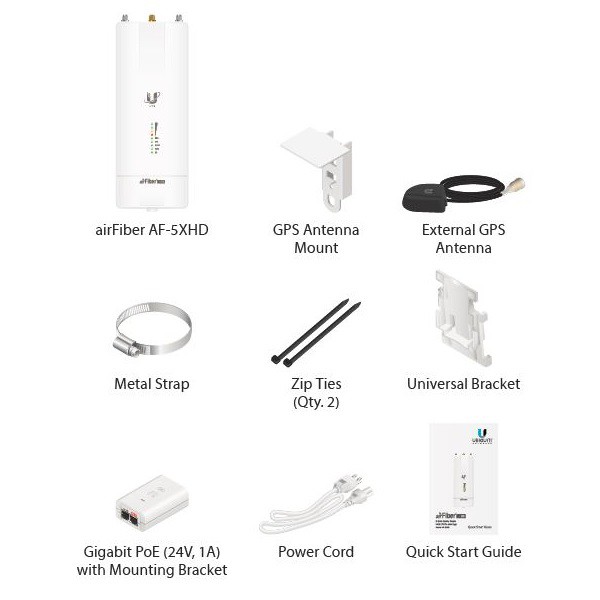

GPS Pole Mount (Included)

Weatherproofing IP67*

*After installation of IP67 upgrade kit (included).

Hardware

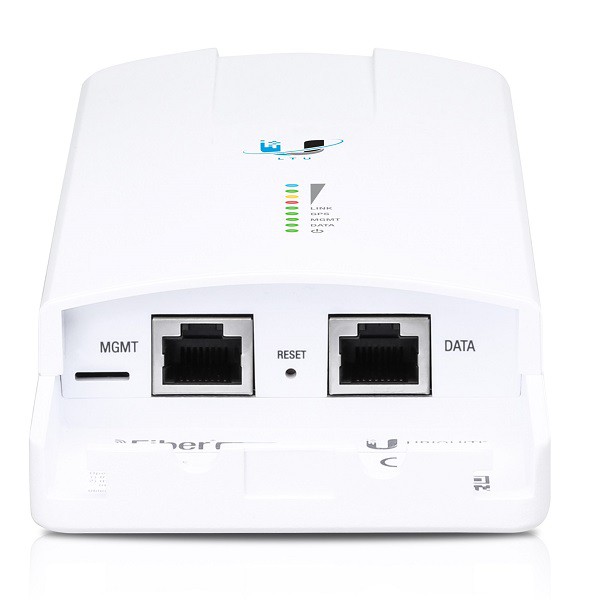

Networking interface (2) GbE RJ45 ports

Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-)

Power supply 24V, 1A gigabit PoE adapter (Included)

Supported voltage range 18—54V DC

Max. power consumption 12W

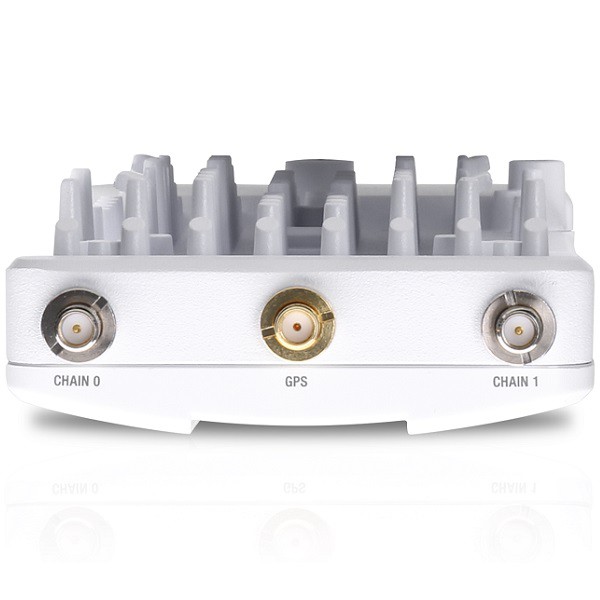

GPS antenna External, magnetic base

Ambient operating temperature -40 to 55° C (-40 to 131° F)

Certifications CE, FCC, IC

Software

Modes PtP Master/Slave

Max. throughput 1+ Gbps

Max. range* 100+ km

*Throughput and range values may vary depending on the environmental conditions.

Encryption AES-256

RF

Max. TX power* 29 dBm

*Depends on regional regulations.

Frequency accuracy ± 2.5 ppm without GPS Synchronization

± 0.2 ppm with GPS Synchronization

Channel bandwidth 10/20/30/40/50/60/80/100 MHz selectable

Programmable Uplink and Downlink duty cycles

Operating Frequency (MHz)

Worldwide 4800 - 6200 MHz*

*Depends on regional regulations.

US/CA

U-NII-1

U-NII-2A

U-NII-2C

U-NII-3

5150 - 5250 MHz

5250 - 5350 MHz

5470 - 5725 MHz

5725 - 5850 MHz
