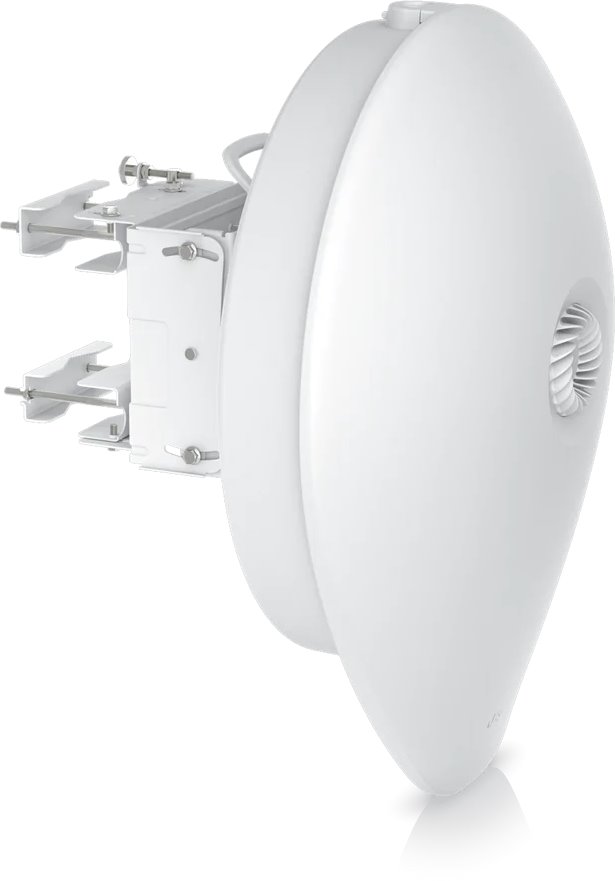

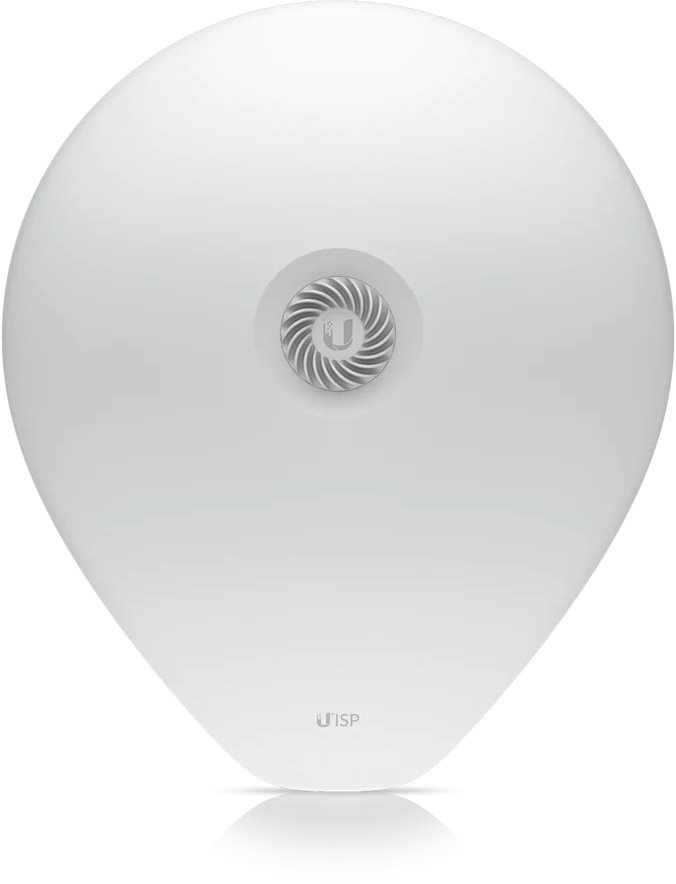

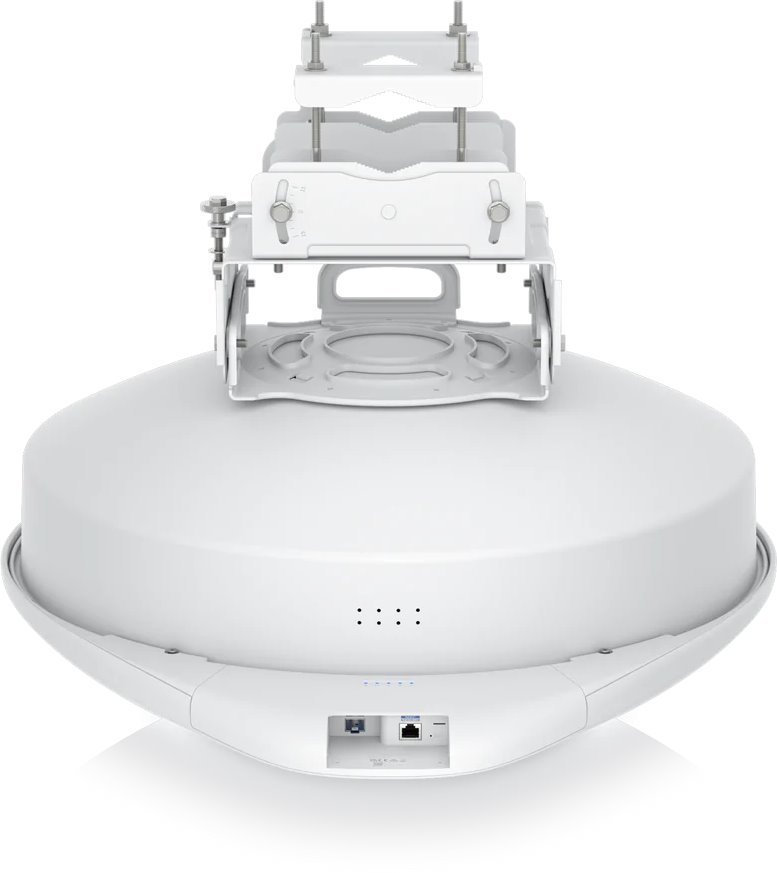

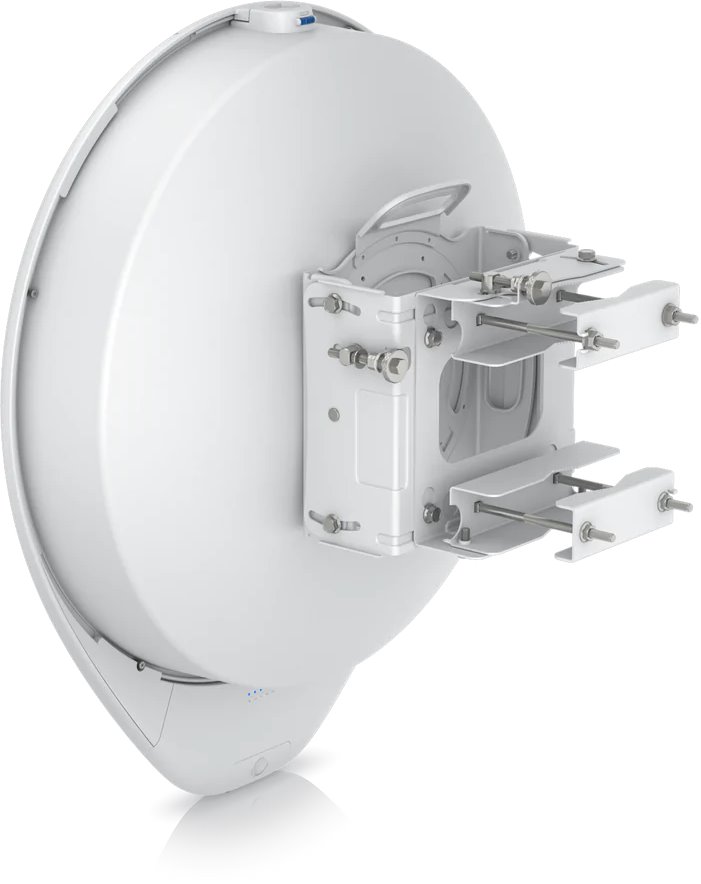

Ubiquiti AirFiber AF60-XR 60GHz XR PtP 2,7Gbps (up to 15km)

Kód tovaru:	1427131
Výrobca:	Ubiquiti
PN kód:	AF60-XR
EAN kód:	810010076106
Záruka:	24 mesiacov
Dostupnosť:	nie je skladom

1085,78€ 904,82€ bez DPH

Pridať do obľúbených

Parametre

Technical Specifications

Mechanical

Dimensions 779 x 664 x 383 mm (30.7 x 26.1 x 15.1")

Weight Without mount: 8.6 kg (19 lb)

With mount: 13 kg (28.7 lb)

Enclosure material UV stabilized polycarbonate, steel

Mount material Galvanized steel

Mounting Precision alignment kit (included)

Pole compatibility: O40 to 80 mm (O1.5 to 3.15") on pipe outer diameter

Wind loading 422 N at 200 km/h (94.86 lbf at 125 mph)

Weatherproofing IPX6

Hardware

Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz

Memory DDR3L1 GB

Networking interface (1) GbE RJ45 port

(1) 1/10G SFP+port

Max. power consumption 24W

Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply 48V DC, 0.65A gigabit PoE adapter (Included)

Supported voltage range 44–54V DC

22–27V DC

GPS Yes

RF connections Internal

Button Factory reset

Ambient operating temperature -40 to 55° C (-40 to 131° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications FCC, IC, CE

Software

Operating mode PtP only

Ubiquiti specific features Integrated 60 GHz radio, discovery protocol, Wave technology

Services UISP, ping watchdog, NTP client, device discovery

Tools Antenna alignment, discovery utility, ping, trace route, speed test

Network Bridge mode

Management application UISP web: Version 1.4.3 and later

UISP iOS™: Version 2.20 and later

UISP Android™: Version 2.21.5 and later

System

Max. throughput 2.7 Gbps

Max. range 15+ km

Encryption WPA2-PSK (AES)

RF

Operating frequency* 57–71 Ghz

* Depends on regulatory region.

Channel bandwidth 2160, 1080 MHz

Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz

* Depends on regulatory region.

Management radio 2400–2483.5 MHz

Modulation 16QAM, BPSK, QPSK

Polarization Vertically linear

Beamwidth Azimuth: 3 dB 1.4°

Elevation: 3 dB 1.4°

Electrical downtilt 0°

Back-Up RF

Operating frequency*

US/CA

Worldwide

U-NII-1 5150 - 5250 MHz

U-NII-2A 5250 - 5350 MHz

U-NII-2C 5470 - 5725 MHz

U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz

*Depends on regulatory region.

Channel bandwidth 20, 40, 80 MHz

Modulation BPSK (1), QPSK (1), QPSK (3), 16QAM (1), 16QAM (3), 64QAM (2/3), 64QAM (3), 64QAM (5/6), 256QAM (3), 256QAM (5/6)

Antenna gain 26 dBi

Polarization Dual-linear

Beamwidth Azimuth: 3 dB 5°

Elevation: 3 dB 5°

Cross-pol isolation 14 dB

Electrical downtilt 0°

LEDs

Power Flashing white: bootup in progress

White: not connected to UISP application

Blue: connected to UISP application

Ethernet Flashing blue: Ethernet activity

GPS Blue: receiving at least (4) GPS satellite signals

Link Blue: 5GHz link

Blue: 60GHz link

Parametre

Počet kusů jedn. balení	1
Hmotnost jedn. balení	19
Rozměr xyz jedn. balení	78x46x78.5
Typ balení jedn. balení	Kompletní
Hloubka jedn. balení	78.5
Výška jedn. balení	46
Šířka jedn. balení	78
Obsahuje switch	Ne
POE	Ano
USB port u routeru	Není
Wi-Fi 5 GHz	Ano
Použití (venkovní/vnitřní)	Venkovní
Typ zařízení	Acces point/Bridge
