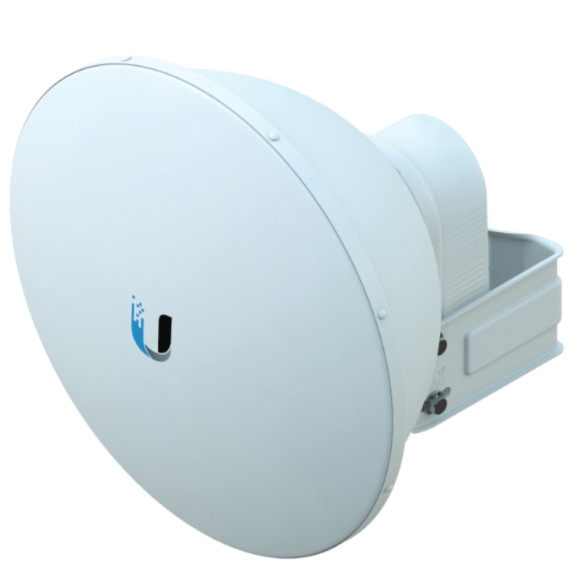

Ubiquiti AirFiber AF-5G23-S45 anténa 5GHz 23dbi

5 GHz, 23 dBi antenna ideal for long range Point-to-Point (PtP) links.

2x2 dual-polarity performance

Robust mechanical design for outdoor application use

Secure pole-mounting

Compatible with airFiber X radios

Technical Specifications

AF-5G23-S45

Dimensions 378 x 378 x 290 mm (14.88 x 14.88 x 11.42")

Weight With Mount: 3.4 kg (7.5 lb)

Frequency 5.1 - 5.9 GHz

Gain 23 dBi

Max. VSWR 1.5:1

Wind Survivability 200 km/h (125 mph)

Wind Loading 190 N @ 200 km/h (43 lbf @ 125 mph)

Polarization Dual Linear

F/B Ratio 33 dB

ETSI Specification EN 302 326 DN2

Mounting Universal Pole Mount for O 38 - 64 mm (O 1.5 - 2.5") Poles
