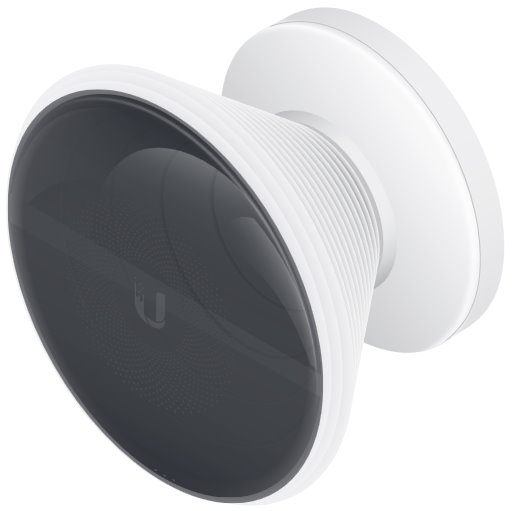

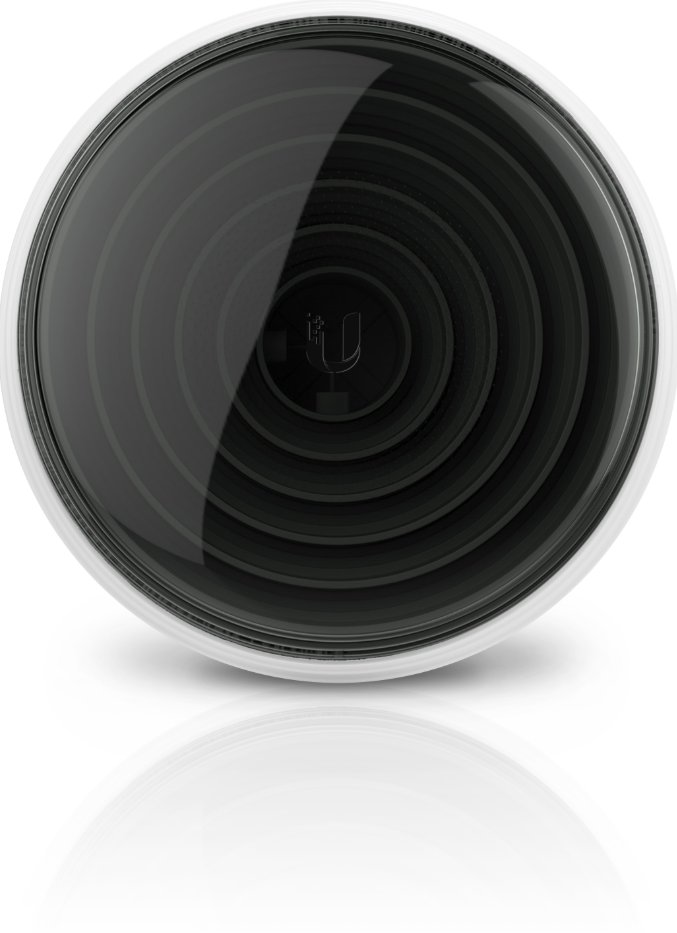

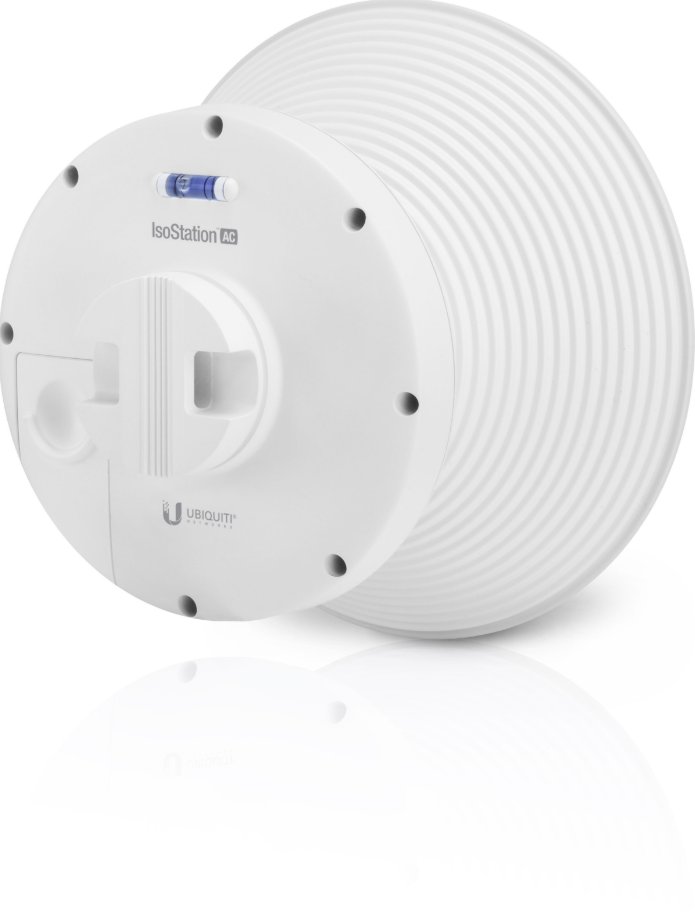

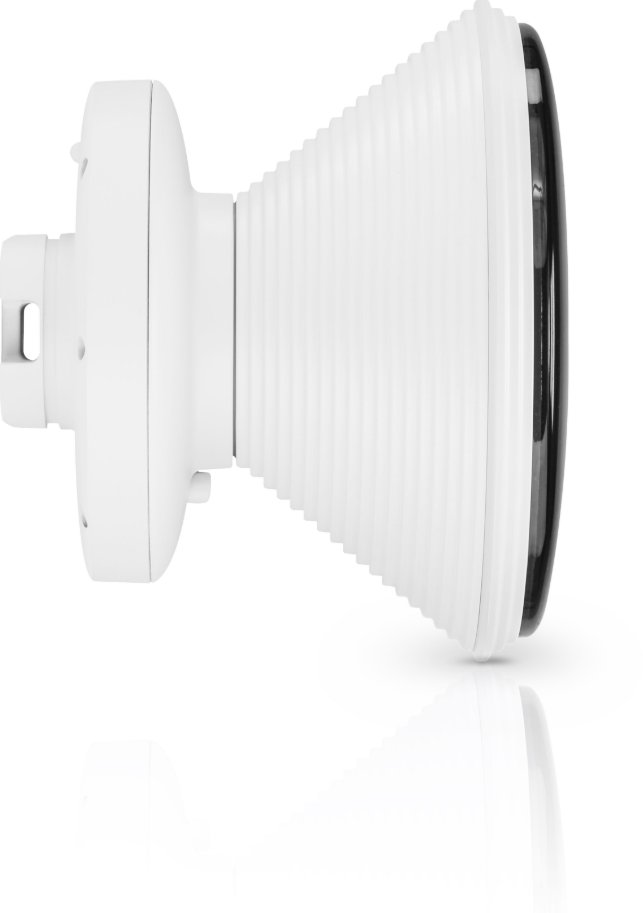

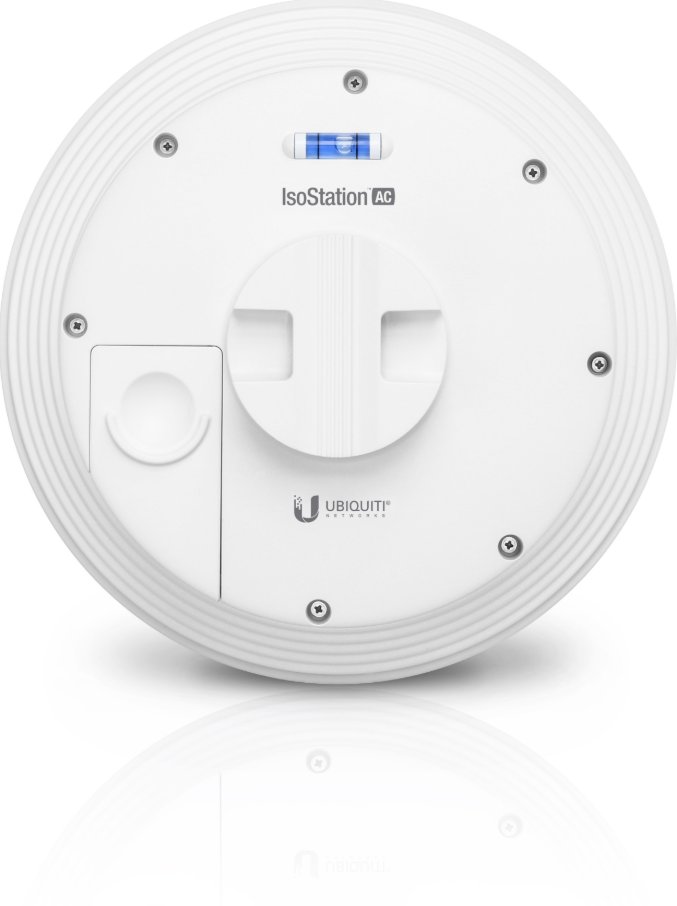

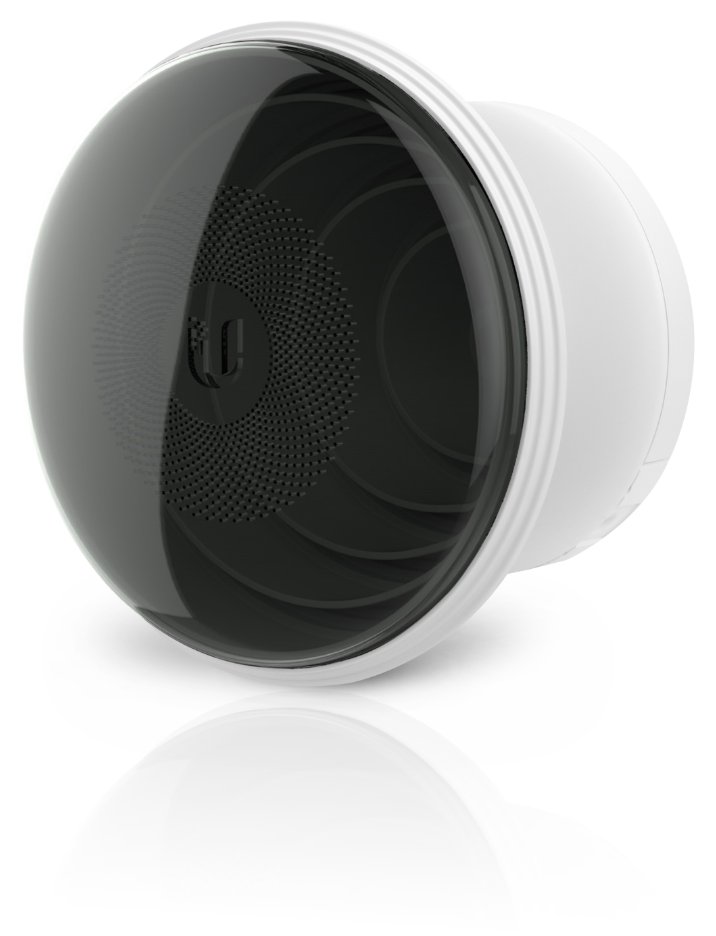

Ubiquiti airMAX AC IsoStation 5AC (450+Mbps)

Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an interchangeable horn antenna.

5 GHz, 10+ km link range

450+ Mbps throughput

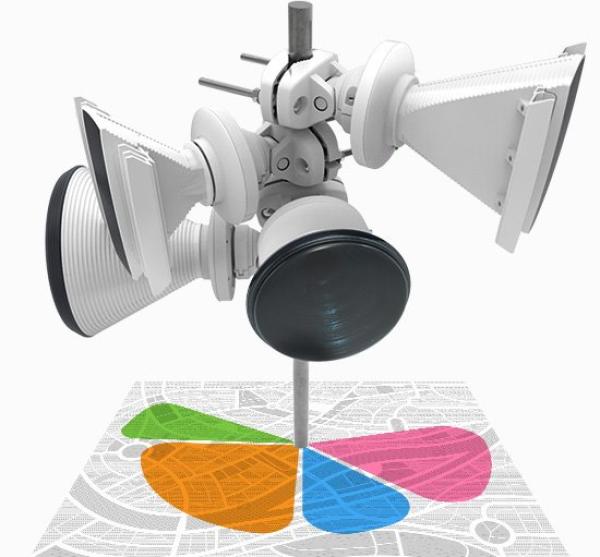

Isolation antenna design rejects RF noise

Dedicated spectral analysis radio

Technical Specifications

Mechanical

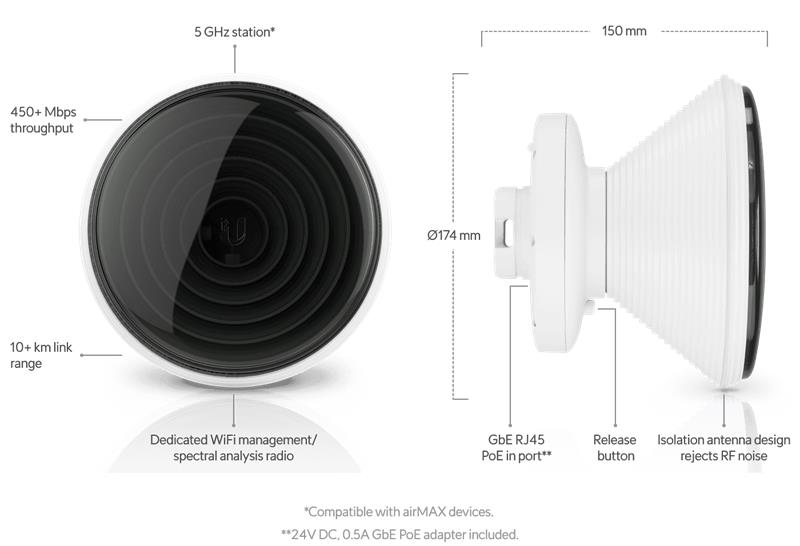

Dimensions Without horn: 131 x 131 x 65 mm (5.2 x 5.2 x 2.6")

With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9")

Weight Without horn: 408.2 g (0.9 lb)

With horn: 725.7 g (1.6 lb)

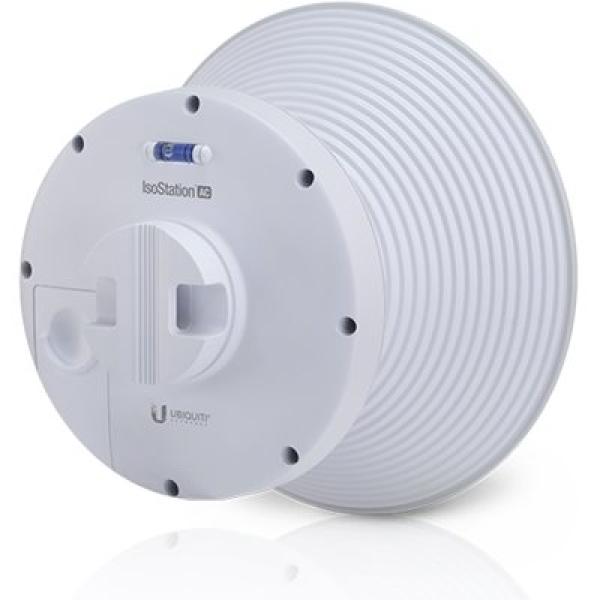

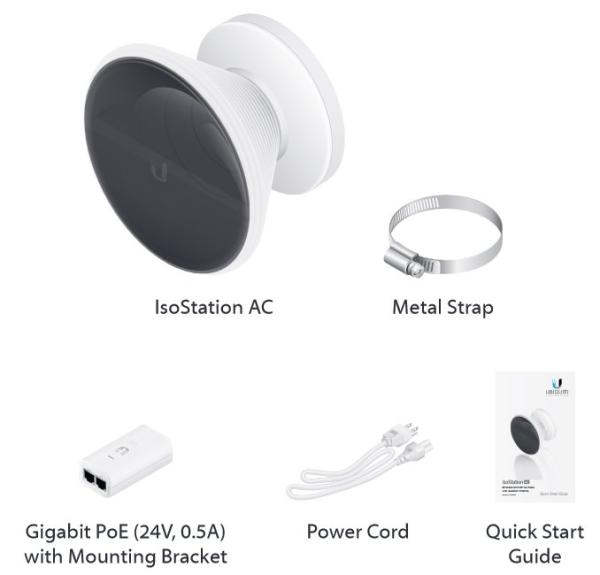

Mounting Pole mount kit (Included)

Wind loading 36N at 200 km/h (8.09 lbf at 125 mph)

Wind survivability 200 km/h (125 mph)

Hardware

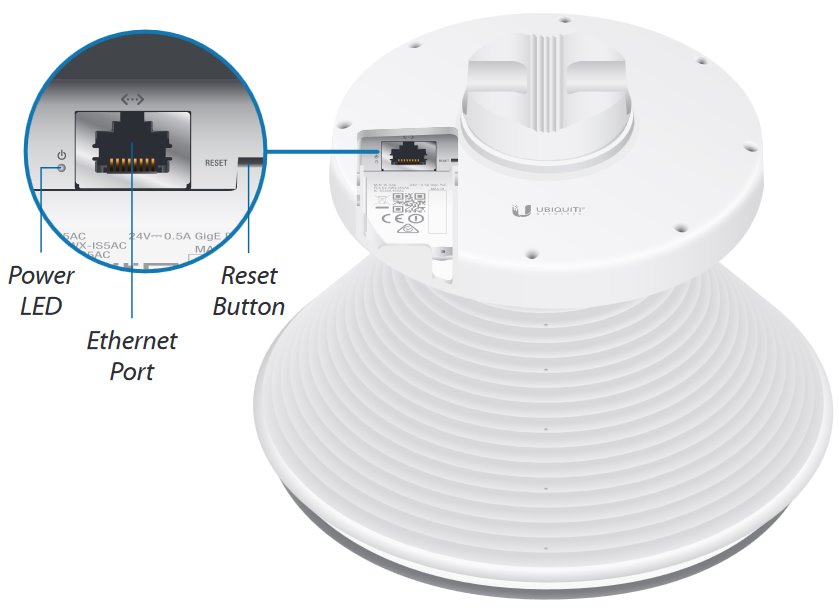

Networking interface (1) GbE RJ45 port

Power method Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply 24V, 0.5A gigabit PoE adapter (Included)

Max. power consumption 8.5W

Supported voltage range 20—27V DC

LED (1) Power

Ambient operating temperature -40 to 70 C (-40 to 158 F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

System

Gain 14 dBi

Beamwidth 45° (Default horn)

Operating Frequency (MHz)

Worldwide 5150-5875 MHz

USA

U-NII-1 5150-5250 MHz

U-NII-2A 5250-5350 MHz

U-NII-2C 5240-5725 MHz

U-NII-3 5725-5850 MHz

Management Radio (MHz)

Worldwide 2412 - 2472 MHz

US/CA 2412 - 2462 MHz
