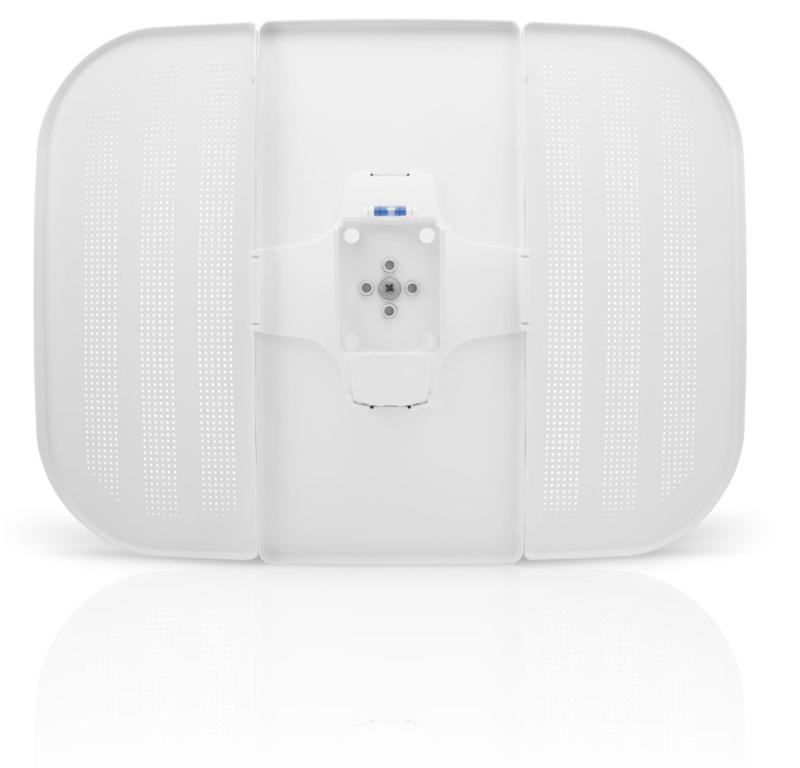

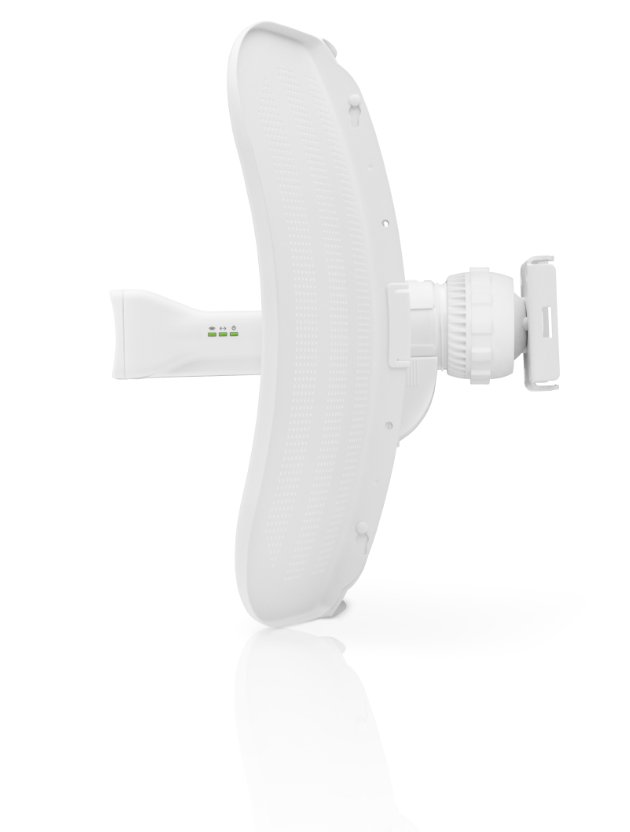

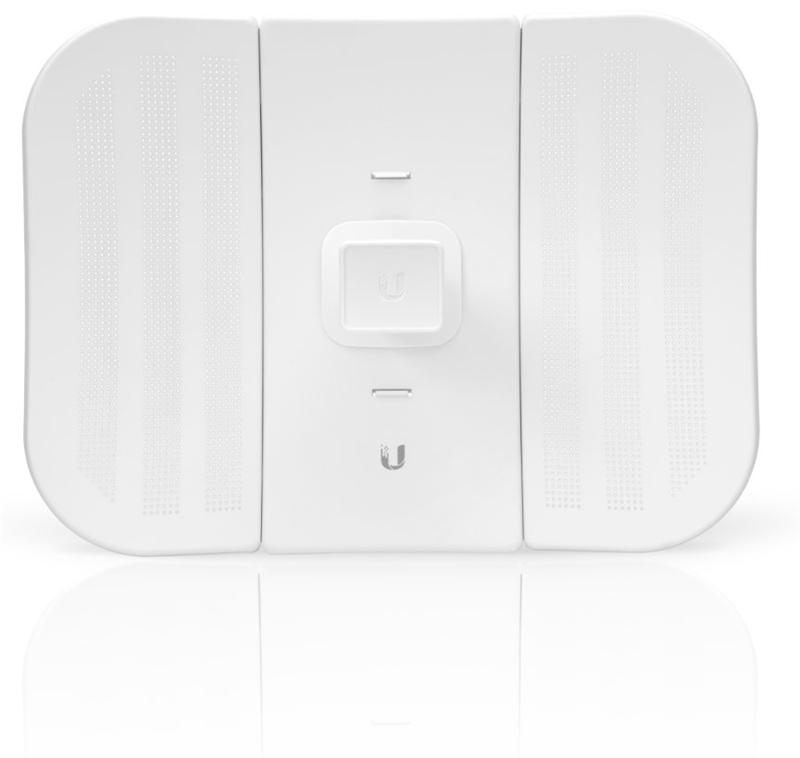

Ubiquiti airMAX LiteBeam M5 5GHz 23dbi

Lightweight and compact, outdoor 5 GHz, 23 dBi bridge.

5 GHz, 15+ km link range

Up to 100 Mbps throughput

Easy to assemble

Technical Specifications

Mechanical

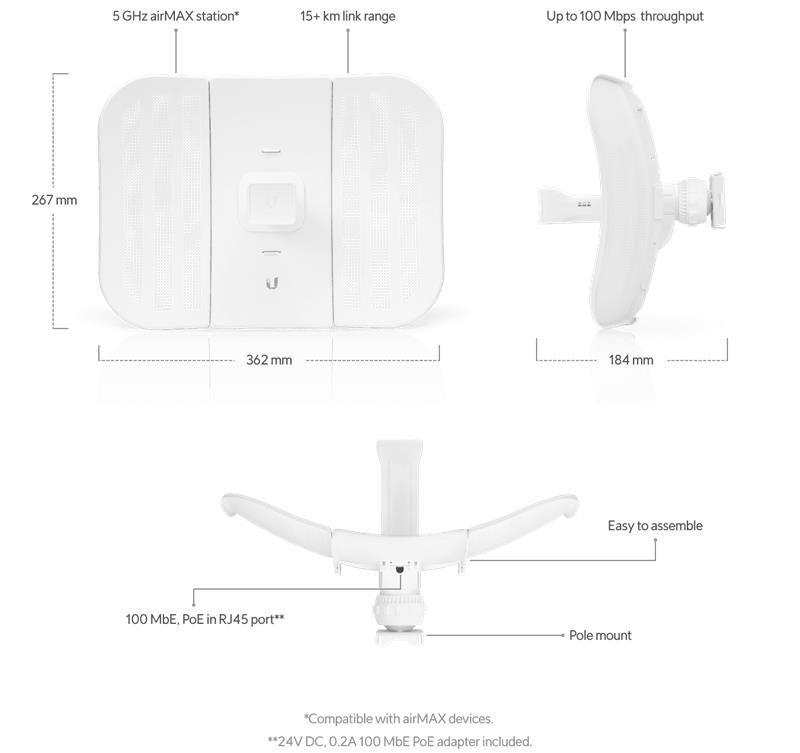

Dimensions 362 x 267 x 184 mm (14.25 x 10.5 x 7.2")

Weight 750 g (1.7 lb)

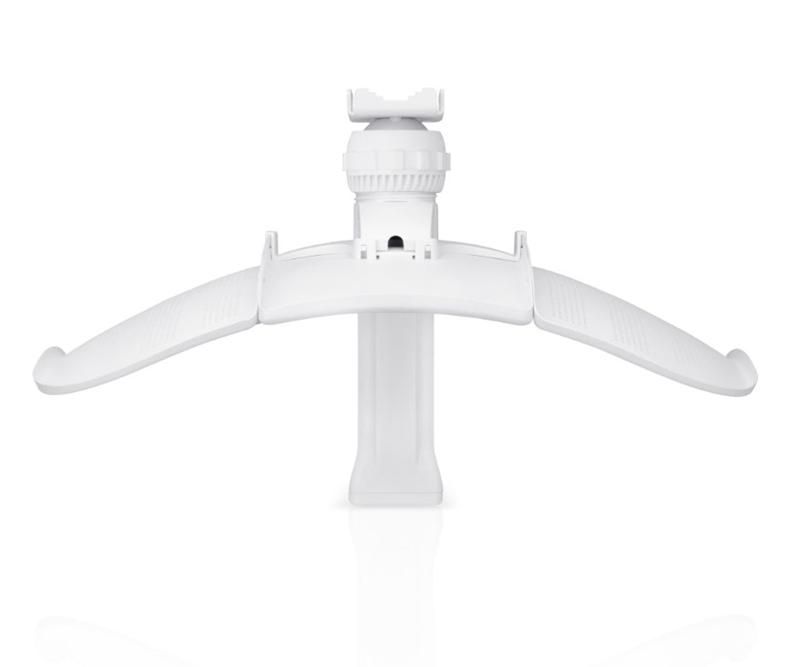

Mounting Pole mounting (Kit included)

Hardware

Networking interface (1) 10/100 MbE RJ45 port

Power method Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply 24V, 0.2A PoE adapter (Included)

Supported voltage range 22–27V DC

Max. power consumption 7W

ESD/EMP protection Air/contact ± 24kV

ETSI specification EN 302 326 DN2

Shock and vibration ETSI300-019-1.4

RoHS compliance Yes

Ambient operating temperature -40 to 70° C (-40 to 158° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications FCC, IC, CE

Software

Operating frequency Worldwide: 5150 - 5875 MHz

USA: 5725 - 5850 MHz

Output power 25 dBm

Gain 23 dBi

Max. VSWR 1.5:1
