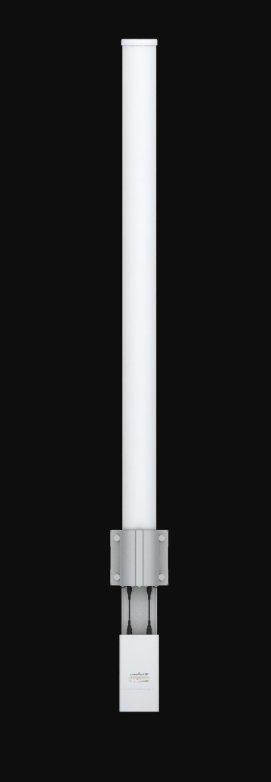

Ubiquiti AirMax všesmerová anténa MIMO 5GHz 13dBi 360 stupňov pre Rocket

5 GHz, 13 dBi carrier-class 2x2 dual-polarity MIMO omnidirectional antenna.

2x2 dual-polarity MIMO

360° coverage

Easy to assemble

Compatible with RocketPrism

Technical Specifications

AMO-5G13

Dimensions 799 x 90 x 65 mm (31.5 x 3.5 x 2.6")

Weight 820 g (1.8 lb)

Frequency Range 5.45 - 5.85 GHz

Gain 13 dBi

Elevation Beamwidth 7°

Max VSWR 1.5:1

Downtilt 2°

Wind Survivability 200 km/h (125 mph)

Wind Loading 84.52 N @ 200 km/h (19 lbf @ 125 mph)

Polarization Dual-Linear

Cross-pol Isolation 25 dB min.

ETSI Specification EN 302 326 DN2

Parametre
