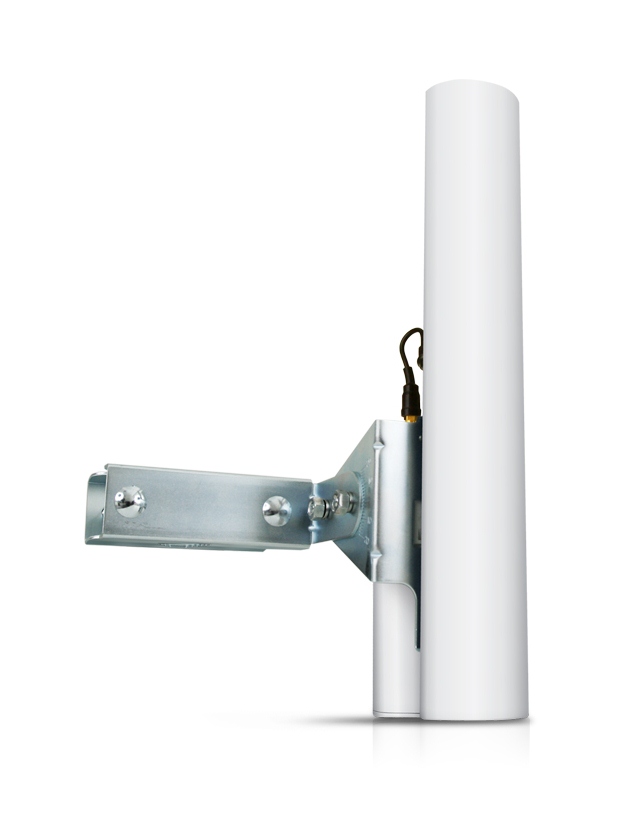

Ubiquiti AirMax sektová anténa MIMO 5GHz 16dBi 120st. pre Rocket

80,01€ 65,05€ bez DPH

Pridať do obľúbených

5 GHz, 120º, 16 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.

2x2 dual-polarity performance

Robust mechanical design for outdoor application use

Compatible with Rocket Prism 5AC

Technical Specifications

AM-5G16-120

Dimensions 367 x 63 x 41 mm (14.4 x 2.5 x 1.6")

Weight 1.1 kg (2.4 lb)

Frequency Range 5.10 - 5.85 GHz

Gain 15.0 - 16.0 dBi

HPOL Beamwidth 137° (6 dB)

VPOL Beamwidth 118° (6 dB)

Electrical Beamwidth 8°

Electrical Downtilt 4°

Max. VSWR 1.5:1

Wind Survivability 200 km/h (125 mph)

Wind Loading 26 N @ 160 km/h (6 lbf @100 mph)

Polarization Dual-Linear

Cross-pol Isolation 22 dB Min.

ETSI Specification EN 302 326 DN2

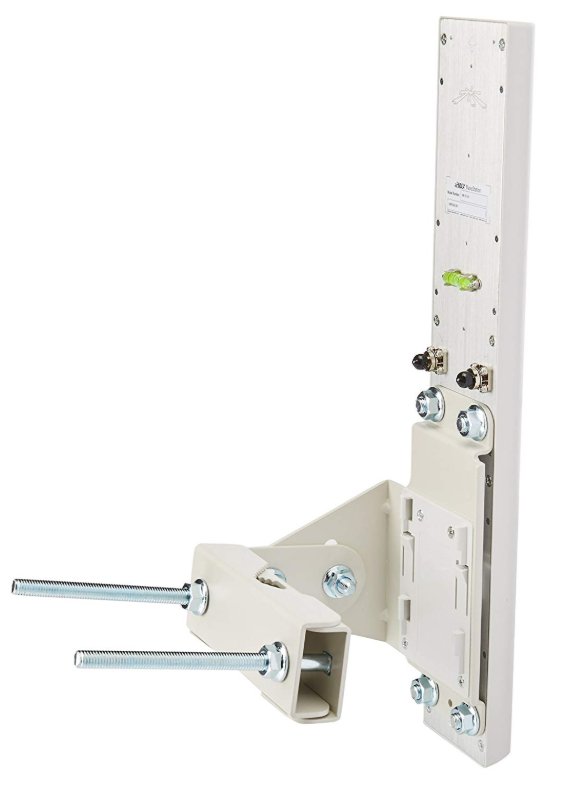

Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
