Ubiquiti AirMax sektová anténa MIMO 5GHz 19dBi 120st. pre Rocket

121,09€ 98,45€ bez DPH

Pridať do obľúbených

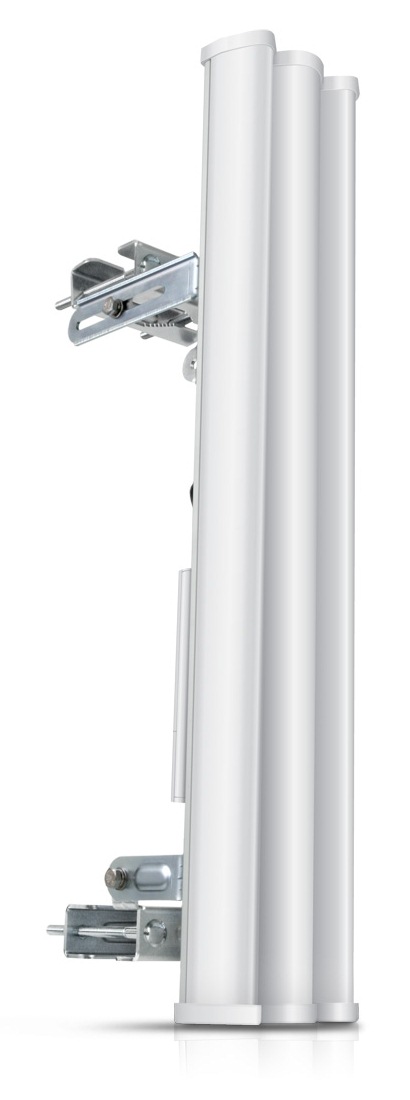

5 GHz, 120º, 19 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.

2x2 dual-polarity performance

Robust mechanical design for outdoor application use

Compatible with Rocket Prism 5AC

Technical Specifications

AM-5G19-120

Dimensions (mm) 700 x 135 x 73 mm (27.6 x 5.3 x 2.9")

Weight 5.9 kg (13 lb)

Frequency Range 5.15 - 5.85 GHz

Gain 18.6 - 19.1 dBi

HPOL Beamwidth 123° (6 dB)

VPOL Beamwidth 123° (6 dB)

Electrical Beamwidth 4°

Electrical Downtilt 2°

Max. VSWR 1.5:1

Wind Survivability 200 km/h (125 mph)

Wind Loading 89 N @ 160 km/h (20 lbf @ 100 mph)

Polarization Dual-Linear

Cross-pol Isolation 28 dB Min.

ETSI Specification EN 302 326 DN2

Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
