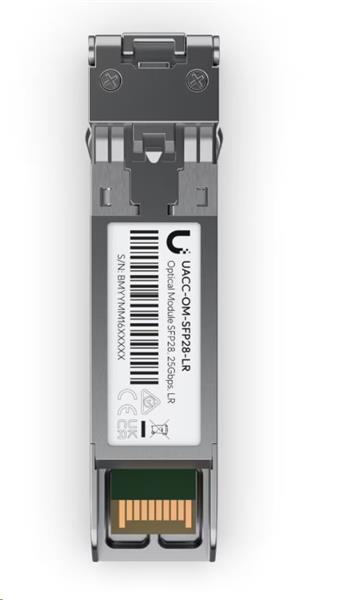

Ubiquiti SFP28 transceiver that supports 25G connections up to 10 km using single-mode fiber with a duplex LC UPC connec
| Kód tovaru: | 2542101 |
|---|---|
| Výrobca: | Ubiquiti |
| PN kód: | UACC-OM-SFP28-LR |
| EAN kód: | |
| Záruka: | 24 mesiacov |
| Dostupnosť: | nie je skladom |
SFP28 transceiver that supports 25G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Max data rate: 25 Gbps
Compatible with SFP28, SFP+, and SFP interfaces
Duplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
*Fiber cable is not included.
Technical Specifications
Overview
Form Factor
SFP28
Connector
Duplex LC UPC
Supported Media
Single-Mode Fiber
TX Wavelength
1310 nm
RX Wavelength
1310 nm
Supported Data Rate
1 / 10 / 25 Gbps
Supported Cable Distance
10 km (6.2 mi)
Max. Power Consumption
1.3 W
Pack Options
Single Unit
Ambient Operating Temperature
0 to 70° C (32 to 158° F)
WARNING
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014
Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Parametre
| Hĺbka jedn. balenie | 1.9 |
| Hmotnosť jedn. balenie | 0.024 |
| Počet kusov jedn. balenie | 1 |
| Rozmer xyz jedn. balenie | 2.6x8x1.9 |
| Šírka jedn. balenie | 2.6 |
| Typ balenia jedn. balenie | Balitelné |
| Výška jedn. balenie | 8 |
| Hmotnosť kartónu | 1.444 |
| Typ obalu kartón | Expedovatelné |
| Počet kusov v kartóne | 50 |
| Rozmer xyz kartónu | 16.5x22x11.6 |
| Typ balenia kartónu | Balitelné |
| Prevedenie switcha | Moduly |
| Optika | Ano |
| Počet SFP portov | 1 |
