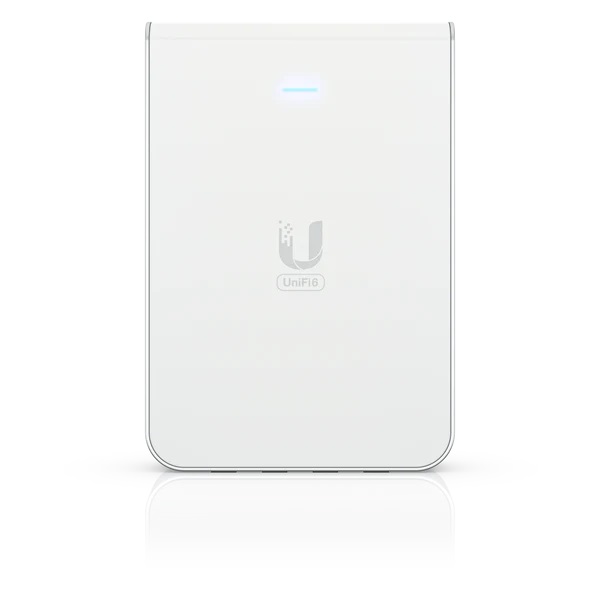

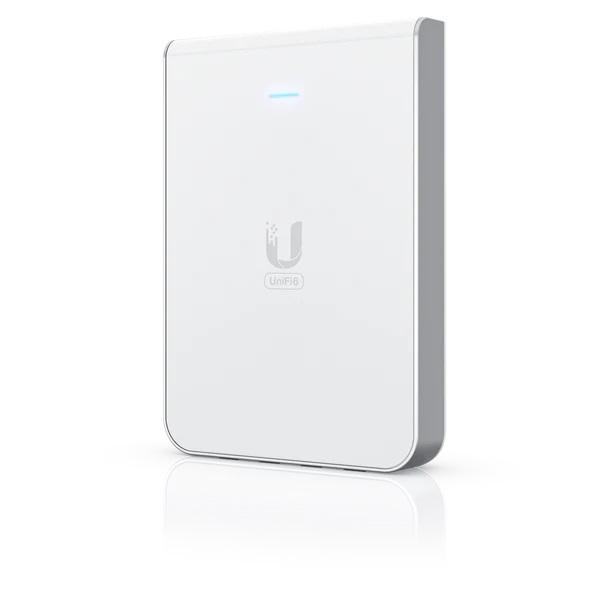

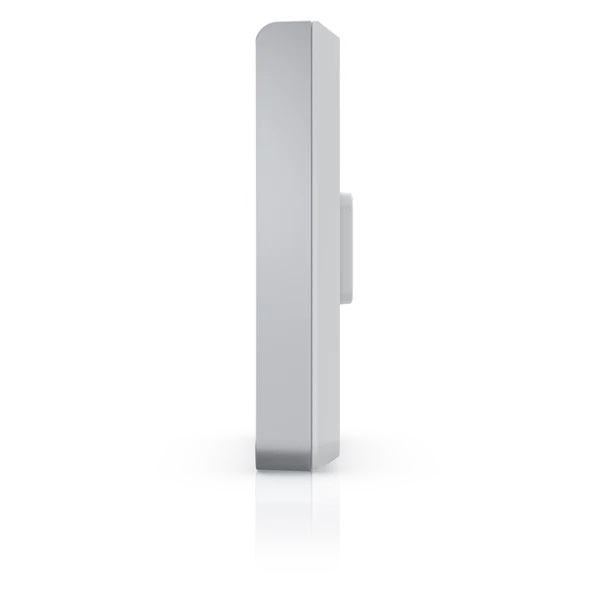

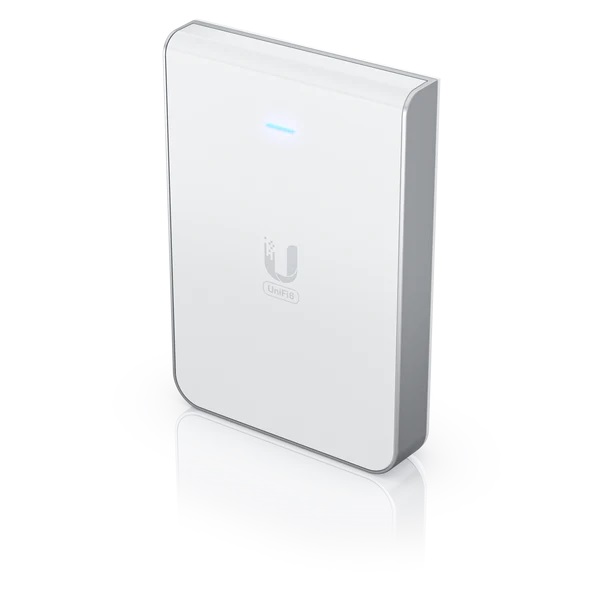

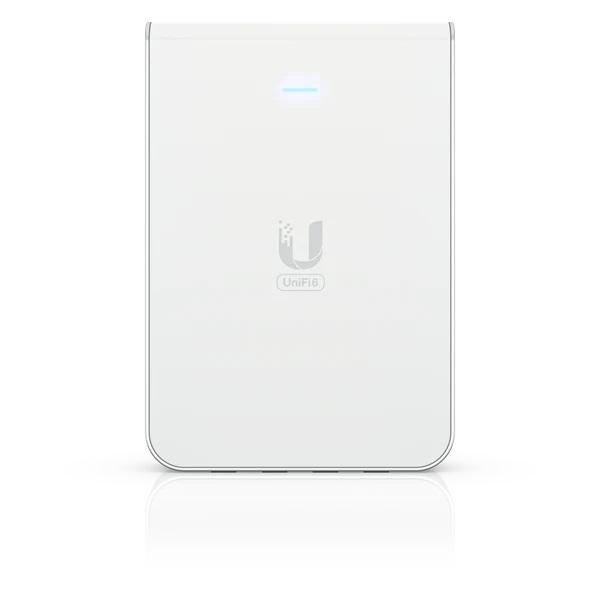

Ubiquiti UniFi AP 6 InWall

Wall-mounted WiFi 6 access point with a built-in PoE switch.

Features:

WiFi 6 support (2.4/5 GHz bands)
5.3 Gbps aggregate throughput rate
(1) GbE RJ45 port (PoE In)

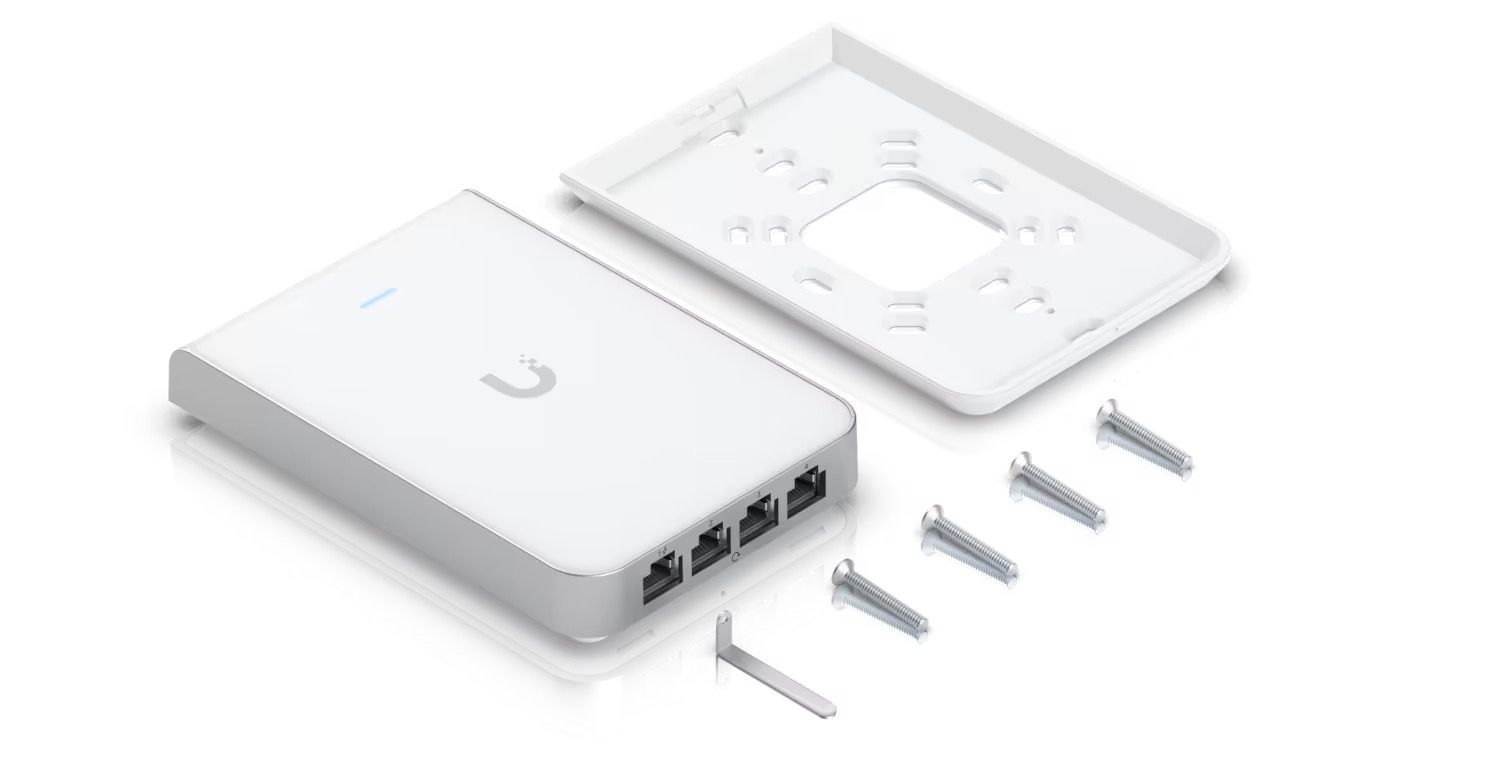

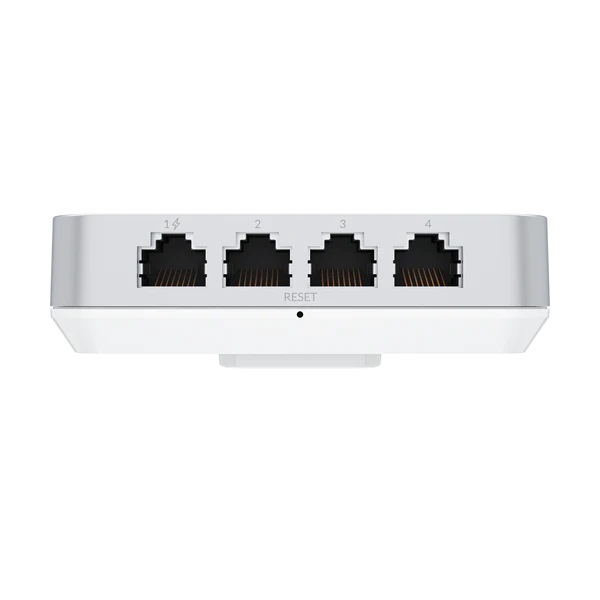

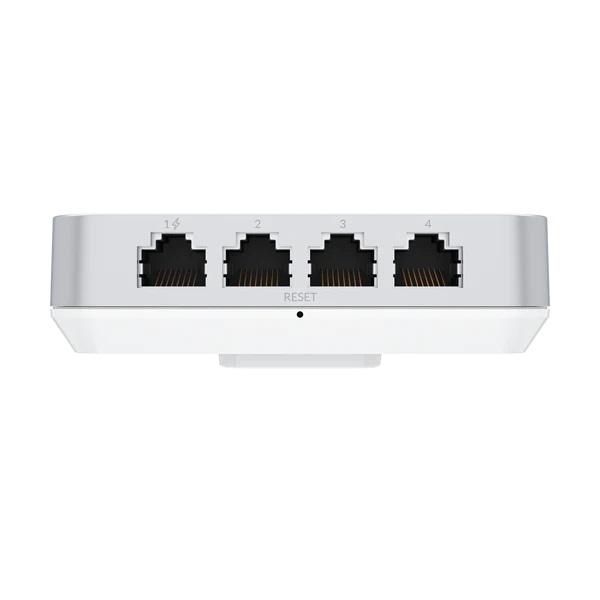

(4) GbE RJ45 ports, including one that supports PoE output*

Mechanical

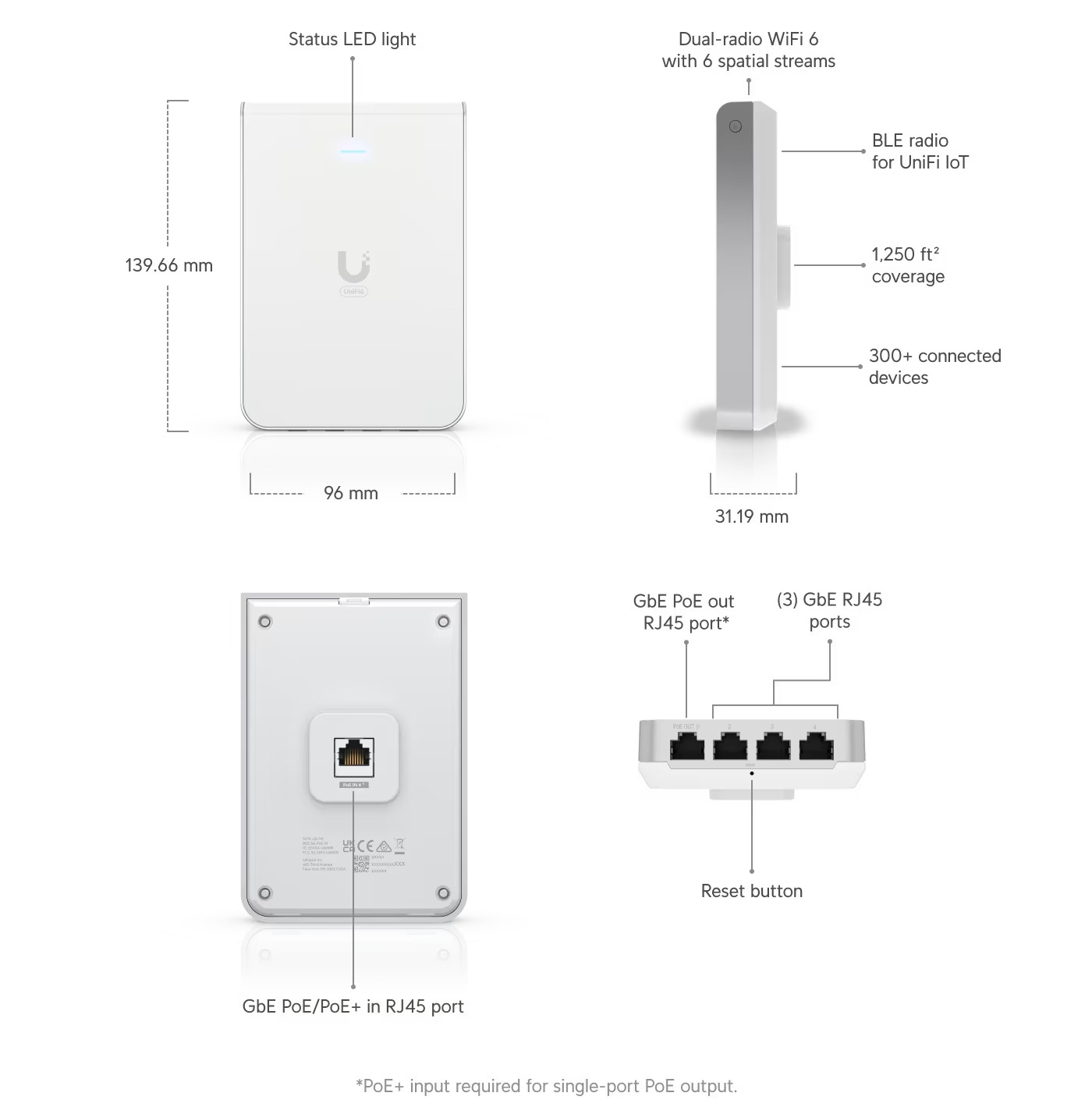

Dimensions

139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")
Weight

460 g (1.01 lb)
Enclosure materials

Plastic, aluminum

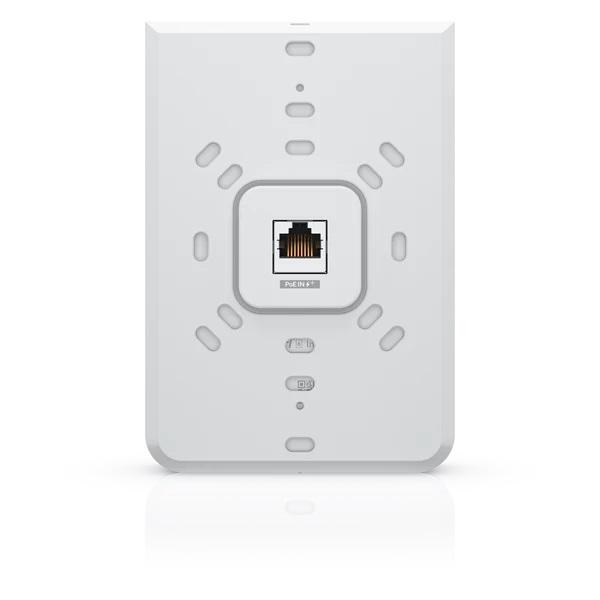

Mount material

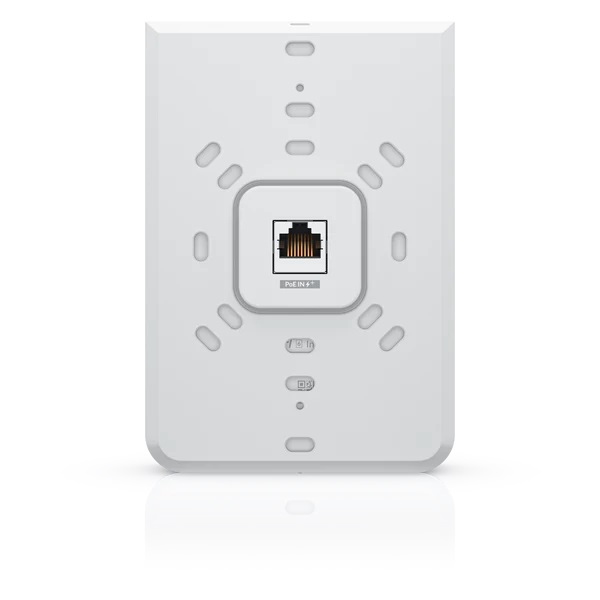

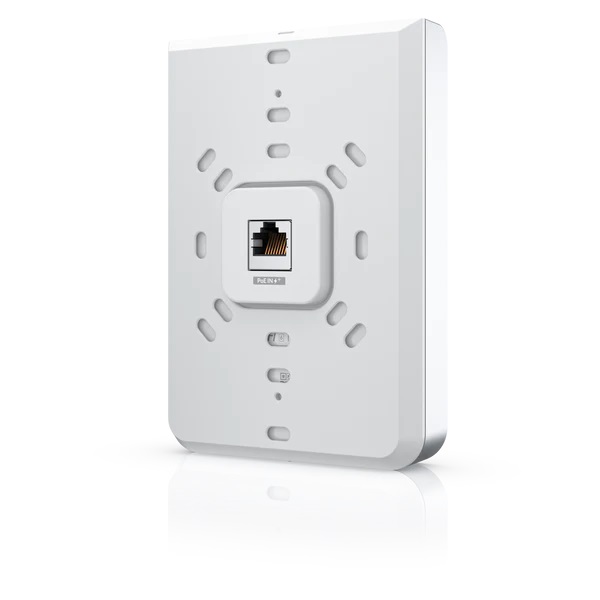

Aluminum
Hardware
Management interfaces

Ethernet

Bluetooth
Networking interfaces

(1) Data-in: 1GbE RJ45 port

(4) Data-out: 1GbE RJ45 ports
PoE interfaces

(1) PoE in (PoE output not used)
(1) PoE out (requires a PoE+ switch)
Button

Factory reset
LED

White/blue
Power method

PoE
Power supply

UniFi PoE switch
48V, 0.5A PoE adapter (optional)
Max. power consumption

Excluding PoE output: 13.5W
Max PoE wattage per port by PSE

15.4W*
*Requires a PoE+ switch
Voltage range PoE mode

44—57V DC
Max. TX power
2.4 GHz 22 dBm
5 GHz 26 dBm
MIMO
2.4 GHz 2 x 2 (UL MU-MIMO)
5 GHz 4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz 573.5 Mbps
5 GHz 4.8 Gbps
Antenna gain
2.4 GHz 5 dBi
5 GHz 5.9 dBi
Operating temperature

-30 to 60° C (-22 to 140° F)
Operating humidity

5 to 95% noncondensing
Certifications

CE, FCC, IC
Software
WiFi standards

802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID

8 per radio
VLAN

802.1Q
Advanced QoS

Per-user rate limiting
Guest traffic isolation

Supported
Concurrent clients

300+
Zero-wait DFS

Yes
Supported Data Rates
802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b

1, 2, 5.5, 11 Mbps
802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)

6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
