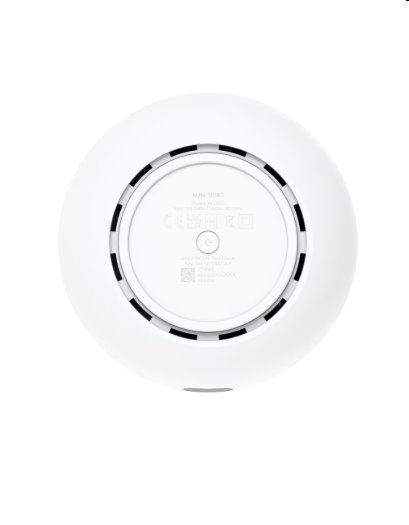

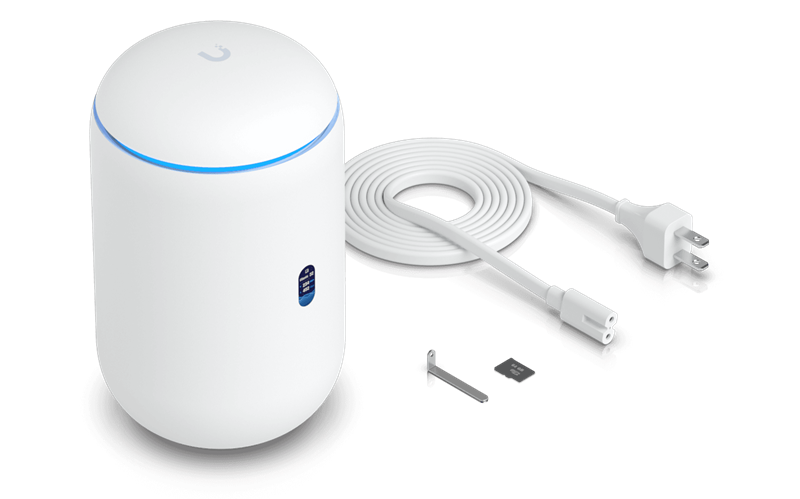

Ubiquiti UniFi Dream Router (WIFI7 + switch POE + controller + 64GB SD card storage)

Domácí desktopový 10Gbps clout router s integrovanou WiFi7, integrovaným PoE switchem, microSD storeage a integrovaný UniFi controler.

Overview

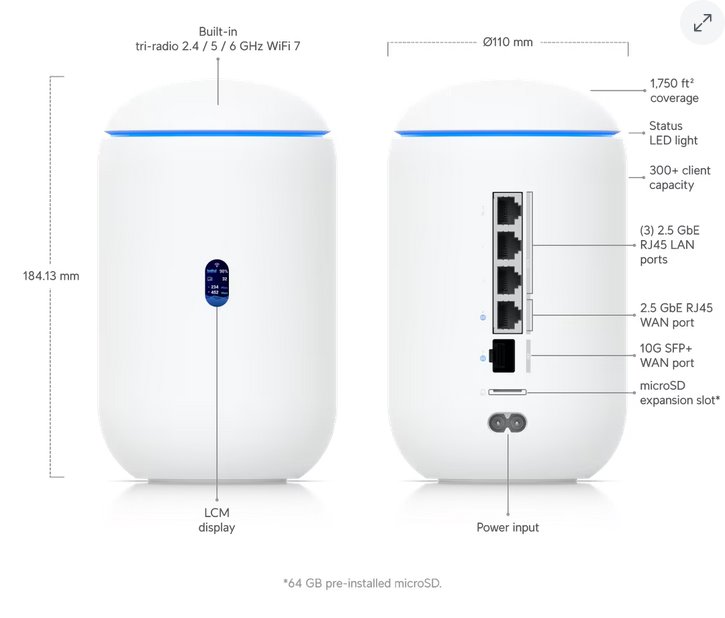

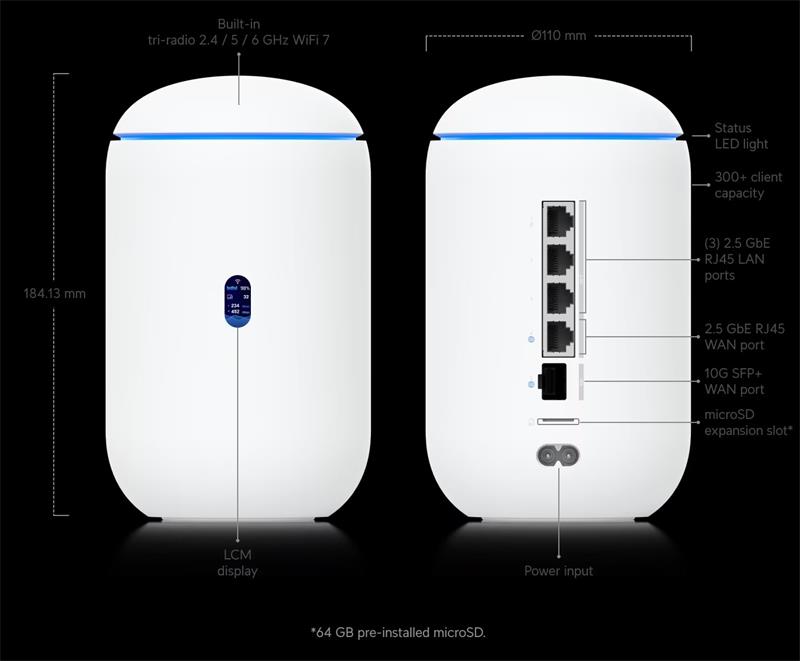

Dimensions   O  110 x 184.1 mm

UniFi Application Suite

           Network  Yes

           Protect  Yes

           Access   Yes

           Talk   Yes

           Connect   Yes

Managed UniFi Devices   30+

Managed Cameras

           (5) HD

           (2) 2K

           (1) 4K

Simultaneous Users Connected   300+

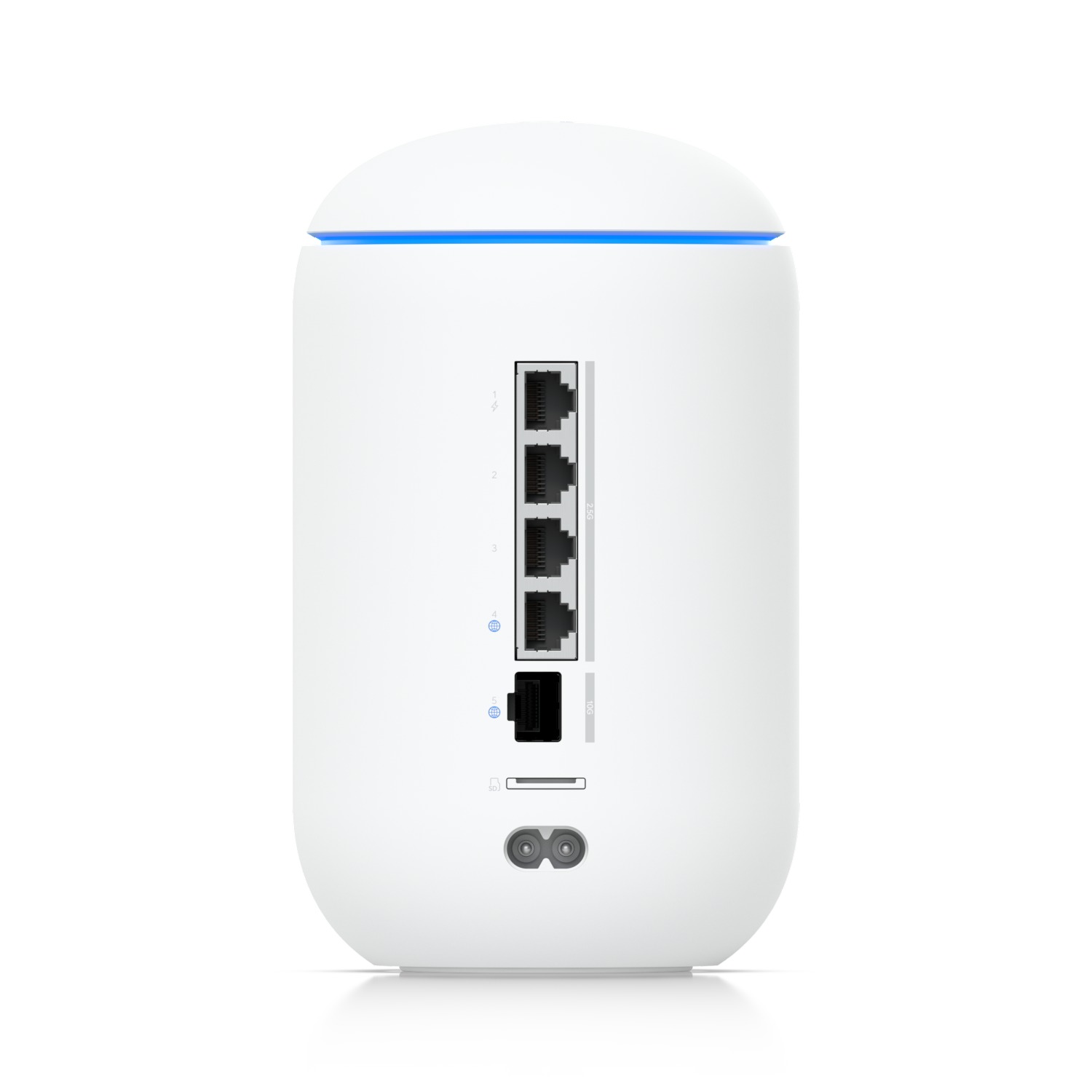

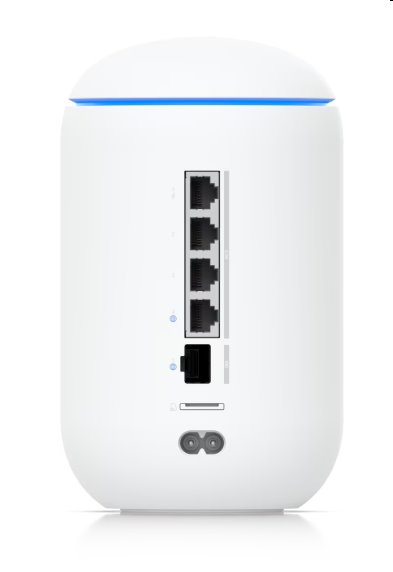

Default WAN Ports   (1) 10G SFP+

                               (1) 2.5 GbE RJ45

LAN Ports                (3) 2.5 GbE RJ45 including (1) PoE

IDS/IPS Throughput  2.3 Gbps

Form Factor  Compact desktop

Coverage Area   160 m² (1,750 ft²)



Security

Stateful Firewall   Yes

Application-Aware Layer 7 Firewall   Yes

DPI & Traffic Identification   Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)   Yes

Content Filtering   Yes

Intrusion Prevention (IPS/IDS)   Yes

Ad Blocking   Yes

IDS/IPS Signatures   20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation   Yes



VPN & SD-WAN

License-Free SD-WAN   Yes

Site-to-Site VPN

Site Magic   Yes

IPsec   Yes

OpenVPN   Yes

VPN Server

Identity Endpoint One-Click VPN   Yes

Teleport Zero-Configuration VPN   Yes

WireGuard   Yes

OpenVPN   Yes

L2TP   Yes

VPN Client

OpenVPN   Yes

WireGuard   Yes



Networking

Multi-WAN Load Balancing   Yes

Dynamic Routing  OSPF   Yes

Advanced QoS   Yes

Multicast DNS (mDNS)   Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)   Yes

Integrated RADIUS Server   Yes

RADIUS over TLS (RadSec)   Yes

Additional Internet Failover with UniFi LTE Backup   Yes

Internet Quality and Outage Reporting   Yes

MAC Address Table Size   2,000

Policy-based WAN and VPN Routing   Yes

Customizable DHCP Server   Yes

IPv6 ISP Support   Yes

IGMP Proxy   Yes

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz   5.7 Gbps

5 GHz   4.3 Gbps

2.4 GHz   688 Mbps

MIMO

6 GHz   2 x 2 (DL/UL MU-MIMO)

5 GHz   2 x 2 (DL/UL MU-MIMO)

2.4 GHz   2 x 2 (DL/UL MU-MIMO)



Antenna Gain

6 GHz   6 dBi

5 GHz   7 dBi

2.4 GHz   5 dBi



Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs  4 per Radio

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)



Hardware

NVR Storage   Pre-installed 64GB microSD for NVR

Expansion Slot   MicroSD Card

PoE Budget   15.4W

Max. PoE Wattage per Port by PSE   PoE  15.4W

Voltage Range PoE Mode   44-57V

Max. Power Consumption   26W (Excluding PoE output)

Power Method   Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply   AC/DC, Internal, 50W

Max. TX Power

6 GHz   24 dBm

5 GHz   26 dBm

2.4 GHz   23 dBm

Supported Voltage Range   100-240V AC

Processor   Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory   3 GB

Weight  1.1 kg (2.4 lb)

Enclosure Material   Polycarbonate

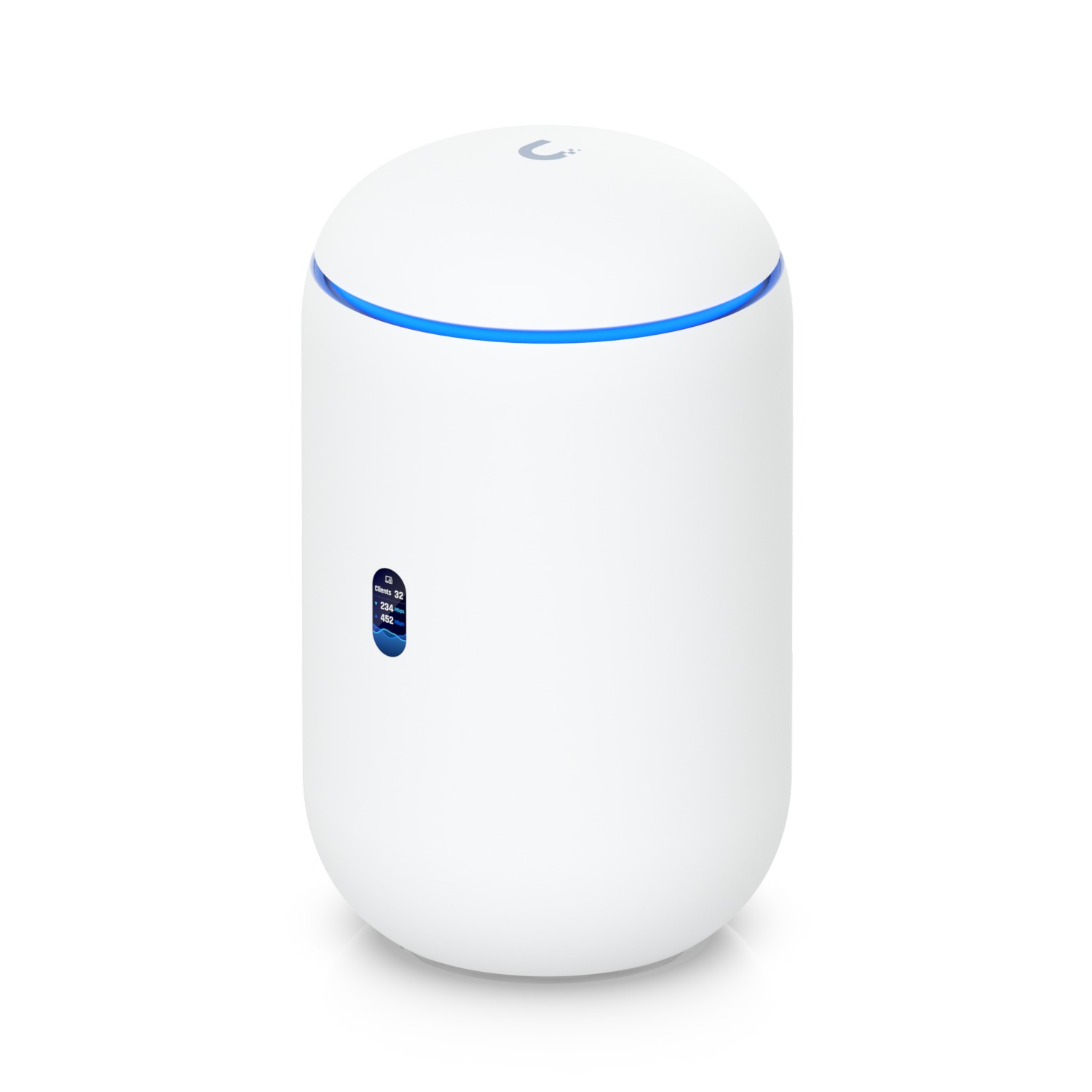

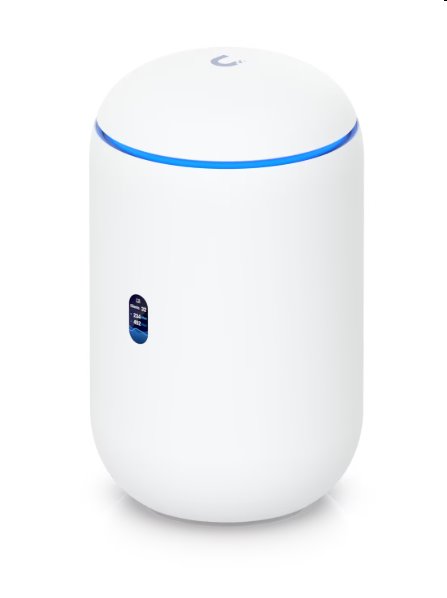

LCM Display   0.96" status display



Management

      Ethernet

      Bluetooth

      LEDs

System   Yes

ESD/EMP Protection    Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature   -10 to 40° C (14 to 104° F)

Ambient Operating Humidity   5 to 95% noncondensing

Certifications    CE, FCC, IC

Button   (1) Factory-reset



Software

VLAN   802.1Q

Guest Traffic Isolation   Yes

Application Requirements   UniFi Network   Version 9.0.108 and later
