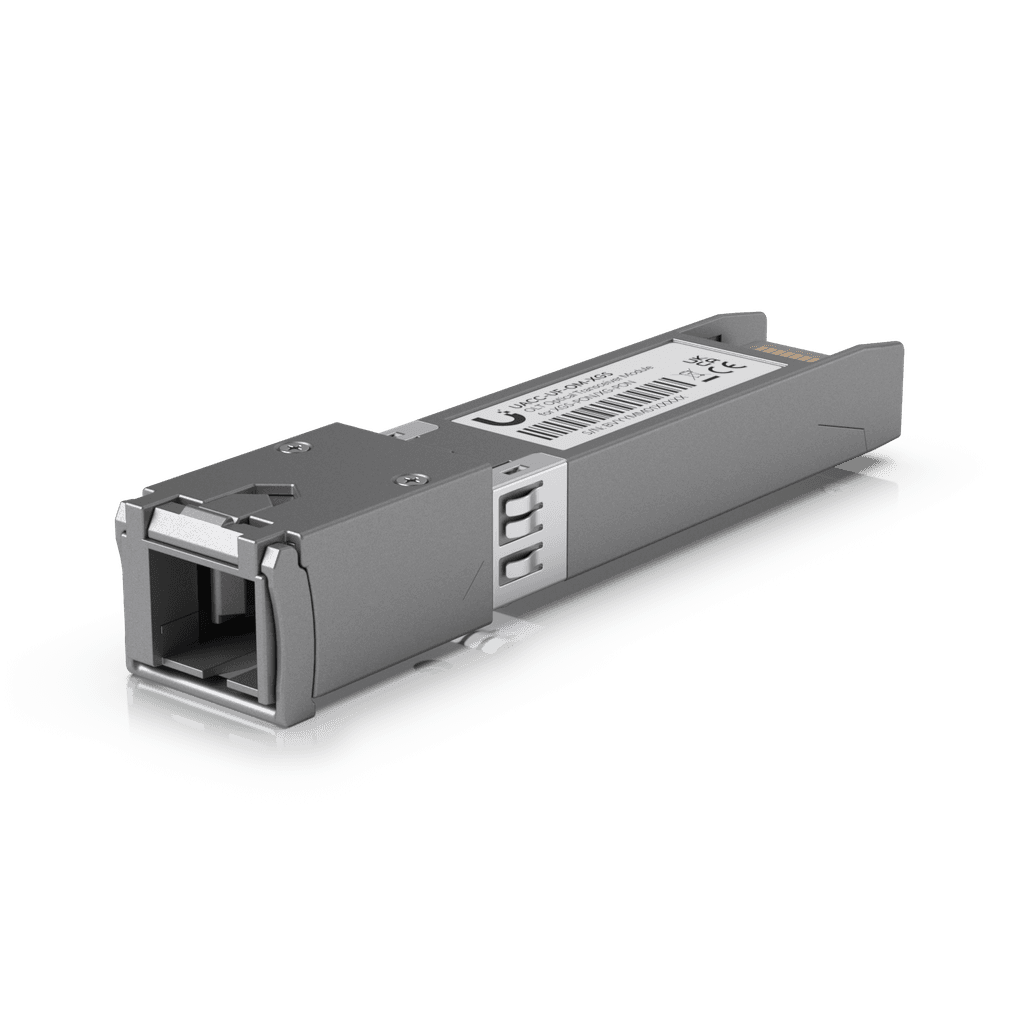

Ubiquiti UFiber Fiber Coexistence WDM Filter

Technical Specifications

UACC-UF-OM-XGS

Supported media Single-mode fiber

Connector type (1) SC/UPC

TX wavelength 1,577nm

RX wavelength 1,270nm

TX power range +4 to +7 dBm

RX power range -9 to -26 dBm

Downlink data rate 10 Gbps

Uplink data rate 10 Gbps (XGS) / 2.5 Gbps (XG)

Max. power consumption 2.6W

Max. cable distance 20 km

Ambient operating temperature 0 to 70° C (32 to 158° F)

Storage temperature -40 to 85° C (-40 to 185° F)

Packaging Single pack

WARNING CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 - Do not look into the ends of the fiber/optical cable or the SFP module while the converters are powered.
