Ubiquiti UniFi Access - G3 Reader Flex čtečka karet s klávesnicí (RFID 13,56MHz/NFC/mobil) bílá

Kód tovaru: | 2605768 |
---|---|
Výrobca: | Ubiquiti |
PN kód: | UA-G3-FLEX-W |
EAN kód: | |
Záruka: | 24 mesiacov |
Dostupnosť: | skladom (23) |
178,93€
145,47€ bez DPH
Základní čtečka G3 generace s číslednou klávesnicí a s funkcí Touch Pass support.
Overview | |

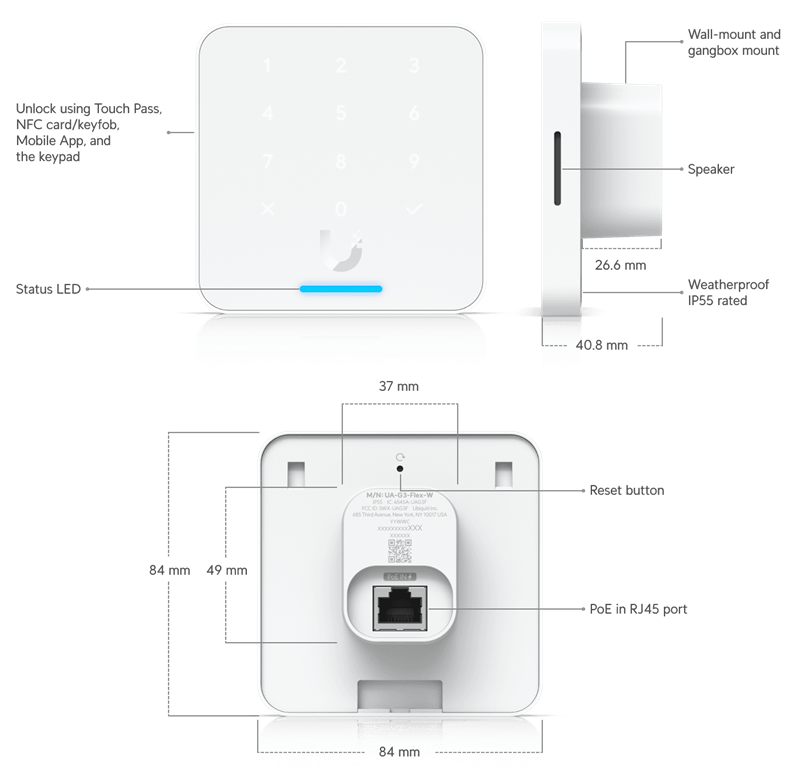

Dimensions | 84 x 84 x 40.8 mm |
NFC Card & Keyfob Access | Yes |
Apple/Google Wallet | Yes |
Mobile Unlock | Yes |
Handwave Request to Exit | Yes |
NDAA Compliant | Yes |
UL 294 Level | Destructive attack: Level I |
Line security: Level I | |
Endurance: Level I | |
Standby power: Level I | |
Weatherproofing | IP55 |
Mechanical | |
Weight | 165 g (5.8 oz) |
Enclosure Material | Polycarbonate, glass |
Mount Material | Polycarbonate, aluminum alloy |

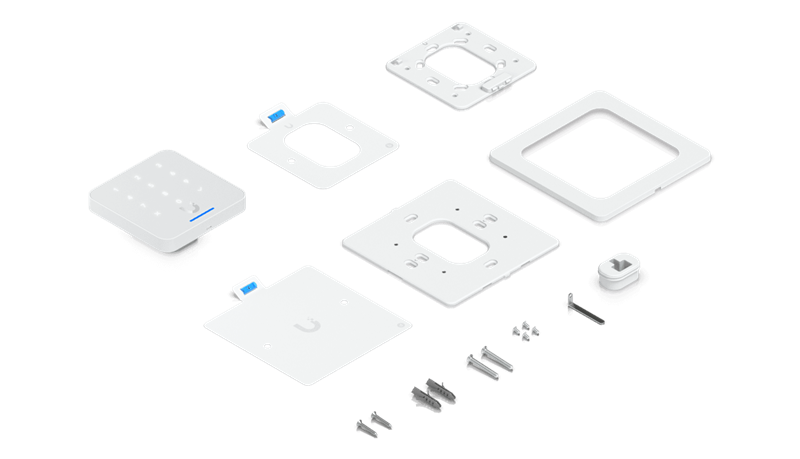

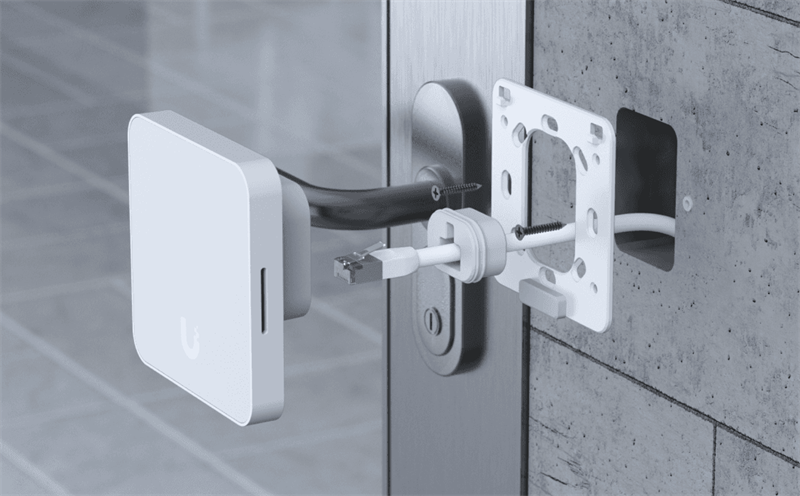

Mounting | Wall (Included) |
Gang-box, junction box (Optional) | |
Hardware | |
Indoor and Outdoor Use | Yes |
Ambient Operating Temperature | -30 to 60° C |
Ambient Operating Humidity | 5 to 90% noncondensing |
Networking Interface | (1) 10/100 MbE RJ45 port |
Connectivity | BLE 4.1 |
NFC | |
Power Method | PoE |
UL 294 Power-limited Class 2 PSU | |
UL 60950-1/62368-1 LPS/PS2 PSU | |
Max. Power Consumption | 5W |
Supported Voltage Range | 44—57V DC |
ESD/EMP Protection | Air: ±15kV, contact: ±8kV |
Sensors | (12) Capacitive buttons |
Speaker | yes |
LEDs | R/G/B/W |
Button | (1) Factory-reset |
NFC Frequency | 13.56 MHz |
NFC Read Range | < 30 mm (1.18'') |
NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) |
MIFARE Classic / MIFARE DESFIRE | |
Sony FeliCa™ (ID only) | |
NFC Forum tags T1T, T2T, T3T, T4T and T5T | |
ECP 2.0 | |
PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. |
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. | |
UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. |
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. | |
CAN/ULC-60839-11-1 Grade | Grade assignment: I |
Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
Document number, and issue date and/or revision level | UA-G3-Flex V01 |
Software | |
Management Application | Access |
Software Information | The software version can be checked at https://unifi.ui.com |
Príslušenstvo
Parametre
Bluetooth | Ano |
Chytrá domácnost kompatibil | Ano |
Kompatibilita | BlueTooth |
Oblast využití | Zabezpečení |
Připojení | Kabelové |
Vlastní systém | Ano |
Počet kusů jedn. balení | 1 |
Typ balení jedn. balení | Balitelné |
Typ balení kartonu | Balitelné |
Rozměr xyz jedn. balení | 14.7x13.8x8.3 |
Hloubka jedn. balení | 8.3 |
Šířka jedn. balení | 14.7 |
Hmotnost jedn. balení | 0.410 |
Hmotnost kartonu | 10.882 |
Počet kusů v kartonu | 24 |
Typ obalu kartón | Expedovatelné |
Výška jedn. balení | 13.8 |
Rozměr xyz kartonu | 35.3x43.4x34.7 |
