Ubiquiti UniFi Access - G3 Reader Pro čtečka karet/interkom s dipslayem (RFID 13,56MHz/NFC/mobil) černá

Profesionální čtečka G3 generace s displayem a s funkcí Touch Pass support.

Overview

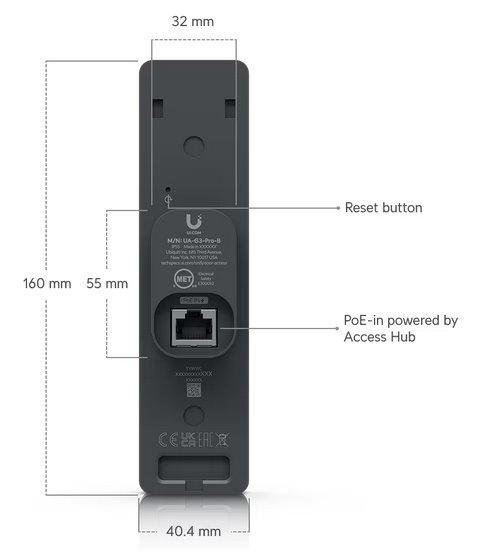

Dimensions 160 x 40.4 x 40.55 mm



Integrated Camera  Yes

NFC Card & Keyfob Access  Yes

PIN Access  Yes

Apple/Google Wallet  Yes

Mobile Unlock  Yes

Two-Way Intercom & Doorbell Access  Yes

NDAA Compliant  Yes

UL 294 Level  Destructive attack: Level I

                     Line security: Level I

                     Endurance: Level I

                     Standby power: Level I

Weatherproofing  IP55



Mechanical

Weight  136 g (4.8 oz)

Enclosure Material  Polycarbonate, glass

Mount Material  Aluminum alloy

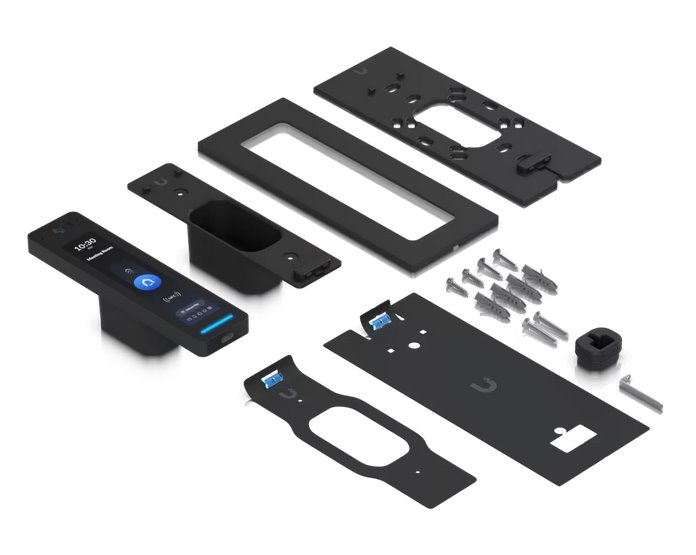

Mounting  Wall, gang-box mount (Included)

                Angle mount, junction box (Optional)



Hardware

Indoor and Outdoor Use  Yes

Ambient Operating Temperature   Device: -30 to 45° C (-22 to 113° F)

                                                 Display: -10 to 45° C (14 to 113° F)

Ambient Operating Humidity  5 to 90% noncondensing

Networking Interface  (1) GbE RJ45 port

Connectivity  BLE 4.2

                    NFC

Power Method  PoE

                       UL 294 Power-limited Class 2 PSU

                       UL 60950-1/62368-1 LPS/PS2 PSU

Max. Power Consumption  6W

Supported Voltage Range  48V DC

ESD/EMP Protection  Air: ±15kV, contact: ±8kV

Sensors  Proximity sensor

Display  120 mm (4.7") diagonal

Touch Screen Technology  Capacitive touch

Display Luminance  480 nits (Typical)

Screen Orientation  Portrait

Resolution  1280 x 286 px

Microphone  Yes

Speaker  Yes

LEDs  R/G/B/W/Amber Learn More

Button  (1) Factory-reset

NFC Frequency  13.56 MHz

NFC Read Range  < 30 mm (1.18'')

NFC Technology  ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)

                          MIFARE Classic / MIFARE DESFIRE

                          Sony FeliCa™ (ID only)

                          NFC Forum tags T1T, T2T, T3T, T4T and T5T

                          ECP 2.0

PoE Cabling Requirements   Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

                                          The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement  Compliance with IEEE 802.3 specifications was not verified as part of UL 294.

                            The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade  Grade assignment: I

Certifications  CE, FCC, IC,UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level  UA-G3-Pro-W/UA-G3-Pro-B, V01



Software

Management Application  Access

Software Information  The software version can be checked at https://unifi.ui.com
