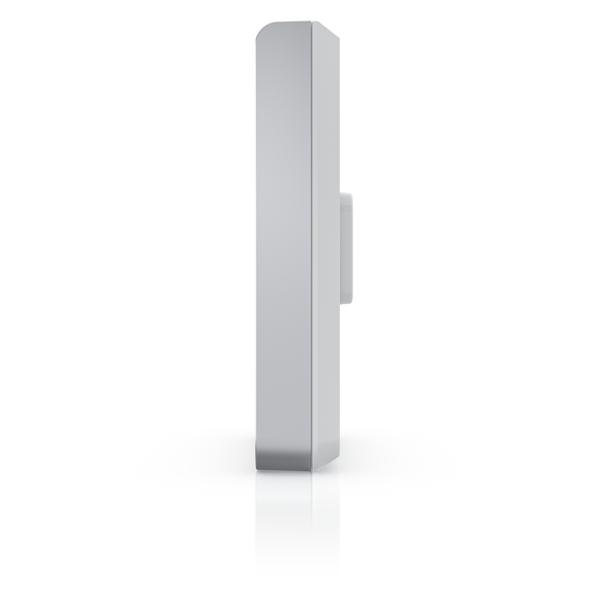

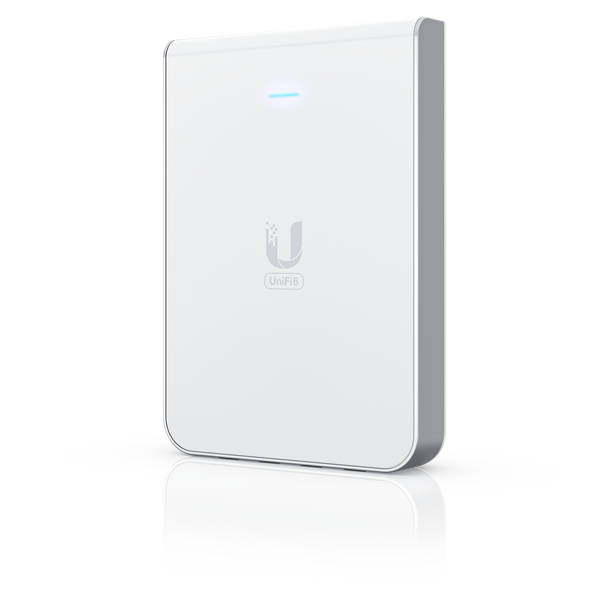

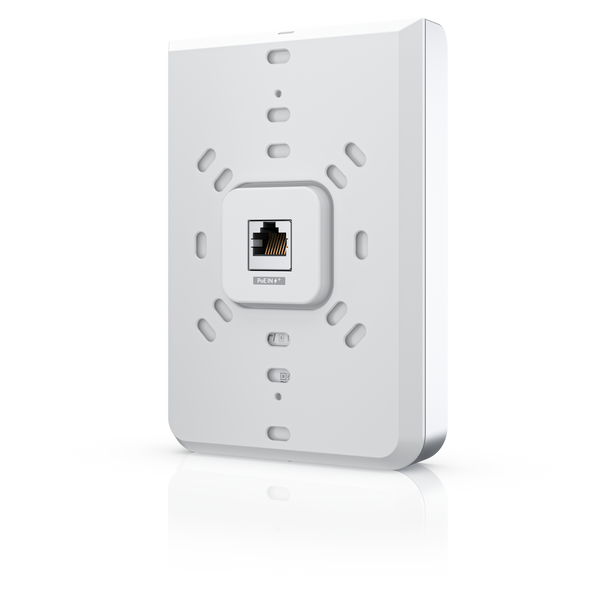

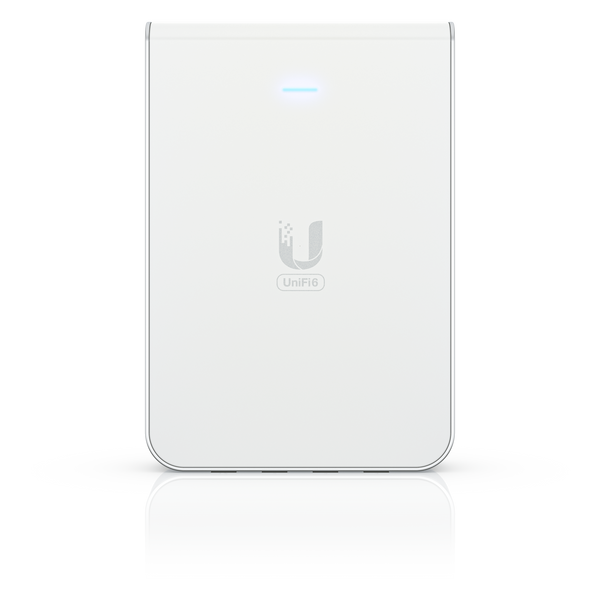

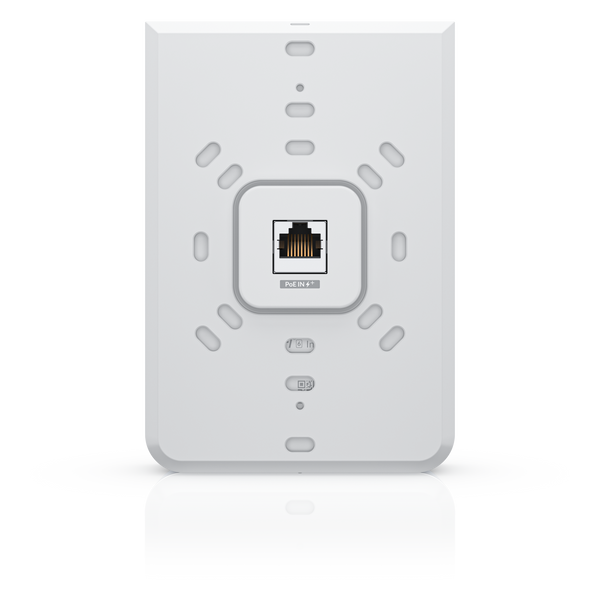

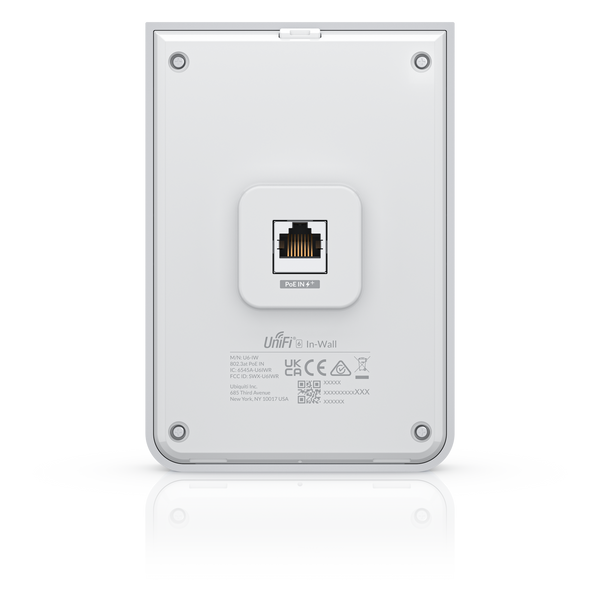

Ubiquiti UniFi AP 6 InWall
Kód tovaru: | 1418320 |
---|---|
Výrobca: | Ubiquiti |
PN kód: | U6-IW |
EAN kód: | 810010073365 |
Záruka: | 24 mesiacov |
Dostupnosť: | skladom (4) |
Wall-mounted WiFi 6 access point with a built-in PoE switch.
Features:
WiFi 6 support (2.4/5 GHz bands)
5.3 Gbps aggregate throughput rate
(1) GbE RJ45 port (PoE In)

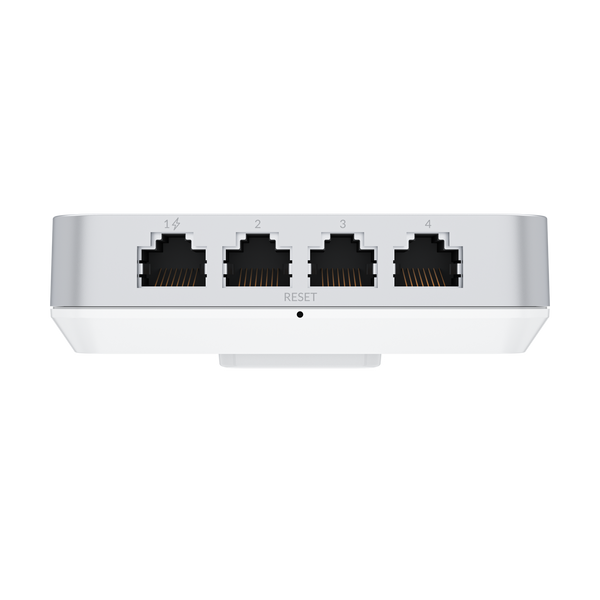

(4) GbE RJ45 ports, including one that supports PoE output*
Mechanical
Dimensions
139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")
Weight
460 g (1.01 lb)
Enclosure materials
Plastic, aluminum
Mount material
Aluminum
Hardware
Management interfaces
Ethernet
Bluetooth
Networking interfaces
(1) Data-in: 1GbE RJ45 port
(4) Data-out: 1GbE RJ45 ports
PoE interfaces
(1) PoE in (PoE output not used)
(1) PoE out (requires a PoE+ switch)
Button
Factory reset
LED
White/blue
Power method
PoE
Power supply
UniFi PoE switch
48V, 0.5A PoE adapter (optional)
Max. power consumption
Excluding PoE output: 13.5W
Max PoE wattage per port by PSE
15.4W*
*Requires a PoE+ switch
Voltage range PoE mode
44—57V DC
Max. TX power
2.4 GHz 22 dBm
5 GHz 26 dBm
MIMO
2.4 GHz 2 x 2 (UL MU-MIMO)
5 GHz 4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz 573.5 Mbps
5 GHz 4.8 Gbps
Antenna gain
2.4 GHz 5 dBi
5 GHz 5.9 dBi
Operating temperature
-30 to 60° C (-22 to 140° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
300+
Zero-wait DFS
Yes
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Príslušenstvo
Parametre
Hmotnost jedn. balení | 0.654 |
Počet kusů jedn. balení | 1 |
Typ balení jedn. balení | Balitelné |
Šířka jedn. balení | 11.6 |
Výška jedn. balení | 16.2 |
Hmotnost kartonu | 13.796 |
Typ obalu kartón | Expedovatelné |
Rozměr xyz kartonu | 52.7x29.6x23.5 |
Počet kusů v kartonu | 20 |
Typ balení kartonu | Balitelné |
Rozměr xyz jedn. balení | 11.6x16.2x4.4 |
Hloubka jedn. balení | 4.4 |
Rychlost LAN max. | 1 Gbps |
Počet LAN portů | 4 |
Rychlost Wi-Fi max. | 4,8 Gbit/s |
Obsahuje switch | Ano |
POE | Ano |
3G/4G/LTE modem | Ne |
Wi-Fi 2,4 GHz | Ano |
Wi-Fi 5 GHz | Ano |
WiFi 2 (802.11a) | Ano |
WiFi 1 (802.11b) | Ano |
WiFi 3 (802.11g) | Ano |
Wi-Fi 4 (802.11n) | Ano |
Wi-Fi 5 (802.11ac) | Ano |
Wi-Fi 6 (802.11ax) | Ano |
Použití (venkovní/vnitřní) | Vnitřní |
Typ zařízení | Acces point/Bridge |
