Ubiquiti UniFi AP 7 Pro MAX WiFi7 (688/8600/5765Mbps)

WiFi 7 AP pro interiérové použití se 8 samostatnými streamy a přidaným vysílacím pásmem 6GHz a zvýšenou datovou propustností

- WiFi 7

- 8 samostatných streamů

- pokrytí 160 m²

- 500+ samostatných připojených klientů

- napájení přes POE+

- 2.5 GbE uplink

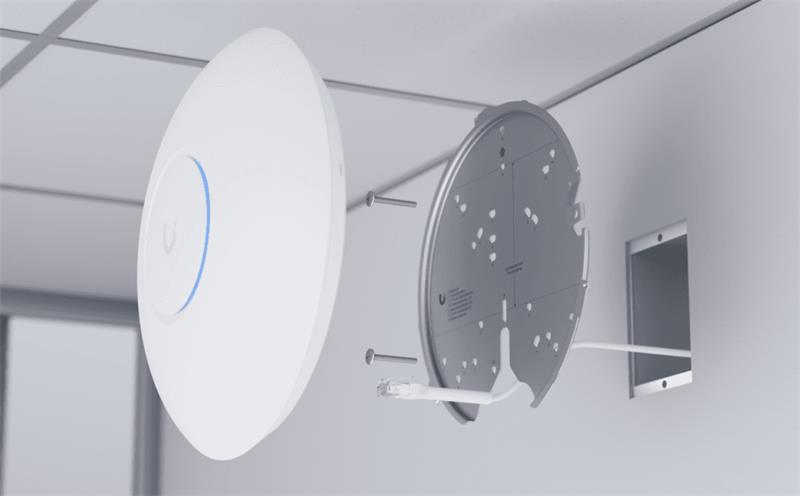

- montážní držák na zeď / strop

Overview

Dimensions   O206 x 46 mm

WiFi Standard   WiFi 7

Spatial Streams   8

Coverage Area   160 m² (1,750 ft²)

Max. Client Count   500+

Uplink   2.5 GbE

Mounting   Ceiling, Wall

(Pro Mount Included)   Power Method

PoE+

Performance

MIMO

6 GHz   2 x 2 (DL/UL MU-MIMO)

5 GHz   4 x 4 (DL/UL MU-MIMO)

2.4 GHz   2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

6 GHz   5.8 Gbps (BW320)

5 GHz   8.6 Gbps (BW240)

2.4 GHz   688 Mbps (BW40)

Antenna Gain

6 GHz   5.9 dBi

5 GHz   6 dBi

2.4 GHz   4 dBi

Max. TX Power

6 GHz   23 dBm

5 GHz   29 dBm

2.4 GHz   23 dBm

Max. BSSIDs   8 per Radio

Supported Data Rates

802.11be (WiFi 7)   6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)    5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6/6E)   7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)   6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n   6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)



Features

Wireless Meshing   Yes

Band Steering   Yes

802.11v BSS Transition Management   Yes

802.11r Fast Roaming   Yes

802.11k Radio Resource Management (RRM)   Yes

Advanced Radio Management   Yes

Real-Time Spectral Analysis   Yes

Passpoint (Hotspot 2.0)   Yes



Captive Hotspot Portal

Custom Branding Landing Page   Yes

Voucher Authentication   Yes

Payment-Based Authentication   Yes

External Portal Server Support   Yes

Password Authentication   Yes

Guest Network Isolation   Yes



Private Pre-Shared Key (PPSK)   Yes

WiFi Speed Limiting   Yes

Client Device Isolation   Yes

WiFi Schedules   Yes

RADIUS over TLS (RadSec)   Yes

Dynamic RADIUS-assigned VLAN   Yes



Hardware

Max. Power Consumption   25W

Supported Voltage Range   44—57V DC

Networking Interface   (1) 1/2.5 GbE RJ45 port

Weight   680 g (1.5 lb)

Management   Ethernet

Enclosure Material   Polycarbonate, aluminum

Mount Material   Stainless steel (SUS304), galvanized steel (SGCC)

LEDs   System   White/Blue

Channel Bandwidth   HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

NDAA Compliant   Yes

Certifications   CE, FCC, IC

Operating Frequency   US/CA:

2400 - 2472 MHz

U-NII-1: 5150 - 5250 MHz

U-NII-2A: 5250 - 5350 MHz

U-NII-2C: 5470 - 5725 MHz

U-NII-3: 5725 - 5850 MHz

U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:

2400 - 2483.5 MHz

5150 - 5725 MHz

5925 - 7125 MHz

Ambient Operating Temperature   -30 to 50° C (-22 to 122° F)

Ambient Operating Humidity   5 to 95% noncondensing



Software

Application Requirements   UniFi Network    Version 8.2.93 and later
