Ubiquiti UniFi Industrial Switch 24x1000Mbps PoE+, L3, (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45

Switch Enterprise 24 PoE
Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.

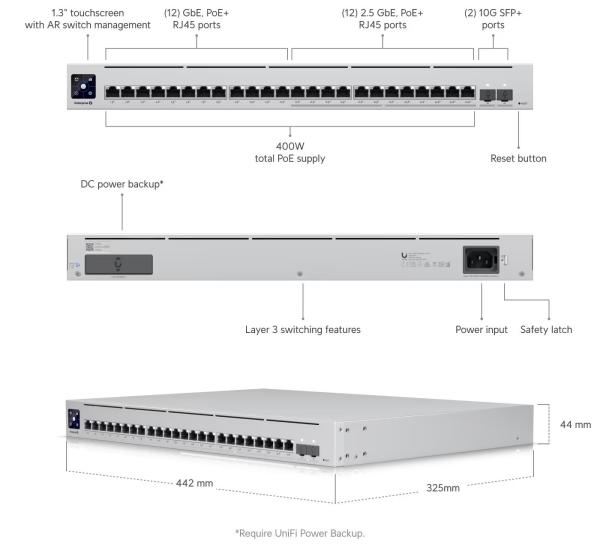

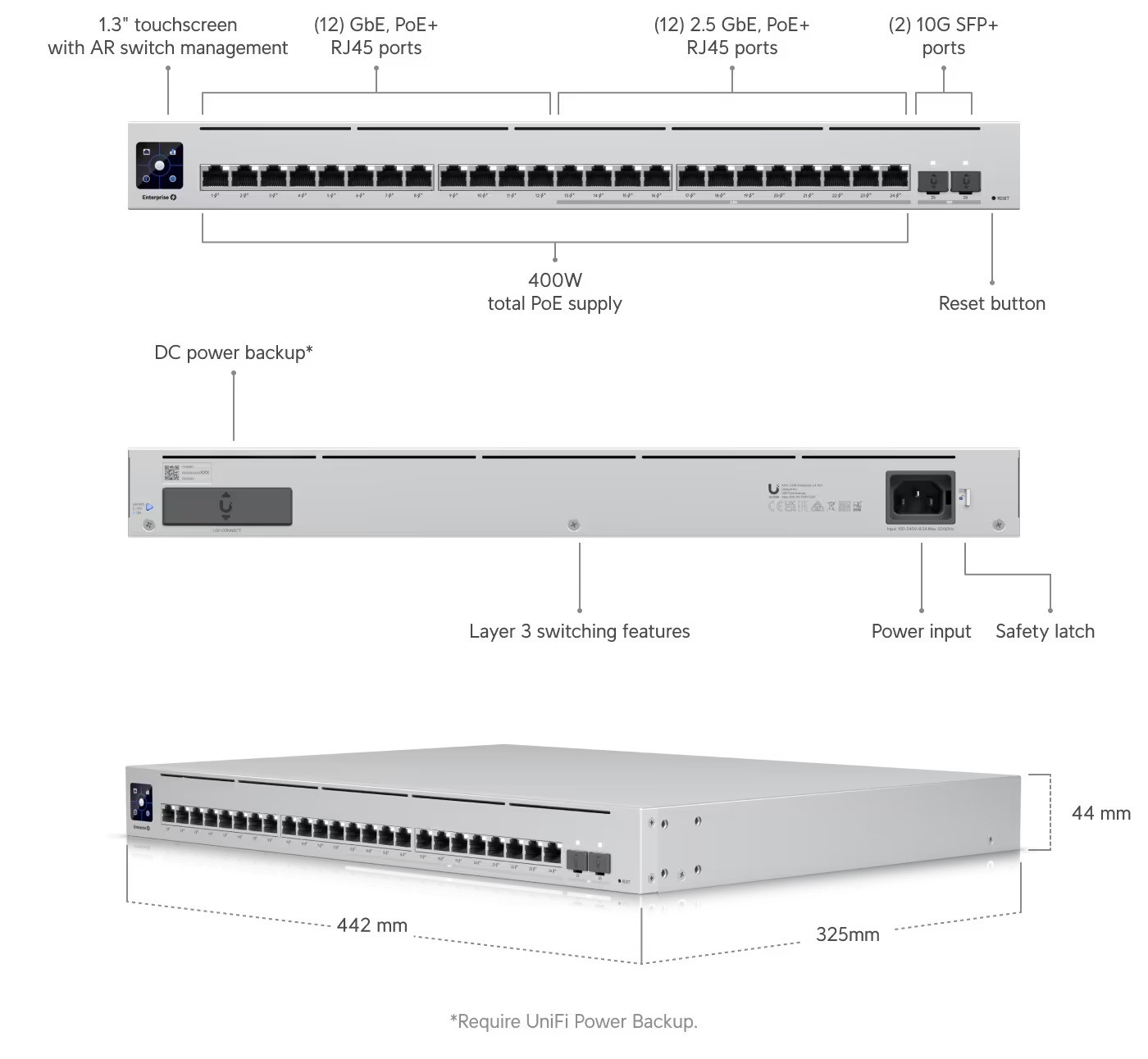

Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure.

Features:

(12) 2.5G 802.3af/at PoE+ RJ45 ports
(12) 1G 802.3af/at PoE+ RJ45 ports
(2) 10G SFP+ ports
400W total PoE capacity
1.3" touchscreen with AR switch management
UniFi SmartPower RPS DC input
Managed with the UniFi Network Application (web and mobile): version: 5.14.12 or higher

Technical Specifications
Mechanical
Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight Without Mount: 5.11 kg (11.27 lb)
With Mount: 5.2 kg (11.46 lb)
Enclosure Materials SGCC Steel
Mount Material SGCC Steel
Hardware
Total Non-Blocking Throughput 62 Gbps
Switching Capacity 124 Gbps
Forwarding Rate 92.25 Mpps
Max. Power Consumption 550W
Power Method (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 550W
Management Interface Ethernet In-Band
Networking Interfaces (12) 10/100/1000 Mbps RJ45 Ethernet
(12) 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces (2) 1/10G SFP+
PoE Interfaces (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 95% Noncondensing
Certifications CE, FCC, IC
LEDs
System (1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet White: Link or Activity
SFP+ White: Link or Activity
