Ubiquiti UniFi switch Gen2 USW-Lite-16-POE 16x1000Mbps POE/POE+ (45W)

Technical Specifications



Mechanical

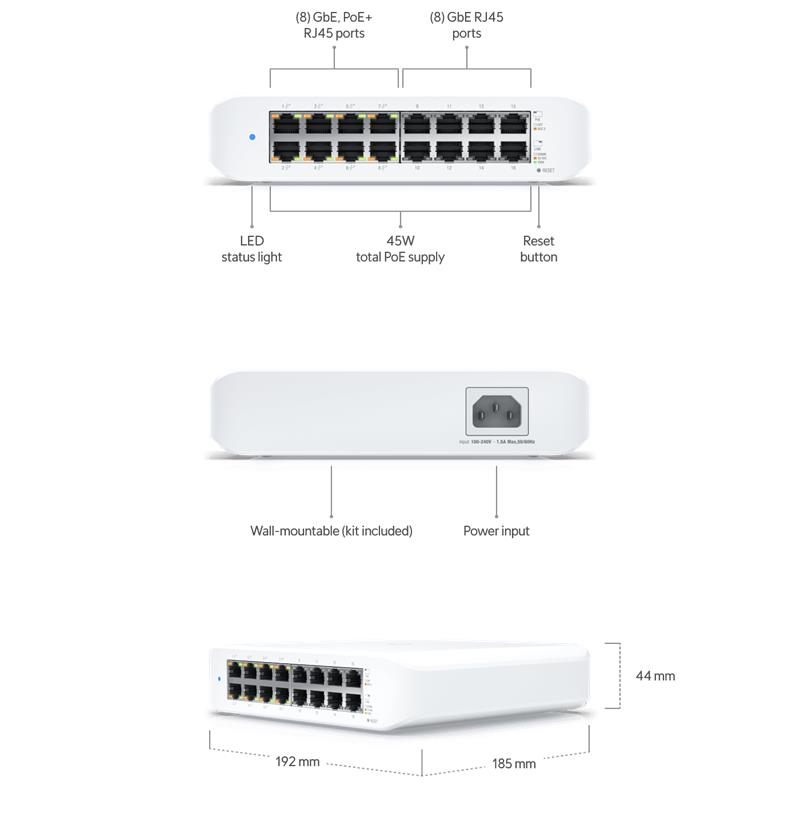

Dimensions 192 x 185 x 44 mm (7.6 x 7.3 x 1.7")

Weight 1.2 kg (2.6 lb)

Enclosure material Polycarbonate



Hardware

Management interface Ethernet In-Band

Networking interface (16) GbE RJ45 ports

PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput 16 Gbps

Switching capacity 32 Gbps

Power method Universal input, 100—240V AC

Power supply AC/DC, internal, 60W

Max. power consumption 15W (Excluding PoE output)

Total available PoE 45W

Max. PoE wattage per port by PSE  PoE+: 30W

Button Factory reset

Ambient operating temperature -15 to 40° C (5 to 104° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC



Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs



LEDs

System Status

Ethernet PoE

Speed/link/activity

PoE Link/activity



Application Requirements

UniFi Network  Version 7.2.94 and later
