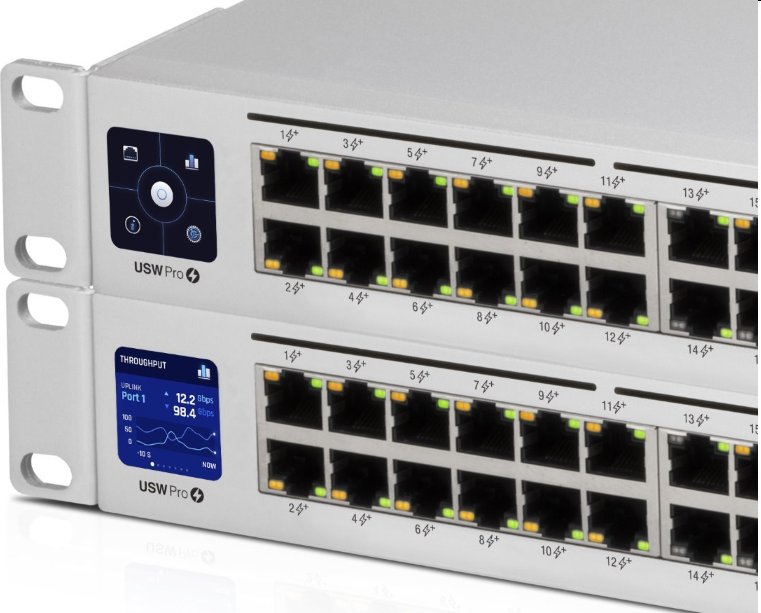

Ubiquiti UniFi switch Gen2 USW-PRO-24-POE Layer3 24x1000Mbps + 2x SFP+ POE++ (400W)


Ubiquiti UniFi switch Gen2 USW-PRO-24-POE Layer3 24x1000Mbps + 2x SFP+ POE++ (400W)
  • Ubiquiti UniFi switch Gen2 USW-PRO-24-POE Layer3 24x1000Mbps + 2x SFP+ POE++ (400W)
  • Ubiquiti UniFi switch Gen2 USW-PRO-24-POE Layer3 24x1000Mbps + 2x SFP+ POE++ (400W)
  • Ubiquiti UniFi switch Gen2 USW-PRO-24-POE Layer3 24x1000Mbps + 2x SFP+ POE++ (400W)
  • Ubiquiti UniFi switch Gen2 USW-PRO-24-POE Layer3 24x1000Mbps + 2x SFP+ POE++ (400W)
Kód tovaru:2442097
Výrobca:Ubiquiti
PN kód:USW-PRO-24-POE
EAN kód:817882027649
Záruka: 24 mesiacov
Dostupnosť:

skladom (7)

675,42€ 549,12€ bez DPH
Pridať do obľúbených

Technical Specifications





Mechanical

Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")

Weight Without mounting brackets: 4.3 kg (9.5 lb)

With mounting brackets: 4.4 kg (9.7 lb)

Enclosure material SGCC steel





Hardware

Management interface Ethernet In-Band

Networking interface (24) GbE RJ45 ports

(2) 1/10G SFP+ ports

PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)

(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput 44 Gbps

Switching capacity 88 Gbps

Forwarding rate 65.472 Mpps

Power method (1) Universal input, 100—240V AC, 50/60 Hz

(1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A

Power supply AC/DC, internal, 450W

Supported voltage range 100—240V AC

Max. power consumption 50W (Excluding PoE output)

Total available PoE 400W

Max. PoE wattage per port by PSE  PoE+: 32W

PoE++: 64W

Voltage range PoE mode  PoE: 44—57V

PoE+: 50—57V

ESD/EMP protection Air: ± 16kV, contact: ± 12kV

LCM display  (1) 1.3" touchscreen

Button Factory reset

Shock and vibration ETSI300-019-1.4 Standard

Ambient operating temperature -5 to 40° C (23 to 104° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC





Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

Layer 3 features

DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs





LEDs

System Status

Ethernet PoE

Speed/link/activity

SFP+ Link/activity

RPS Status





Application Requirements

UniFi Network  Version 5.10.5 and later
