Ubiquiti UniFi switch Gen2 USW-Pro-Aggregation 28x10G SFP+ 4x25G SFP28 rack

Kód tovaru:	2439936
Výrobca:	Ubiquiti
PN kód:	USW-Pro-Aggregation
EAN kód:	810010072603
Záruka:	24 mesiacov
Dostupnosť:	skladom (3)

817,02€ 664,24€ bez DPH

Pridať do obľúbených

Technical Specifications

Mechanical

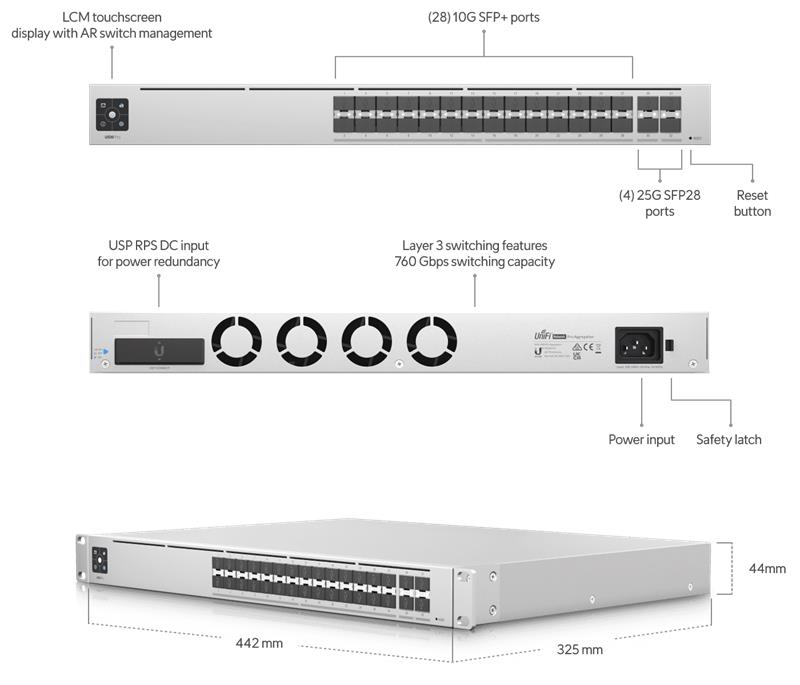

Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

Weight Without mounting brackets: 4.6 kg (10.1 lb)

With mounting brackets: 4.7 kg (10.4 lb)

Enclosure material SGCC steel

Hardware

Management interface Ethernet In-Band

Networking interface (28) 1/10G SFP+ ports

(4) 1/10/25G SFP28 ports*

*Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.

Total non-blocking throughput 380 Gbps

Switching capacity 760 Gbps

Forwarding rate 565.44 Mpps

Power method (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz

(1) USP RPS DC input, 11.5V DC, 8.7A

Power supply AC/DC, internal, 100W

Supported voltage range 100—240V AC

Max. power consumption 100W

ESD/EMP protection Air: ± 16kV, contact: ± 12kV

Services SMB Layer 3 10/25 G Fiber switch

LCM display (1) 1.3" LCM color touchscreen

Ambient operating temperature -5 to 40° C (23 to 104° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC

Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

Layer 3 features

DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

LEDs

System Status

SFP28/SFP+ Link/activity

Application Requirements

UniFi Network Version 6.1.25 and later

Príslušenstvo

Parametre

Typ balení jedn. balení	Balitelné
Šířka jedn. balení	54.3
Počet kusů jedn. balení	1
Hmotnost jedn. balení	5.994
Rozměr xyz jedn. balení	54.3x12.6x46.2
Počet kusů v kartonu	2
Rozměr xyz kartonu	56.1x27.1x49.6
Typ obalu kartón	Expedovatelné
Hmotnost kartonu	13.082
Typ balení kartonu	Balitelné
Výška jedn. balení	12.6
Hloubka jedn. balení	46.2
Provedení switche	Do racku
Konektor HDMI	Ne
Optika	Ano
Konektor DisplayPort	Ne
Obsahuje switch	Ano
POE	Ne
Management	Managed switch
HDMI (počet)	0
DP (počet)	0 ks
Počet SFP+ portů	28
DP/mini DP (počet)	0
PoE	Ne
PoE In standard	Nepodporuje
PoE Out standard	Nepodporuje
PoE power budget (W)	Nevztahuje se
