Ubiquiti UniFi switch Gen2 USW-PRO-MAX-24-POE Layer3 16x 1Gbps 8x 2,5Gbps + 2x SFP+ POE++ (400W)

Kód tovaru:	2661248
Výrobca:	Ubiquiti
PN kód:	USW-PRO-MAX-24-POE
EAN kód:	810084692714
Záruka:	24 mesiacov
Dostupnosť:	skladom (6)

808,58€ 657,38€ bez DPH

Pridať do obľúbených

Technical Specifications

Mechanical

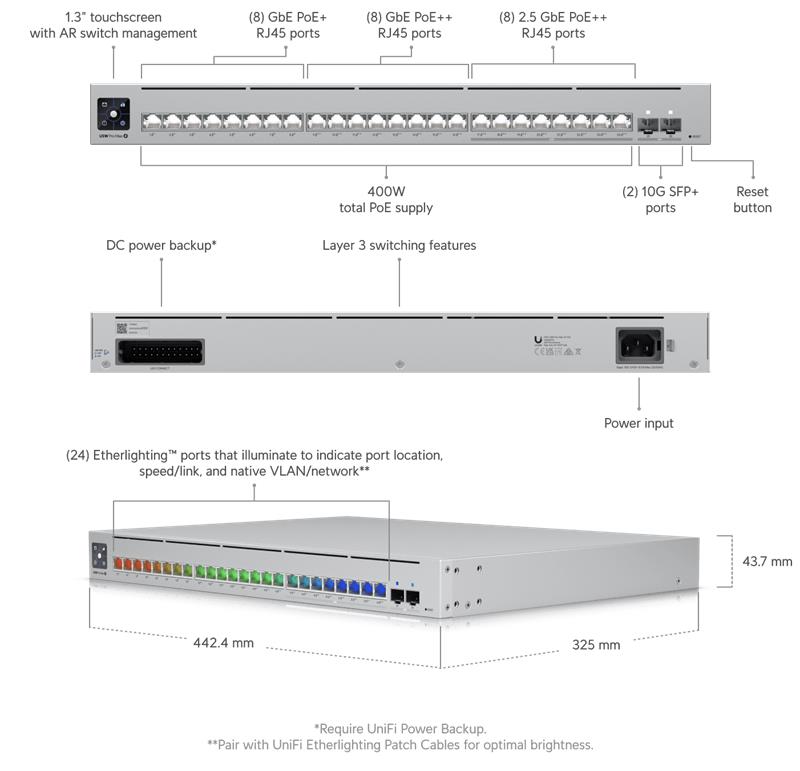

Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

Weight Without mounting brackets: 5.1 kg (11.3 lb)

With mounting brackets: 5.2 kg (11.5 lb)

Enclosure material SGCC steel

Hardware

Management interface Ethernet In-Band

Networking interface (16) GbE RJ45 ports

(8) 1/2.5 GbE RJ45 ports

(2) 10G SFP+ ports

PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput 56 Gbps

Switching capacity 112 Gbps

Power method (1) Universal input, 100—240V AC, 50/60 Hz

(1) USP-RPS DC input

Power supply AC/DC, internal, 450W

Supported voltage range 100—240V AC

Max. power consumption 50W (Excluding PoE output)

Total available PoE 400W

Max. PoE wattage per port by PSE PoE: 15.4W

PoE+: 30W

PoE++: 60W

Voltage range PoE mode PoE: 44—57V

PoE+: 50—57V

LCM display (1) 1.3" touchscreen

Button Factory reset

Ambient operating temperature -5 to 40° C (23 to 104° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC

Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

Layer 3 features

DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs

Etherlighting™

Ethernet Locating

Speed/link

Native VLAN/network

SFP+ Locating

Speed/link

Native VLAN/network

LEDs

System Status

RPS Status

Application Requirements

UniFi Network Version 8.0.24 and later

Príslušenstvo

Parametre

Hĺbka jedn. balenie	12.4
Hmotnosť jedn. balenie	6.182
Počet kusov jedn. balenie	1
Rozmer xyz jedn. balenie	52.2x43.7x12.4
Šírka jedn. balenie	52.2
Typ balenia jedn. balenie	Balitelné
Výška jedn. balenie	43.7
Hmotnosť kartónu	13.424
Typ obalu kartón	Expedovatelné
Počet kusov v kartóne	2
Rozmer xyz kartónu	27.3x54.2x46.6
Typ balenia kartónu	Balitelné
Konektor DisplayPort	Ne
DP/mini DP (počet)	0
Konektor HDMI	Ne
Počet LAN portov	24
Prevedenie switcha	Desktop / do racku
Fanless switch	Ano
Optika	Ano
Počet SFP portov	0
Počet QSFP portov	0
Počet QSFP+ portov	0
Počet SFP+ portov	2
Počet SFP28 portov	0
Počet QSFP56/ QSFP28	0
PoE	Out (výstup)
PoE In standart	Nepodporuje
PoE Out standard	802.3bt (max. 90W) - PoE++
PoE power budget (W)	301-400
Management	Managed switch
