Ubiquiti UniFi switch Gen2 USW-PRO-MAX-48-POE Layer3 32x 1Gbps 16x 2,5Gbps + 4x SFP+ POE++ (720W)

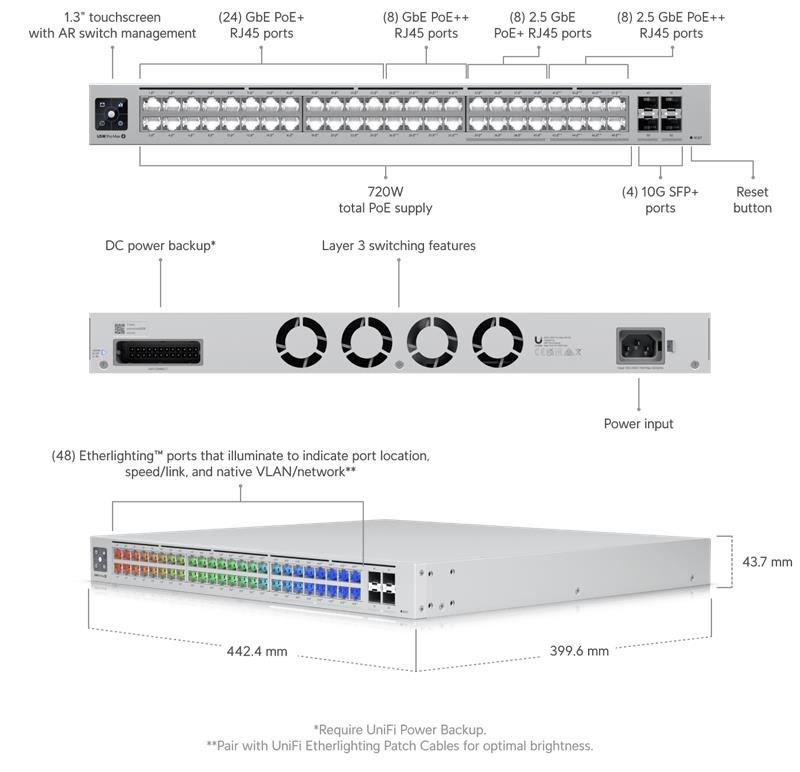

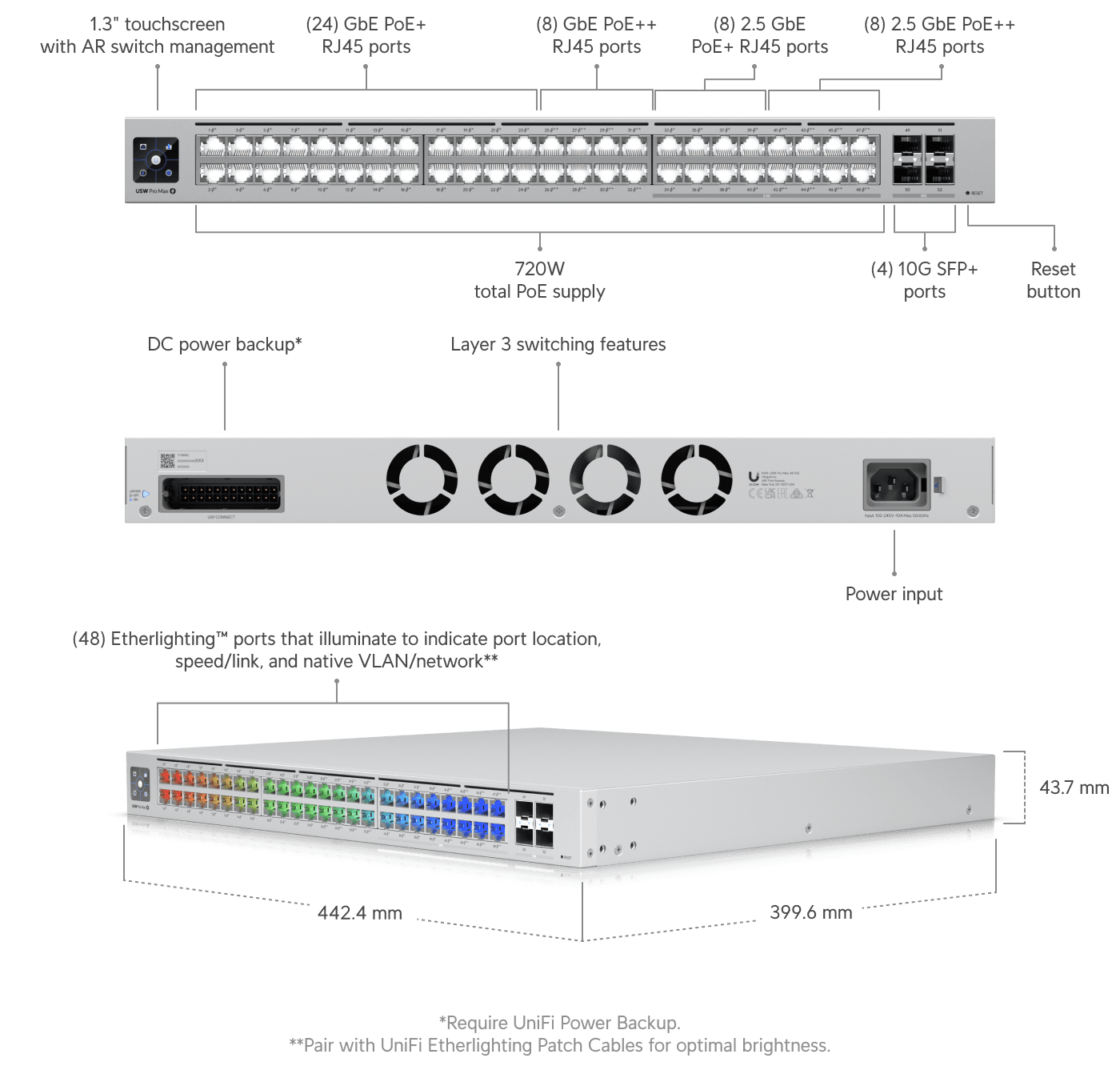

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

(16) 2.5 GbE ports including (8) PoE+ and (8) PoE++

(32) GbE ports including (24) PoE+ and (8) PoE++

(4) 10G SFP+ ports

DC power backup ready

720W total PoE availability

Managed with UniFi Network 8.0.24 and later

*Pair with UniFi Etherlighting Patch Cables for optimal brightness.

--------------
Technical Specifications
Mechanical
Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
PoE interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 112 Gbps
Switching capacity 224 Gbps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 820W
Supported voltage range 100—240V AC
Max. power consumption 100W (Excluding PoE output)
Total available PoE 720W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
LEDs
System Status
RPS Status
Application Requirements
UniFi Network Version 8.0.24 and later
