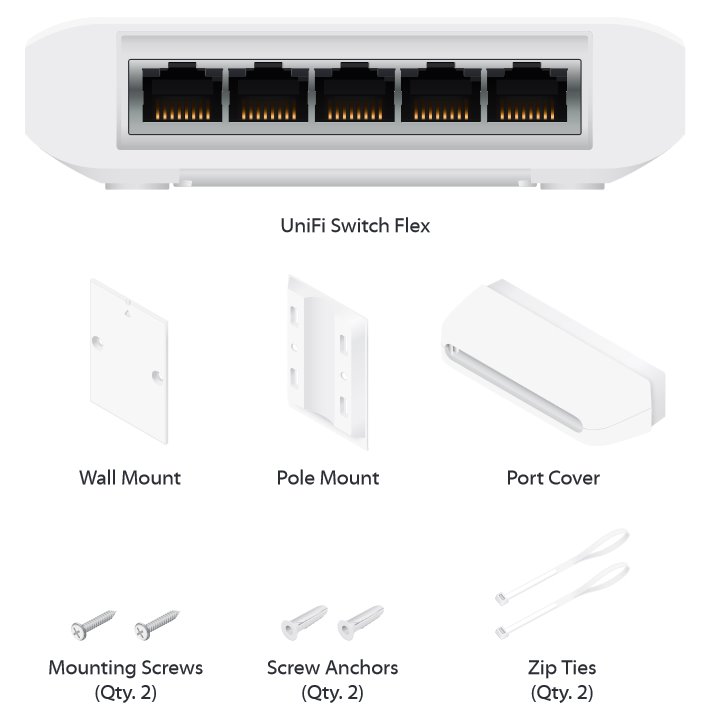

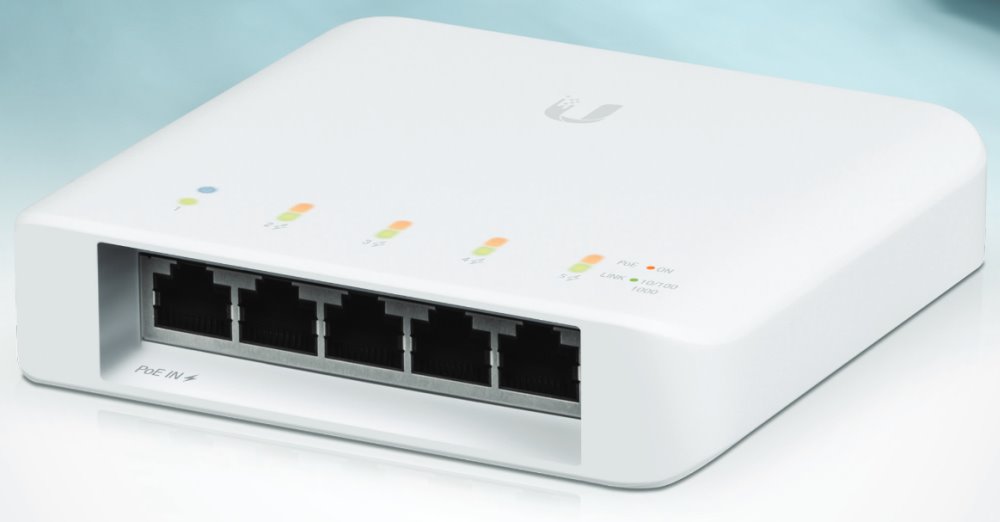

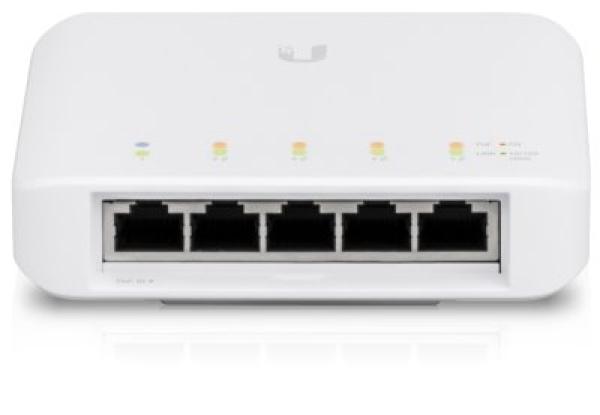

Ubiquiti UniFi switch USW-Flex 5x1000Mbps PoE/PoE+ indoor/outdoor (60W)

Technical Specifications



Mechanical

Dimensions  122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")

Weight  230 g (8.1 oz)



Hardware

Management interface  Ethernet In-Band

Networking interface  (5) GbE RJ45 ports

PoE interface  (4) PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput  5 Gbps

Switching capacity 10 Gbps

Power method  PoE++

Power supply  PoE/PoE+ (Pins 1, 2+; 3, 6-)

PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

50V/60W PoE adapter (Not included)

Supported voltage range  PoE: 44—57V DC

PoE+/PoE++: 50—57V DC

Max. power consumption  5W (Excluding PoE output)

Total available PoE  46W*

*When powered with a PoE++ switch or a 60W PoE adapter (Sold separately).

Max. PoE wattage per port by PSE  25W

ESD/EMP protection  Air/contact: ± 16kV

Button  Factory reset

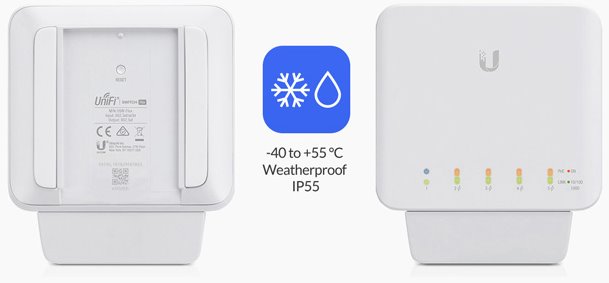

Ambient operating temperature  46W PoE output: -40 to 55° C (-40 to 131° F)

25W PoE output: -40 to 65° C (-40 to 149° F)

Ambient operating humidity  5 to 95% noncondensing

Certifications  CE, FCC, IC



Switching Features

Layer 2 features

Port isolation

Port mirroring

Multicast / broadcast rate limiting

Flow control

Jumbo frames

Egress rate limit



LEDs

System  Status

Ethernet  PoE

Speed/link/activity

PoE  Link/activity



Application Requirements

UniFi Network  Version 5.10.3 and later

Príslušenstvo

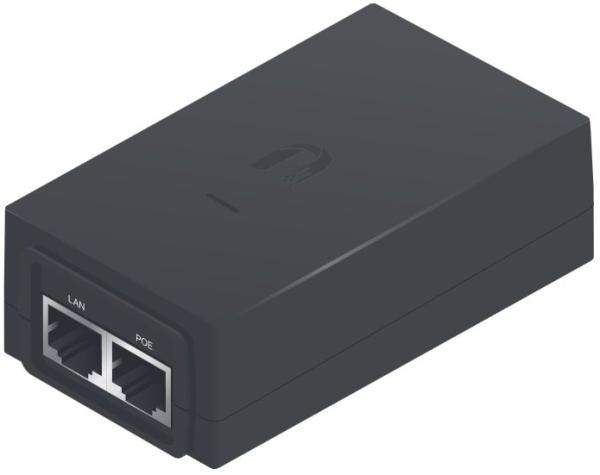

Ubiquiti POE-50-60W Gigabit PoE injektor 50V/1,2A (60W) čierny

napájecí zdroj pro AF-24

28,32€ bez DPH 33,98€

Kúpiť

skladom (7)

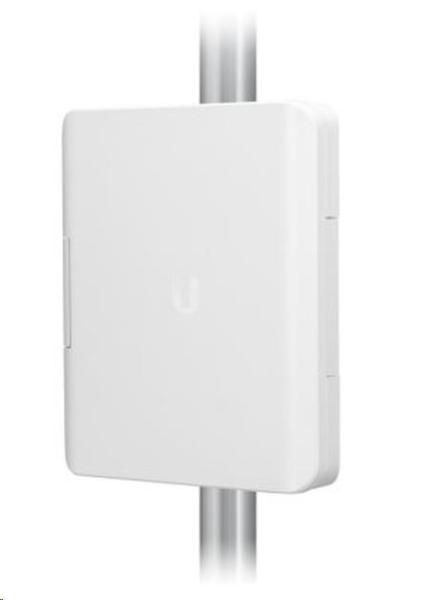

Ubiquiti UniFi switch USW-Flex-Utility outdoor montážny box pre switch USW-Flex
