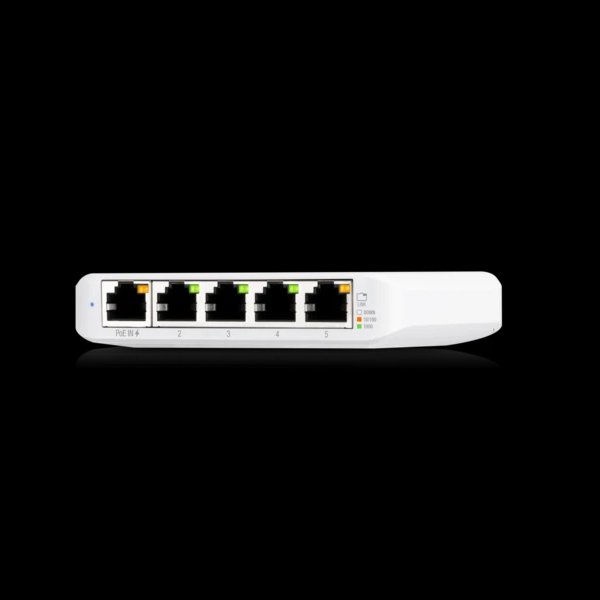

Ubiquiti UniFi switch USW-Flex-mini 5x1000Mbps power over PoE indoor/outdoor

Technical Specifications



Mechanical

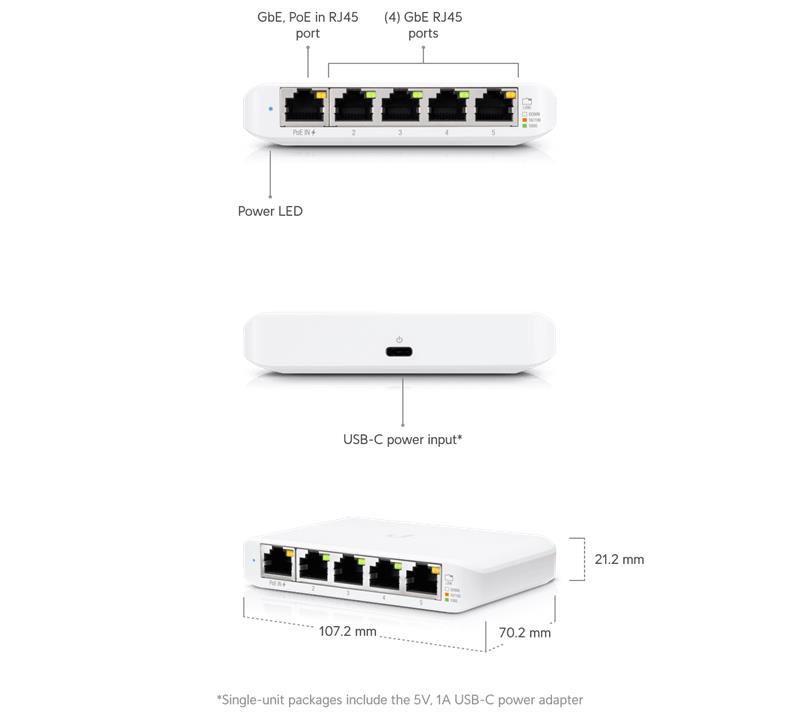

Dimensions  107 x 70 x 21 mm (4.2 x 2.8 x 0.8")

Weight  150 g (5.3 oz)

Enclosure material  Polycarbonate



Hardware

Management interface  Ethernet In-Band

Networking interface  (5) GbE RJ45 ports

Total non-blocking throughput  5 Gbps

Switching capacity 10 Gbps

Forwarding rate  7.44 Mpps

Power method  (1) USB Type C, 5V

(1) PoE/PoE+, 44—57V DC, 0.05—0.04A

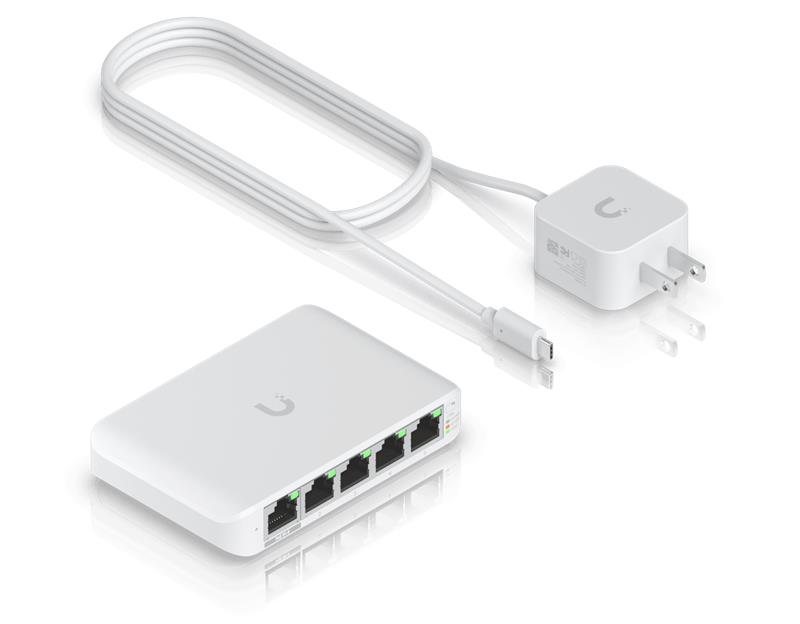

Power supply  5V, 1A power adapter*

*Only single-unit packages include the 5V, 1A USB-C power adapter.

Supported voltage range  USB Type C: 4.7—5.3V DC

PoE/PoE+: 44—57V DC

Max. power consumption  2.5W

ESD/EMP protection  Air: ± 16kV, contact: ± 12kV

Button  Factory reset

Ambient operating temperature  -5 to 45° C (23 to 113° F)

Ambient operating humidity  10 to 90% noncondensing

Certifications  CE, FCC, IC



Switching Features

Layer 2 features

Port isolation

Storm control

Port mirroring

Multicast / broadcast rate limiting

Flow control

Jumbo frames

Egress rate limit



LEDs

System  Status

Ethernet  Speed/link/activity



Application Requirements

UniFi Network  Version 5.12.5 and later
