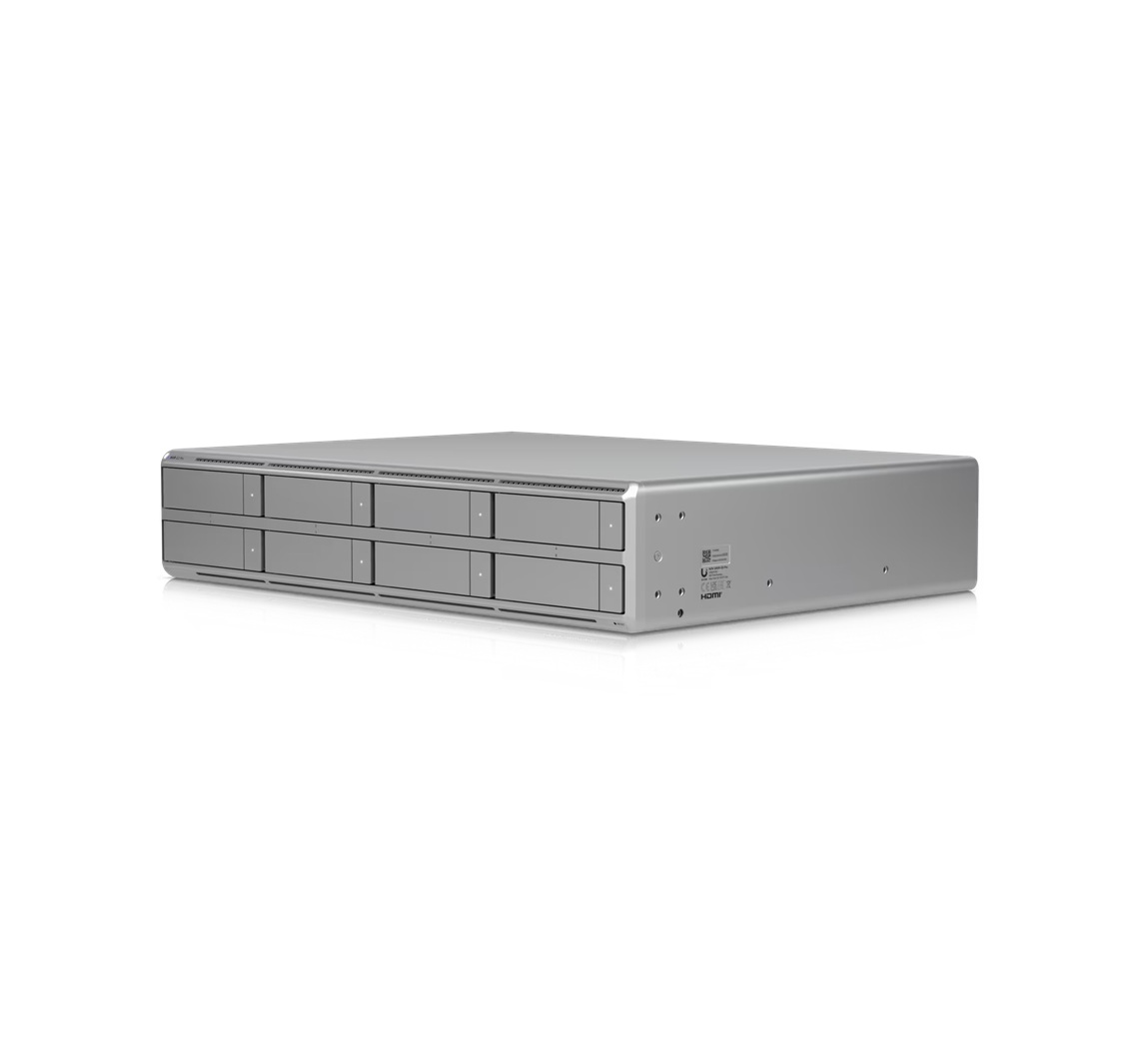

Ubiquiti 2U UniFi Protect NVR with built-in AI event analytics, HDMI output, eight 2.5”/3.5” HDD bays, and support for u

2U UniFi Protect NVR with built-in AI event analytics, HDMI output, eight 2.5”/3.5” HDD bays, and support for up to (50) 4K or (100) Full HD cameras.





Overview

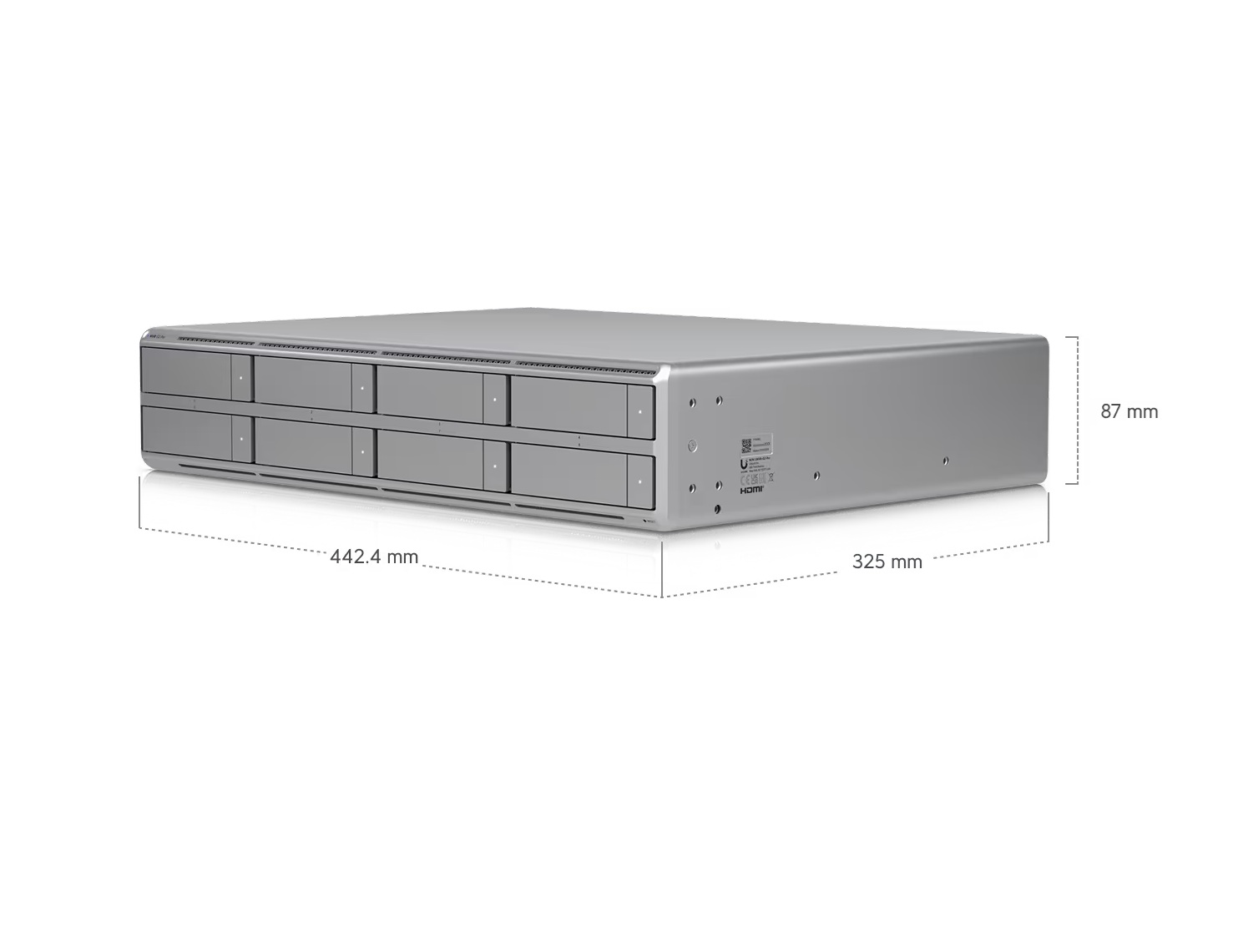

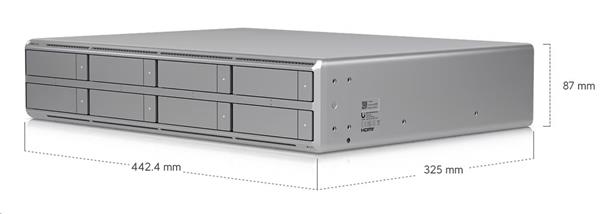

Dimensions

442.4 x 87.4 x 325 mm

(17.4 x 3.4 x 12.8")

Managed Cameras

(100) HD

(70) 2K

(50) 4K

Managed Access Hubs

150+

Storage Capacity

(8) 2.5/3.5" drive bays

Data Protection

yes

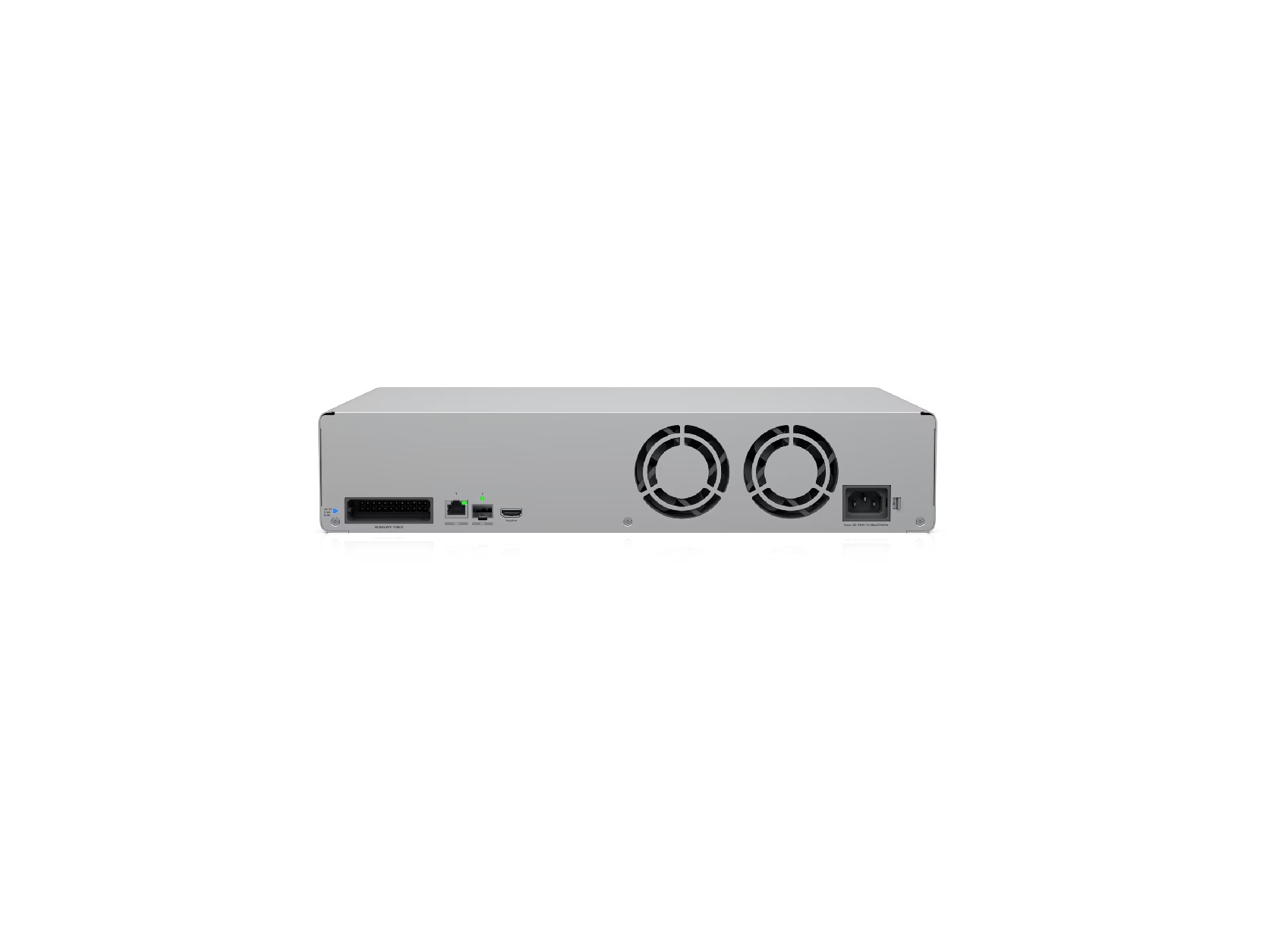

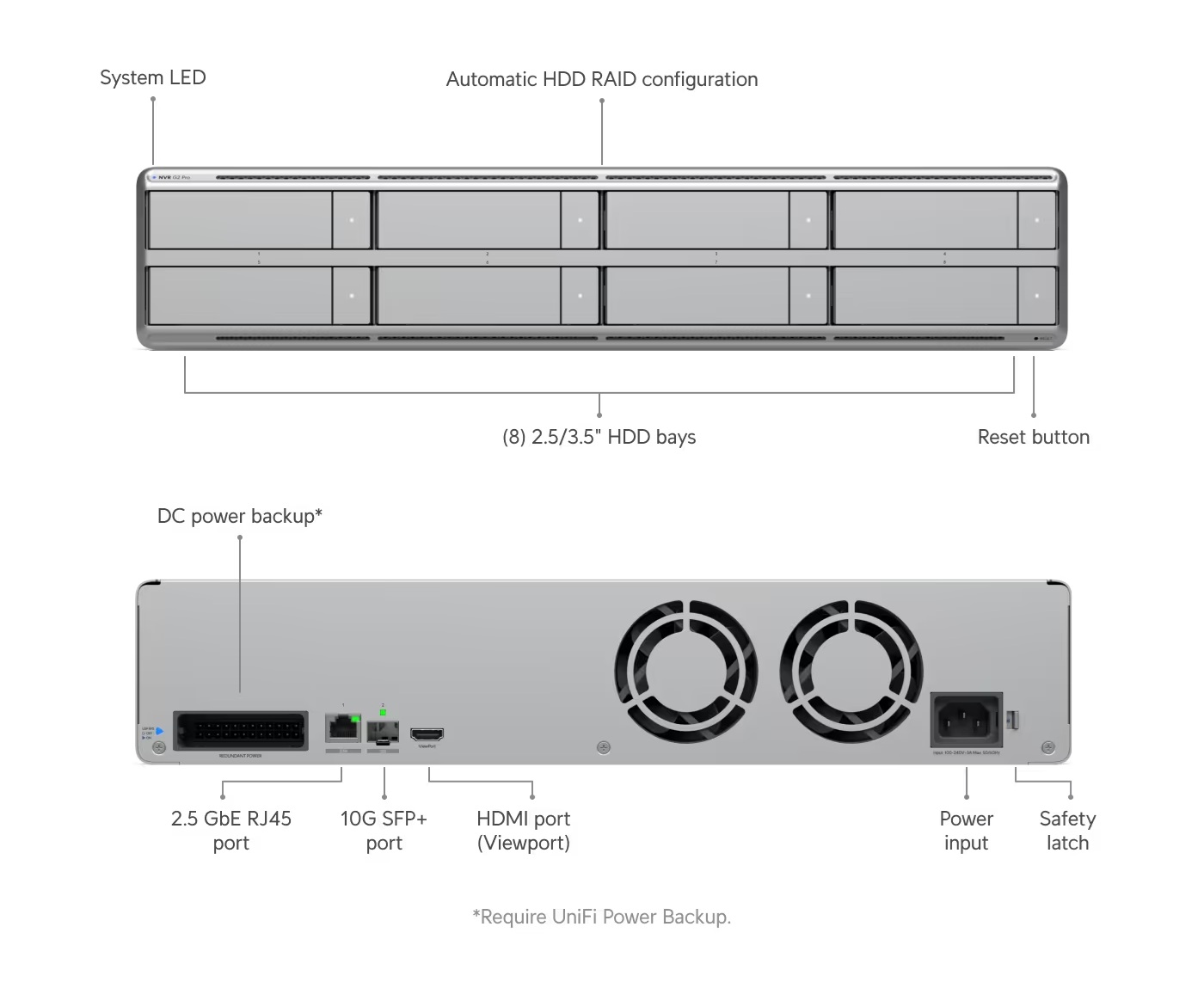

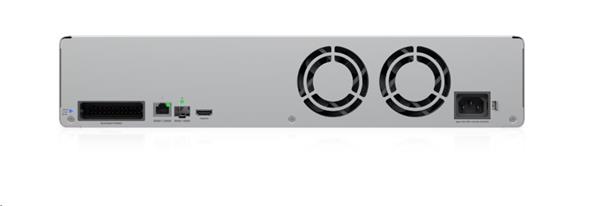

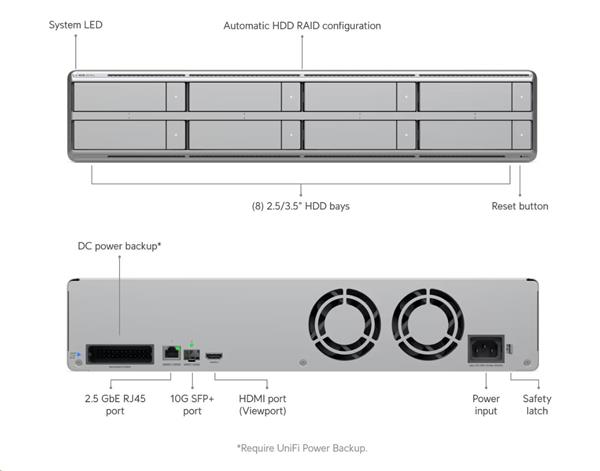

Networking Interface

(1) 10G SFP+ port

(1) 2.5 GbE RJ45 port

Power Redundancy

yes

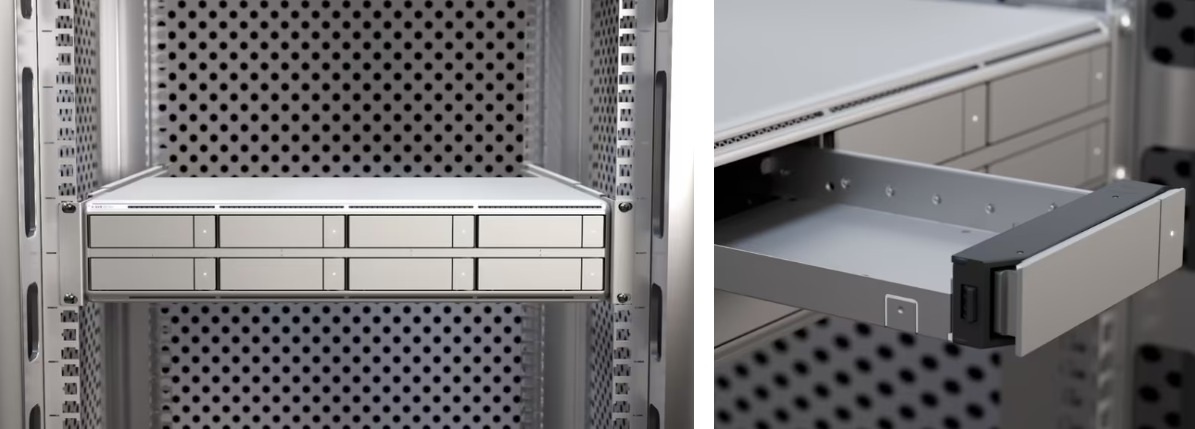

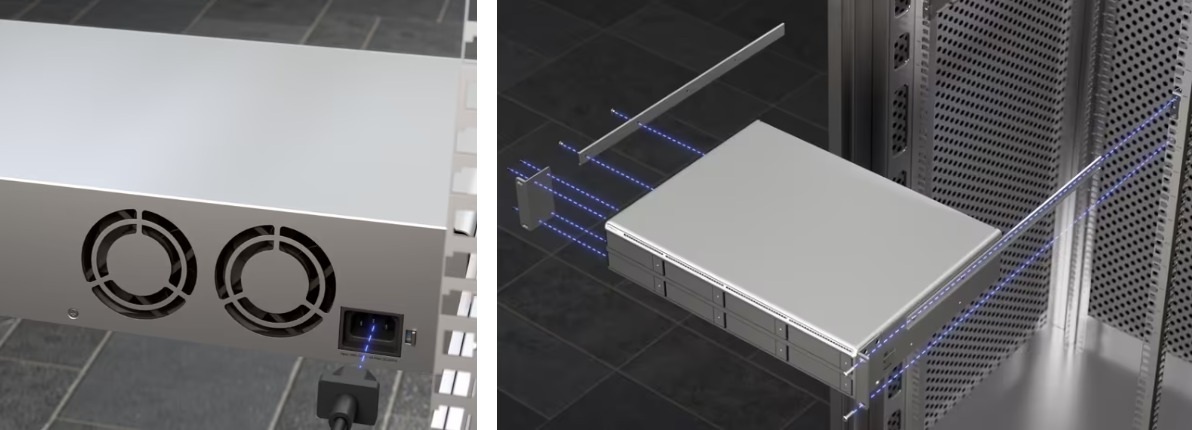

Form Factor

Rack Mount (2U)

Door Access Support

yes

Management Application

UniFi Protect

UniFi Access

UniFi Connect



Hardware

Hard Drive Capacity

(8) 2.5/3.5" HDD / SSD support

Max. Power Budget for Drives

155W

Max. Power Consumption

200W

Power Method

(1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz

(1) USP-RPS DC input, 11.5V DC

Power Supply

AC/DC, Internal PSU, 200W

Processor

Qualcomm® Kryo™ CPU built on Arm® Cortex® technology (4 nm)

(1) Prime core (3.2 GHz)

(4) Performance cores (2.8 GHz)

(3) Efficiency cores (2.0 GHz)

Memory

16 GB

Management

Ethernet

Bluetooth

Weight

8.4 kg (18.5 lb)

Enclosure Material

SGCC steel

Mount Material

SGCC steel

LEDs

Ethernet

yes

SFP+

yes

HDD

yes

RPS

yes

System

yes

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

yes

Certifications

CE, FCC, IC



Software

Application Requirements

UniFi Protect

Version 7.1.55 or later.

UniFi Access

Version 4.2.16 or later.
