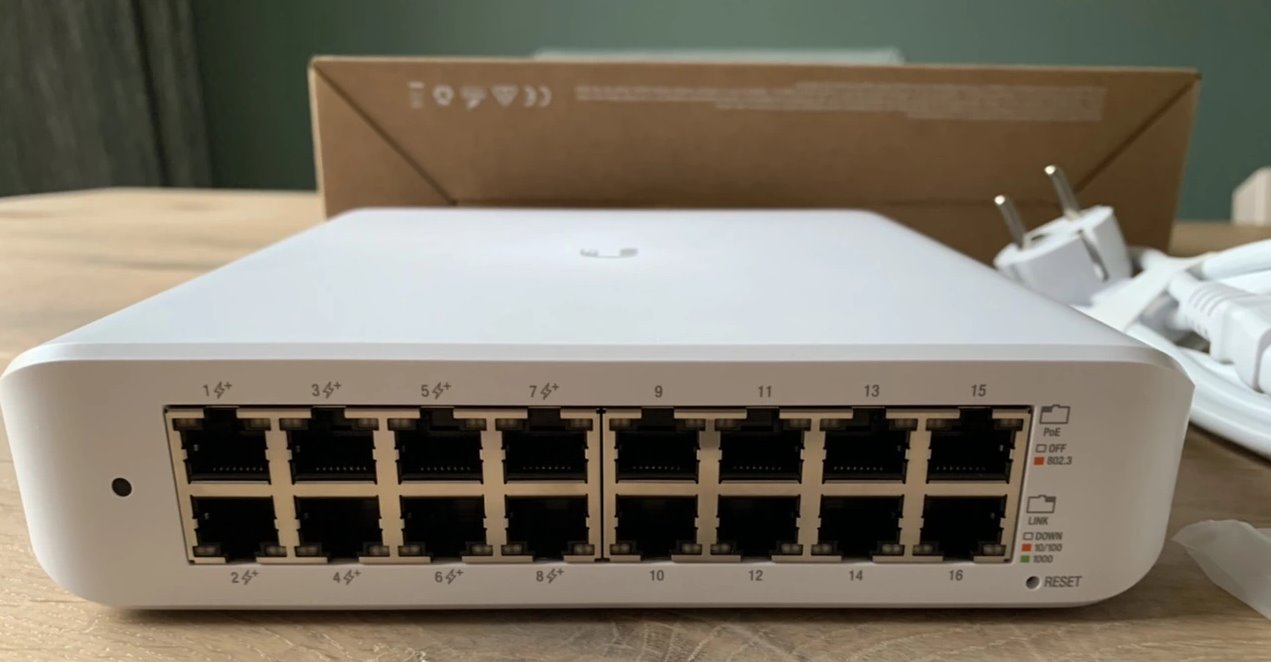

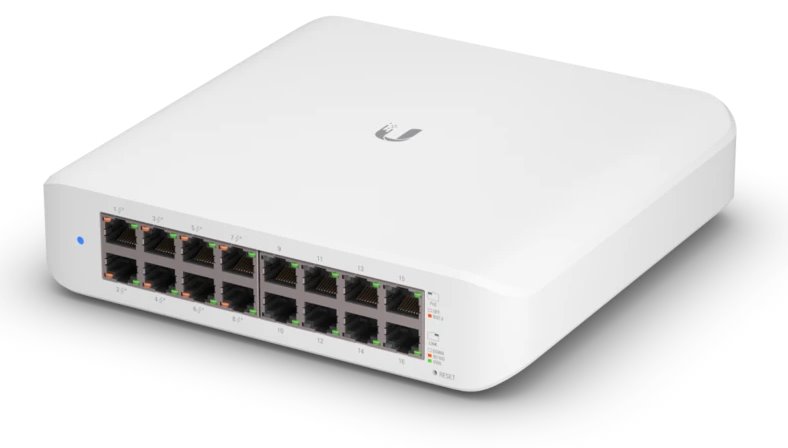

Ubiquiti UniFi switch Gen2 USW-Lite-16-POE 16x1000Mbps POE/POE+ (45W)
| Kód tovaru: | 2422780 |
|---|---|
| Výrobca: | Ubiquiti |
| PN kód: | USW-Lite-16-POE |
| EAN kód: | 810010071163 |
| Záruka: | 24 mesiacov |
| Dostupnosť: | skladom (10) |
Technical Specifications
Mechanical

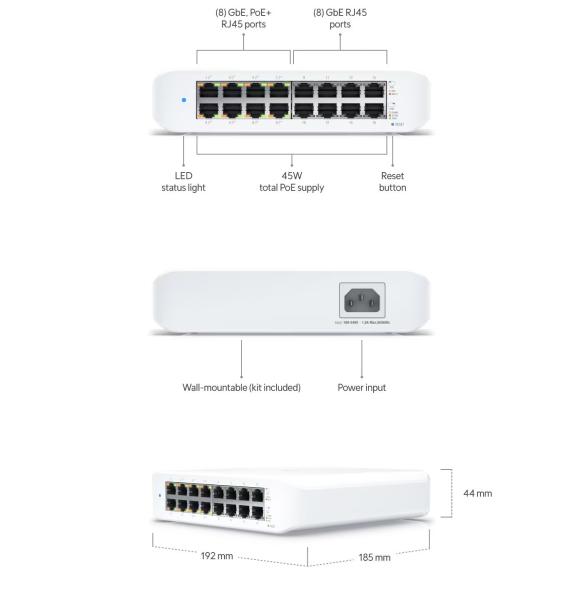

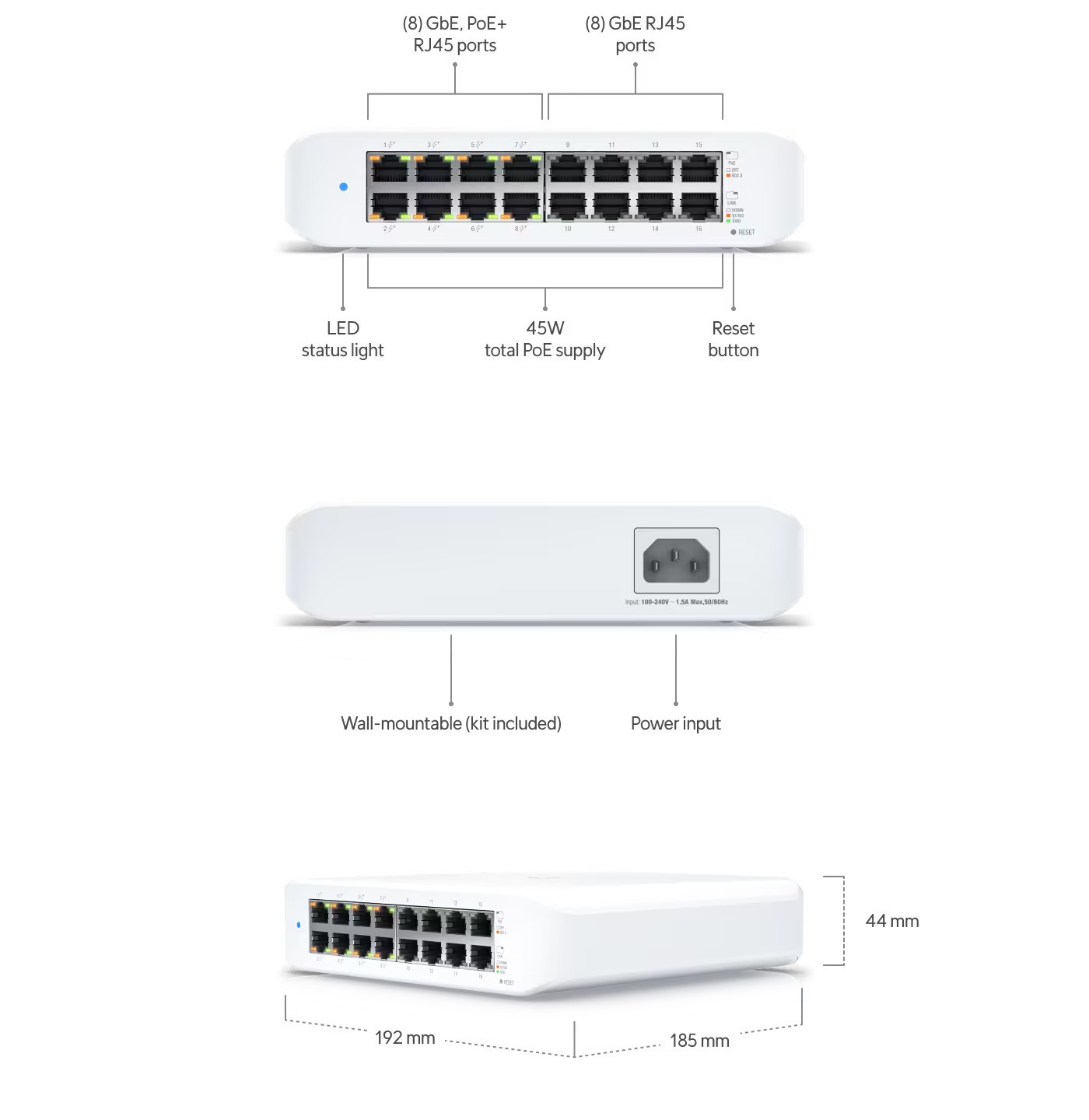

Dimensions 192 x 185 x 44 mm (7.6 x 7.3 x 1.7")
Weight 1.2 kg (2.6 lb)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 16 Gbps
Switching capacity 32 Gbps

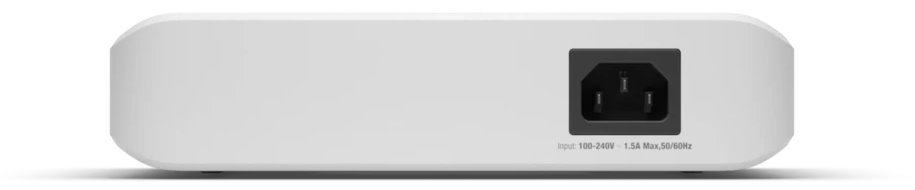

Power method Universal input, 100—240V AC
Power supply AC/DC, internal, 60W
Max. power consumption 15W (Excluding PoE output)
Total available PoE 45W
Max. PoE wattage per port by PSE PoE+: 30W
Button Factory reset
Ambient operating temperature -15 to 40° C (5 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

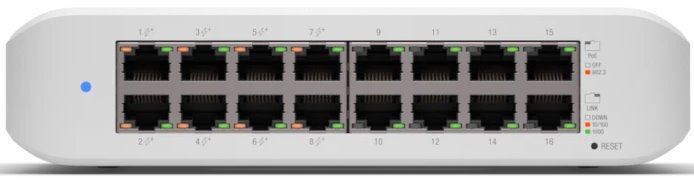

LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
Príslušenstvo
Ubiquiti UI Care pre USW-Lite-16-POE
With UI Care, you"ll extend replacement protection to five years and enjoy exclusive benefits. Pre aktiváciu poprosíme zaslať MAC…
nie je skladom
Parametre
| Hmotnost jedn. balení | 1.458 |
| Rozměr xyz jedn. balení | 30.2x24.5x9.2 |
| Počet kusů jedn. balení | 1 |
| Počet kusů v kartonu | 8 |
| Hmotnost kartonu | 12.770 |
| Typ obalu kartón | Expedovatelné |
| Typ balení jedn. balení | Balitelné |
| Rozměr xyz kartonu | 51.2x38.5x33.3 |
| Výška jedn. balení | 24.5 |
| Šířka jedn. balení | 30.2 |
| Typ balení kartonu | Balitelné |
| Hloubka jedn. balení | 9.2 |
| Počet LAN portů | 16 |
| POE | Ano |
| Počet LAN portů | 16x |
| POE standard | 802.3af (max. 15,4W) - PoE |
| PoE | Out (výstup) |
| PoE In standard | Nepodporuje |
| PoE Out standard | 802.3at (max. 33,6W) - PoE+ |
| PoE power budget (W) | Do 100 |
