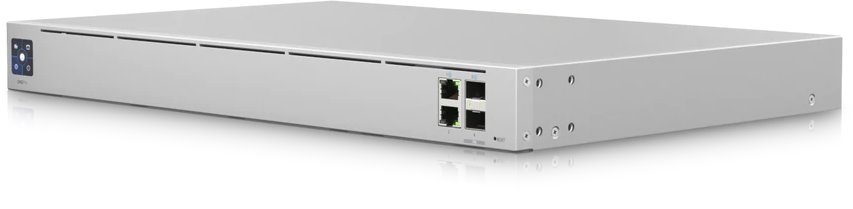

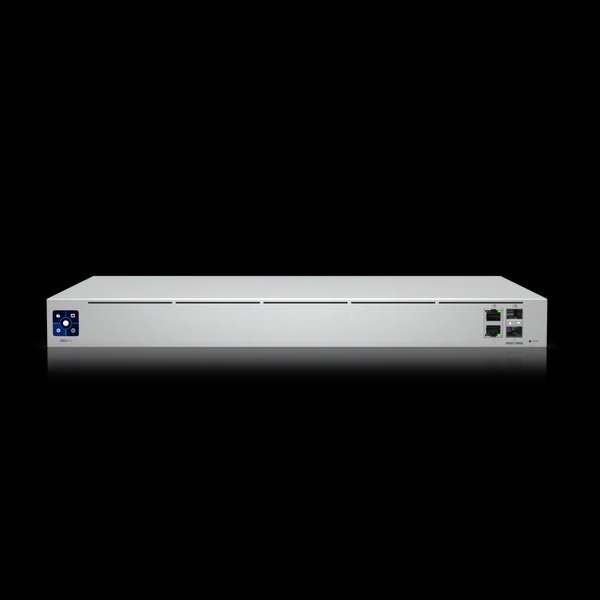

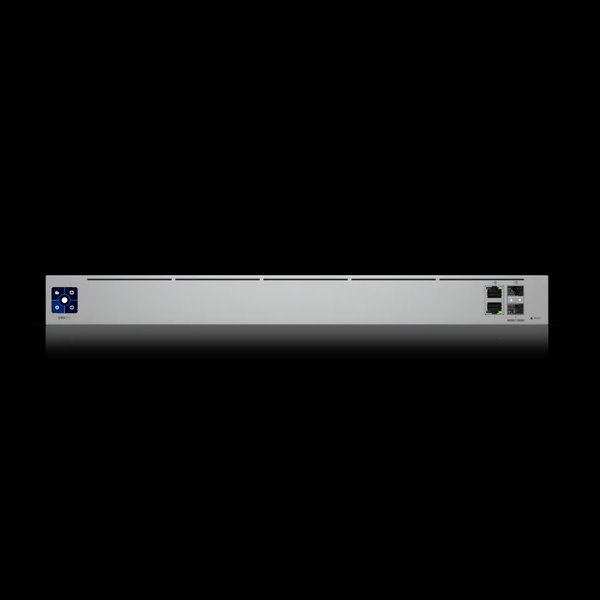

Ubiquiti UniFi Gateway Pro 10Gbps porty (UniFi gateway s podporou IPS/IDS)
| Kód tovaru: | 2471299 |
|---|---|
| Výrobca: | Ubiquiti |
| PN kód: | UXG-Pro |
| EAN kód: | 810010073525 |
| Záruka: | 24 mesiacov |
| Dostupnosť: | skladom (2) |
Kompaktní, výkonná a multi-WAN UniFi brána s kompletní sadou bezpečnostních služeb IDS/IPS a pokročilými funkcemi směrování a zabepečení datového provozu.
Provoz na síti UniFi Network pro komplexní správu sítě.
WAN port 1x 10Gbps SFP+ / 1x 1Gbps RJ45
LAN port 1x 10Gbps SFP+ / 1x 1Gbps RJ45
Technical Specifications
Mechanical

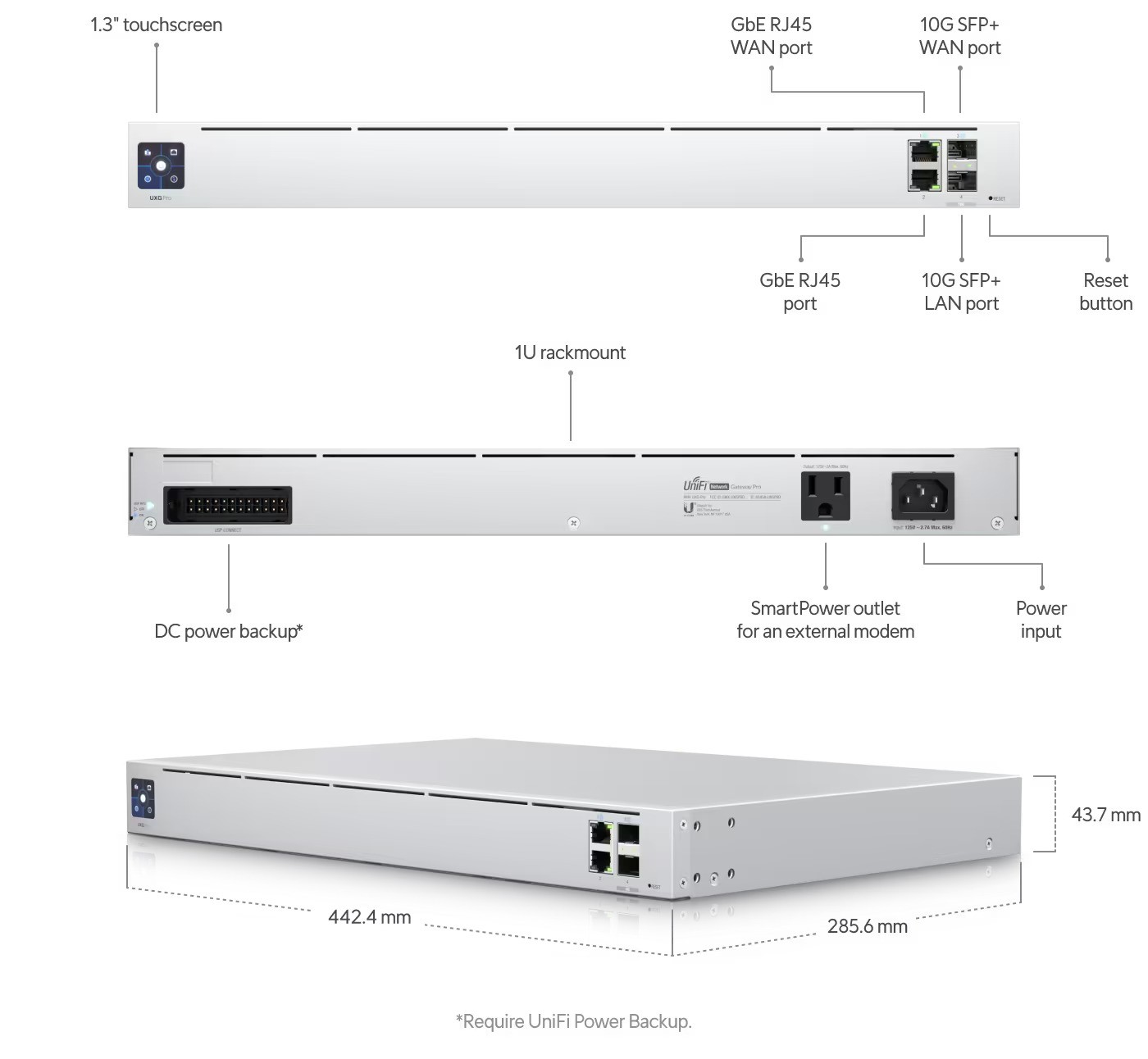

Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight 3.4 kg (7.5 lb)
Enclosure material Front panel: aluminum CNC
Top cover/base: SGCC steel
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory information 2 GB DDR4
Management interface Ethernet
Networking interface
LAN:
(1) 1 GbE RJ45 port
(1) 10G SFP+ port
WAN:
(1) 1 GbE RJ45 port
(1) 10G SFP+ port

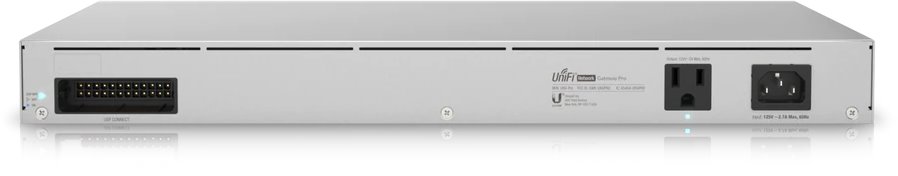

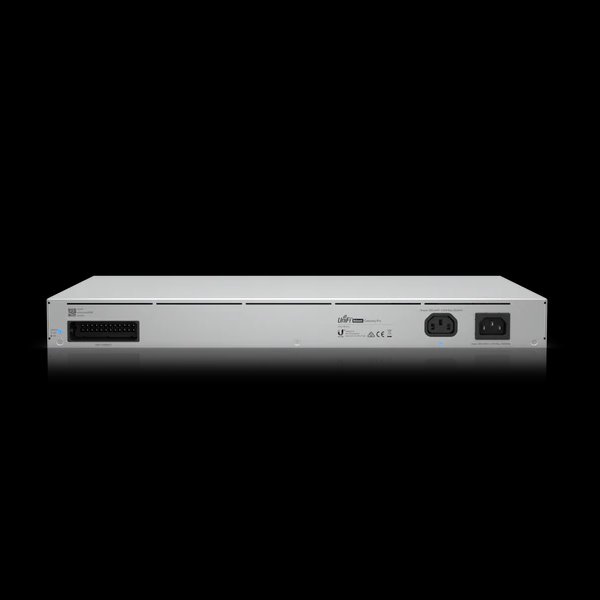

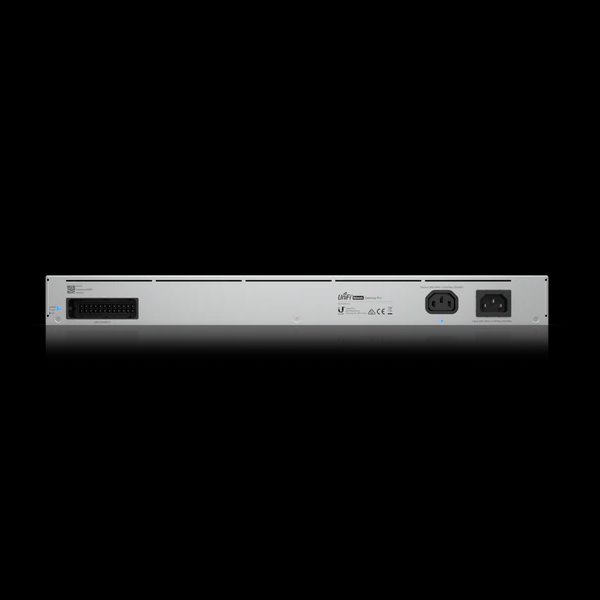

Power method US:
(1) Universal AC input, 125V AC, 2.7A Max., 60 Hz
(1) RPS DC input, 11.5V DC, 2.87A
Worldwide:
(1) Universal AC input, 200–240V AC, 1.7A Max., 50/60 Hz
(1) RPS DC input, 11.5V DC, 2.87A
Power supply AC/DC, internal, 50W
Max. power consumption 30W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport* and Identity Enterprise VPN**
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
*When paired with a Cloud Key or Official UniFi Hosting.
**When paired with a Cloud Key.
LEDs
Ethernet Green/amber
SFP+ White/green
AC outlet/ RPS Blue
Software
Management application UniFi Network: Version 5.14.11 and later
Príslušenstvo
Ubiquiti UI Care pre UXG-Pro
With UI Care, you"ll extend replacement protection to five years and enjoy exclusive benefits. You must activate your UI Care protection…
nie je skladom
Parametre
| Šířka jedn. balení | 52.3 |
| Počet kusů jedn. balení | 1 |
| Typ balení jedn. balení | Balitelné |
| Rozměr xyz jedn. balení | 52.3x41.9x12.5 |
| Hmotnost jedn. balení | 4.802 |
| Hloubka jedn. balení | 12.5 |
| Výška jedn. balení | 41.9 |
| Rychlost LAN max. | 1 Gbps |
| Optika | Ano |
| Low profile | Ne |
| Počet LAN portů | 2 |
| POE | Ne |
| USB port u routeru | Není |
| 3G/4G/LTE modem | Ne |
| Použití (venkovní/vnitřní) | Vnitřní |
| Počet LAN portů | 2x |
| Datové sítě | Nepodporuje |
| Low-profile | Ne |
| PoE | Ne |
| PoE In standard | Nepodporuje |
| PoE Out standard | Nepodporuje |
| PoE power budget (W) | Nevztahuje se |
