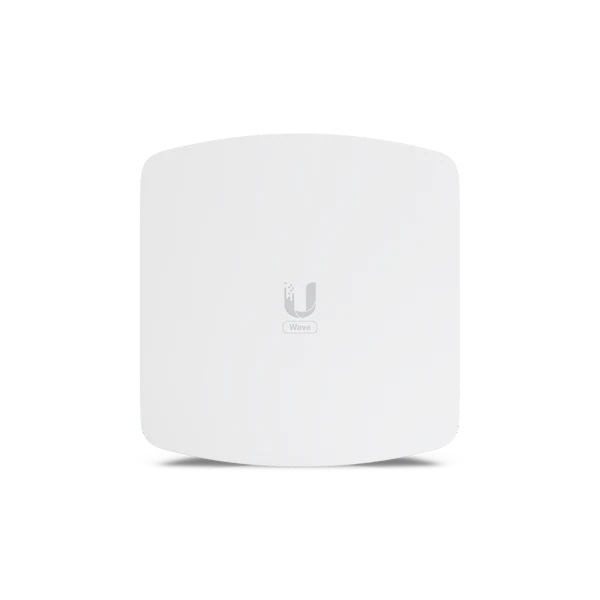

Ubiquiti WAVE-AP 60GHz+5GHz max. 5,4Gbps ( až 8km)

60 GHz PtMP access point powered by Wave Technology.

• Max. total throughput: 5.4 Gbps (2.7 Gbps duplex)


• 30° sector coverage


• 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)


• (1) 2.5 GbE and (1) 10G SFP+ WAN ports


• 31* client capacity:



  • — Wave Pro (8 km link range)


  • — Wave Long-Range (8 km link range)


  • — Wave Nano (5 km link range)


  • — Wave Pico (1.3 km link range)






• Integrated GPS & Bluetooth

Mechanical

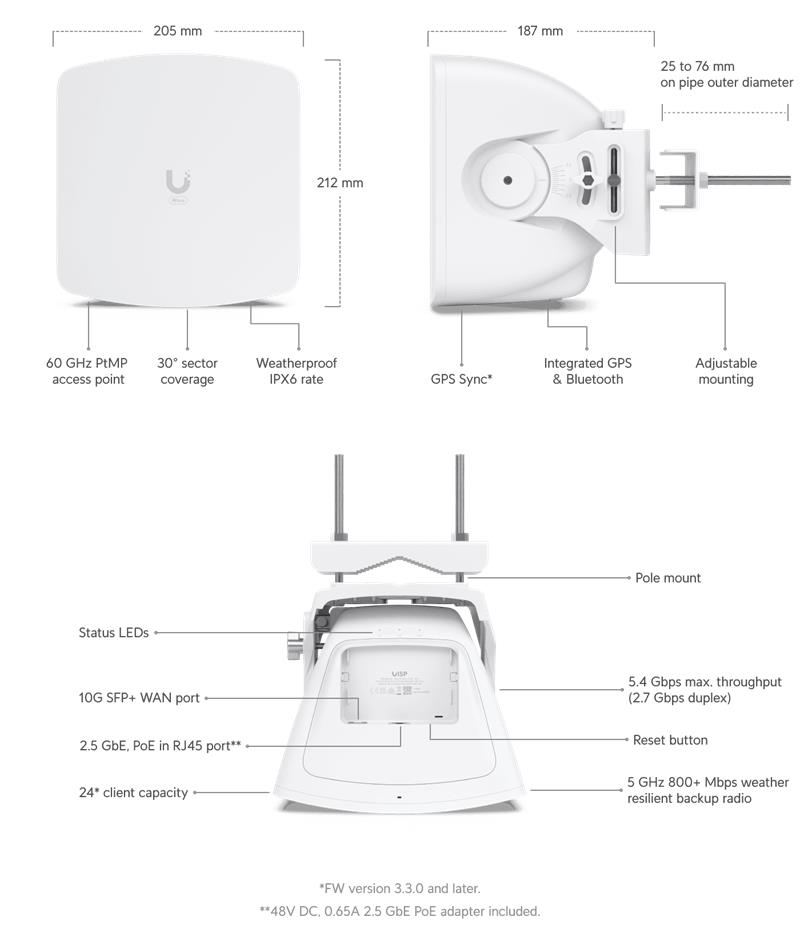

Dimensions 212 x 205 x 187 mm (8.3 x 8.1 x 7.4")

Weight 2.3 kg (5.1 lb)

Enclosure material Aluminum alloy, UV stabilized polycarbonate

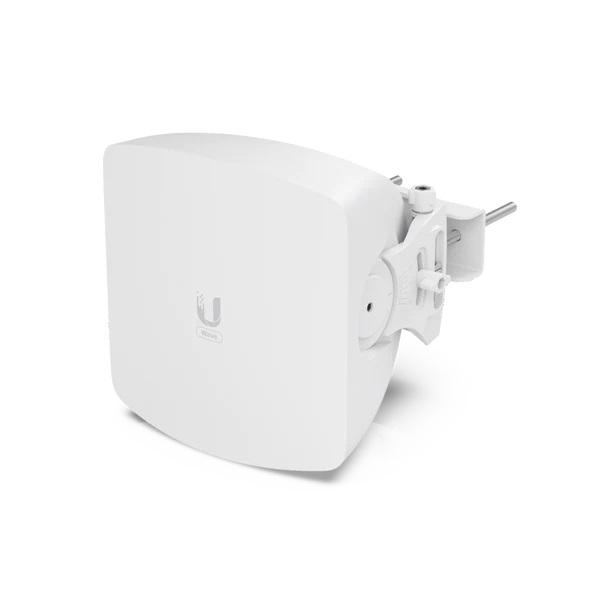

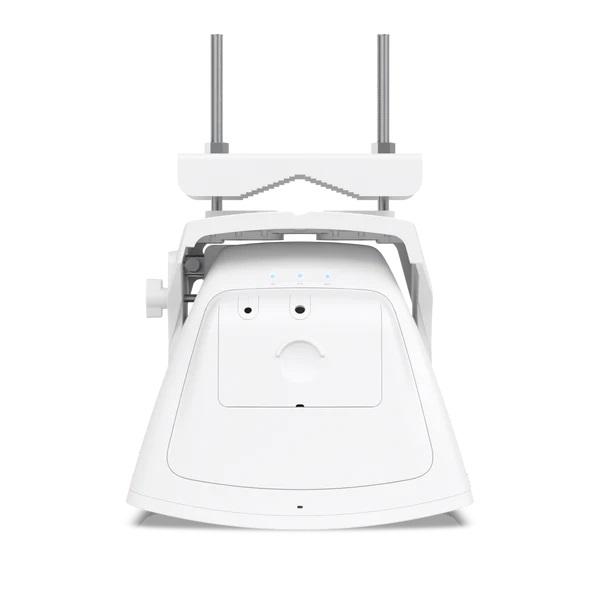

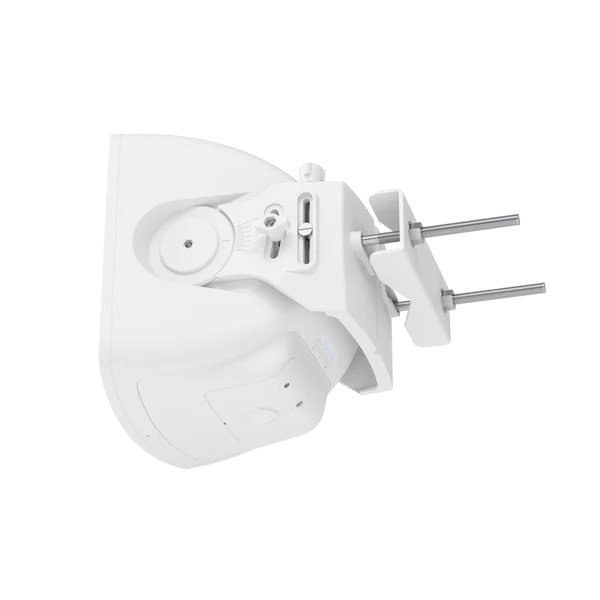

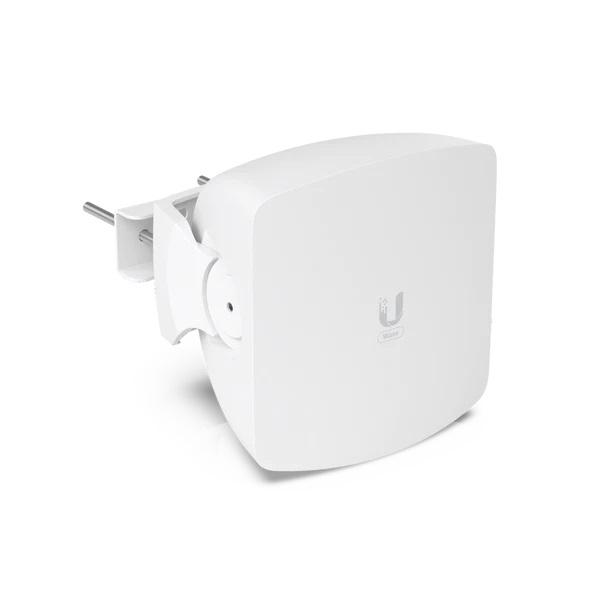

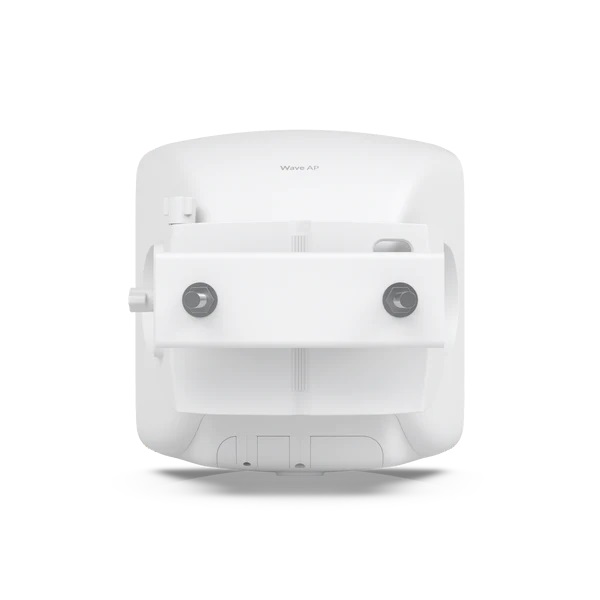

Pole mount diameter 25 to 76 mm (1 to 3") on pipe outer diameter

Wind loading 98 N at 200 km/h (22 lbf at 125 mph)

Weatherproofing IPX6



Hardware

Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz

Memory DDR3L 512 MB

Networking interface (1) 2.5GbE RJ45 port (100/1000/2500)*

(1) 10G SFP+ port (1/10)

* Active only when SFP+ port is down.

Max. power consumption 24W

Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply 48V DC, 0.65A 2.5GbE PoE adapter (Included)

Supported voltage range 44–54V DC

22–27V DC

GPS Yes

Button Factory reset

LEDs Power, Ethernet, GPS

Ambient operating temperature -40 to 60° C (-40 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications FCC, IC, CE



Software

Operating mode PtMP access point

Ubiquiti specific features Wave technology

Services UISP, ping watchdog, NTP client, SNMP

Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*

*FW version 3.3.0 and later.

Network Bridge mode

Application requirements UISP: Version 1.5.7 and later

System

Total throughput 5.4 Gbps (2.7 Gbps duplex)

Supported clients count 31*

*FW version 3.4.0 and later.

Max. range Connecting to a Wave Pro: up to 8 km

Connecting to a Wave Long-Range: up to 8 km

Connecting to a Wave Nano: up to 5 km

Connecting to a Wave Pico: up to 1.3 km

Encryption WPA2-PSK (AES)



RF

Operating frequency* 57–71 GHz

*Depends on regulatory region.

Channel bandwidth 2160, 1080, 540* MHz

*FW version 3.3.0 and later.

Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz

*Depends on regulatory region.

Modulation 16QAM, QPSK

Antenna gain 24 dBi

Polarization Vertically linear

Beamwidth Azimuth: 3 dB 30°

Elevation: 3 dB 3°

Electrical downtilt 0°



Back-Up RF

WiFi standard 802.11ax (WiFi 6)

Operating frequency*

US/CA

Worldwide

U-NII-1 5150 - 5250 MHz

U-NII-2A 5250 - 5350 MHz

U-NII-2C 5470 - 5725 MHz

U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz

*Depends on regulatory region.

Channel bandwidth 20, 40, 80 MHz

Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)

Antenna gain 12 dBi

Cross-pol isolation 10 dB

Polarization Dual-linear

Beamwidth Azimuth: 3 dB 35°

Elevation: 3 dB 60°

Electric downtilt 0°



LEDs

Power Flashing white: bootup in progress

White: not connected to UISP application

Blue: connected to UISP application

Flashing blue: locate in progress

Blue/white: firmware upgrade in progress



Ethernet Flashing white: Ethernet traffic detected

Flashing blue: SFP+ traffic detected



GPS Blue: receiving at least (4) GPS satellite signal
