UBNT UniFi U7-Pro-XG, bez PoE adaptéru, černá

WiFi 7 AP pro interiérové použití se 6 samostatnými streamy a přidaným vysílacím pásmem v 6GHz a LAN portem s rychlostí až 10Gbps

- WiFi 7

- 6 samostatných streamů

- pokrytí 140 m²

- 300+ samostatných připojených klientů

- napájení přes POE+

- 10/5/2,5/1 GbE uplink

- montážní držák na zeď / strop

Overview

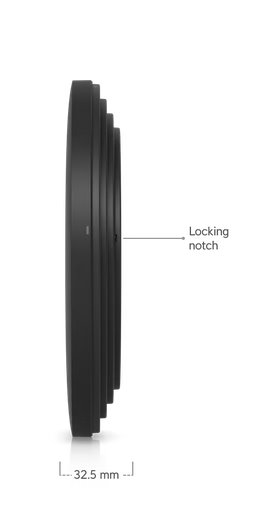

Dimensions   O206 x 32.5 mm

WiFi Standard   WiFi 7

Spatial Streams   6

Coverage Area   140 m² (1,500 ft²)

Max. Client Count   300+

Uplink   10 GbE

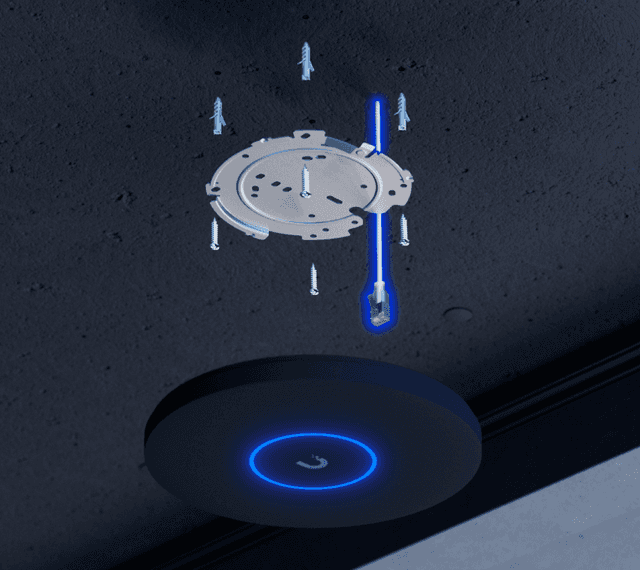

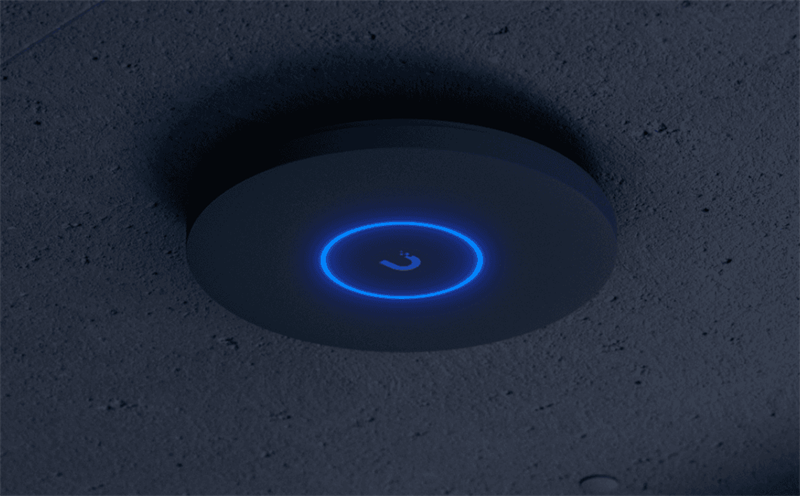

Mounting   Ceiling, Wall   (Lite Mount Included)

Power Method   PoE+

Performance

MIMO

6 GHz   2 x 2 (DL/UL MU-MIMO)

5 GHz   2 x 2 (DL/UL MU-MIMO)

2.4 GHz   2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

6 GHz   5.8 Gbps (BW320)

5 GHz   4.3 Gbps (BW240)

2.4 GHz   688 Mbps (BW40)

Antenna Gain

6 GHz   6 dBi

5 GHz   5 dBi

2.4 GHz   4 dBi

Max. TX Power

6 GHz   24 dBm

5 GHz   26 dBm

2.4 GHz   23 dBm

Max. BSSIDs   8 per Radio

Supported Data Rates

802.11be (WiFi 7)   6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)   5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)   7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)  6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n   6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing   Yes

Band Steering   Yes

802.11v BSS Transition Management   Yes

802.11r Fast Roaming   Yes

802.11k Radio Resource Management (RRM)   Yes

Advanced Radio Management   Yes

Passpoint (Hotspot 2.0)   Yes

Captive Hotspot Portal

Custom Branding Landing Page   Yes

Voucher Authentication   Yes

Payment-Based Authentication   Yes

External Portal Server Support   Yes

Password Authentication   Yes

Guest Network Isolation   Yes

Private Pre-Shared Key (PPSK)   Yes

WiFi Speed Limiting   Yes

Client Device Isolation   Yes

WiFi Schedules   Yes

RADIUS over TLS (RadSec)   Yes

Dynamic RADIUS-assigned VLAN   Yes



Hardware

Max. Power Consumption   22W

Supported Voltage Range   42.5—57V DC

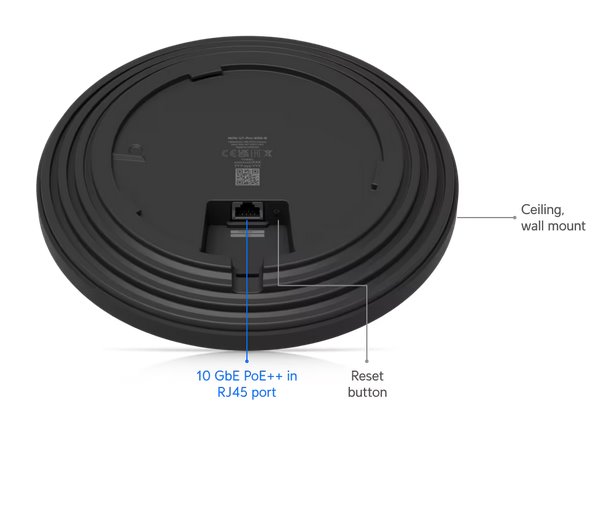

Networking Interface   (1) 10 GbE RJ45 port

Weight   750 g (1.7 lb)

Management   Ethernet

Enclosure Material   UV-stabilized polycarbonate, aluminum alloy

Mount Material   Stainless steel (SUS304), galvanized steel (SGCC)

LEDs   System   White/Blue

Channel Bandwidth   HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

NDAA Compliant   Yes

Certifications   CE, FCC, IC

Ambient Operating Temperature   -30 to 40° C (-22 to 104° F)

Ambient Operating Humidity   5 to 95% noncondensing



Software

Application Requirements    UniFi Network  Version 9.0.114 and later (U7 Pro XG - White)   Version 9.1.120 and later (U7 Pro XG - Black)
