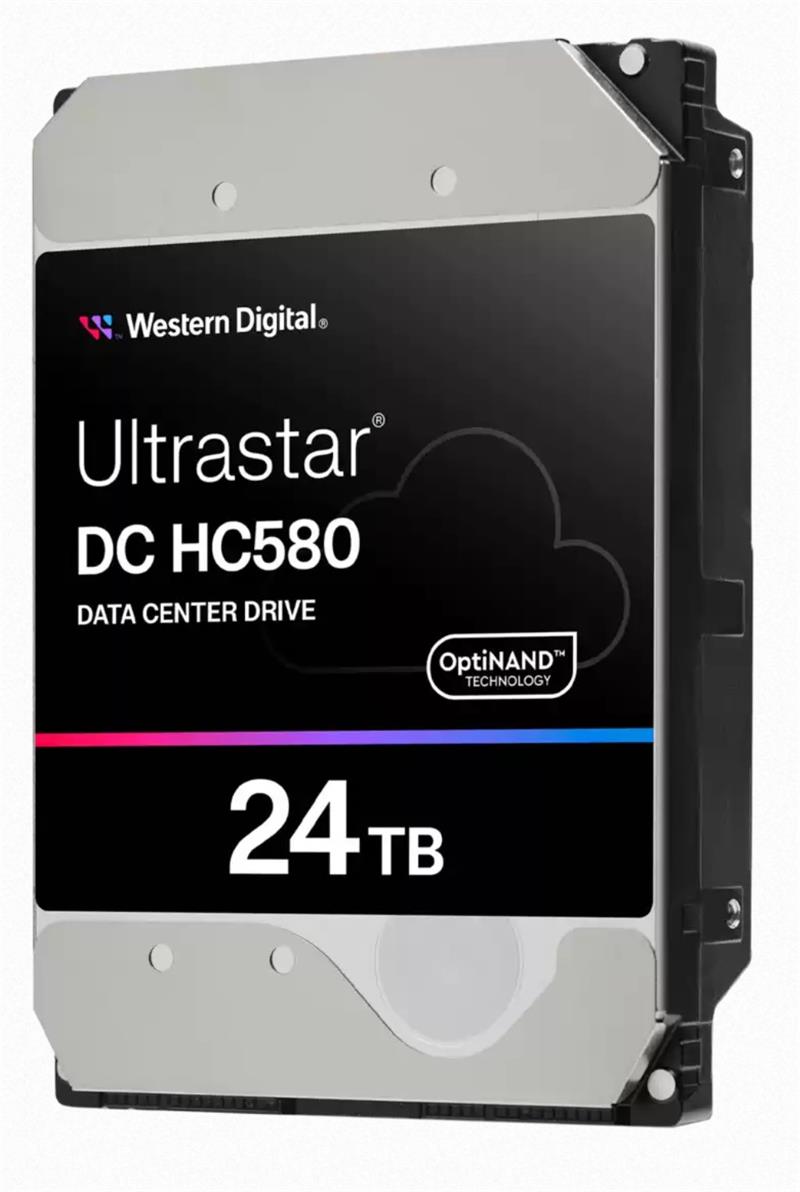

WD Ultrastar DC HC580 24TB Data Center HDD SATA SE

SATA,Interface
SATA
Interface
Up to 298MB/s,Transfer Rate
Up to 298MB/s
Transfer Rate
5-Year Limited Warranty,Warranty
5-Year Limited Warranty
Warranty

24TB data center HDD with OptiNAND™ technology

The relentless growth of data means organizations must find ways to efficiently store ever more data. The Ultrastar DC HC580 24TB1 HDD with improved OptiNAND technology is the next step in high-capacity hard drives, allowing data centers to maximize their storage, especially in footprint- and power-constrained environments.

Keep up with exponential data growth
The 24TB1 Ultrastar DC HC580 HDD with OptiNAND technology’s capacity-enabling features provides more efficient storage on a 10-disk CMR drive, enabling you to store more in the same footprint

Innovative technologies for higher capacities
Improved OptiNAND technology, energy-assisted magnetic recording (EAMR), triplestage actuator (TSA), and HelioSeal enable high capacity with low power

Performance and protection
ArmorCache is a feature enabled by OptiNAND that offers higher performance in write cache disabled mode and provides enterprise power loss protection in write cache enabled mode

Designed for data center workloads
The Ultrastar DC HC580 is performance-optimized to handle heavy application workloads of up to 550TB2 per year.

Built with reliability in mind
This robust drive delivers dependability in intense data center environments with up to 2.5M hours MTBF3 (projected).

Quality and security
Provides additional peace of mind with a 5-year limited warranty
Specifications
Capacity
24TB
Form Factor
3.5-Inch
Interface
SATA
Transfer Rate
Up to 298MB/s
Disk Speed (RPM)
7200 RPM
Recording Technology
CMR
Cache Size
512MB
Security
Base (SE)
Warranty
5-Year Limited Warranty
Endurance (TBW)
550TB/year
Dimensions (L x W x H)
5.79" x 4" x 1.03"
Weight
670gms
Model Number
0F62796
Operating Temperature
5°C to 60°C
Non-Operating Temperature
-40°C to 70°C
Additional Details

Cloud and hyperscale storage
Massive scale-out (MSO), high-density data centers
Distributed File Systems
Primary and secondary storage for Apache Hadoop® for Big Data analytics
Hybrid cloud environments
Hyperconverged infrastructure servers

Product Features

New, improved OptiNAND technology enables more efficient storage footprint
Energy-assisted magnetic recording (EAMR), triple-stage actuator (TSA), and HelioSeal for high capacity with low power
ArmorCache improves performance and provides enterprise power loss protection

Compatibility

Windows®
Windows Server®
Linux®

In The Box
Ultrastar DC HC580 24TB Left
Ultrastar DC HC580 Data Center HDD
Model Numbers
22TB, SATA, SED: 0F62784
22TB, SATA, Base (SE): 0F62785
22TB, SAS, SED: 0F62790
22TB, SAS, Base (SE): 0F62791
24TB, SATA, SED: 0F62795
24TB, SATA, Base (SE): 0F62796
24TB, SAS, SED: 0F62801
24TB, SAS, Base (SE): 0F62802
