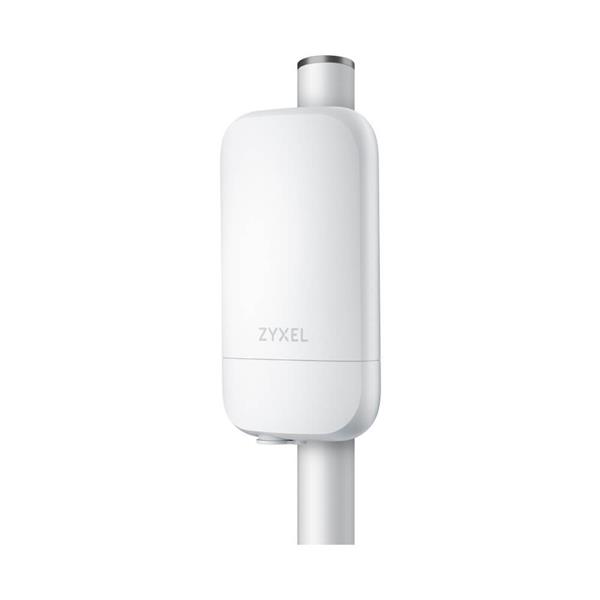

Zyxel NWA55AXPRO AX3000, 2x2 MU-MIMO, Internal Antenna, Smart Mesh, Outdoor IP55, PoE+ (802.3at), Standalone/Nebula Clou

Zyxel NWA55AXPRO AX3000, 2x2 MU-MIMO, Internal Antenna, Smart Mesh, Outdoor IP55, PoE+ (802.3at), Standalone/Nebula Cloud Managed Including Power Adapter



Wireless

Standard



IEEE802.11 ax/ac/n/g/b/a



MIMO



MU-MIMO



Wireless speed



2.4GHz: 575Mbps



5GHz: 2400Mbps



Frequency band



2.4GHz:



USA (FCC): 2.412 to 2.462GHz



Europe (ETSI): 2.412 to 2.472GHz





5GHz:



USA (FCC): 5.15 to 5.35GHz; 5.470 to 5.850GHz



European (ETSI): 5.15 to 5.35GHz; 5.470 to 5.725GHz



Bandwidth



20-, 40- ,80- and 160-MHz



Conducted typical transmit output power*1



US (2.4GHz/5GHz):



23/26dBm





EU (2.4GHz/5GHz):



20/25dBm



RF Design

Antenna type



Internal Antenna



Antenna gain



2.4GHz:



3dBi, 2x2:2SS





5GHz:



4dBi, 2x2:2SS



Minimum receive sensitivity



Min. Rx sensitivity up to -99 dBm



WLAN Features

Band steering



Yes



WDS/ Smart Mesh*2



Yes



Wireless bridge



Yes



Fast roaming



Pre-authentication, PMK caching and 802.11r/k/v



DCS



Yes



Load balancing



No



Advanced cellular coexistence



Yes



Security

Encryption



WEP



WPA



WPA2



WPA3



Authentication



IEEE 802.1X/ RADIUS authentication



Access management



L2-isolation



MAC filtering



Rogue AP detection



Networking

IPv6



Yes



VLANs



Yes



WMM



Yes



U-APSD



Yes



Management

Operating mode



Cloud managed



Standalone



Web UI/CLI



Yes



SNMP



No



Physical Specifications

Item



Dimensions (WxDxH)(mm/in.)

180 x 99 x 35.9 / 7.09 x 3.90 x 1.41



Weight (g/lb.)

300/0.66



Packing



Dimensions (WxDxH)(mm/in.)

197 x 184 x 58 / 7.56 x 7.24 x 2.28



Weight (g/lb.)

671/1.48



Included accessories



PoE injector



Mounting screws



MTBF (hr)



695,292



Physical Interfaces

Ethernet port



1 x 1GbE LAN



Power



PoE (802.3af): power draw 12W



PoE modes



IEEE 802.3af: Unrestricted



IEEE 802.3at: Unrestricted



IEEE 802.3bt: Unrestricted



Environmental Specifications

Weather protection



IP55



Operating



Temperature

-30°C to 50°C / -22°F to 122°F



Humidity

10% to 90% (non-condensing)



Storage



Temperature

-40°C to 70°C / -40°F to 158°F



Humidity

10% to 90% (non-condensing)



Certifications

Radio



FCC Part 15C



FCC Part 15E



ETSI EN 300 328



EN 301 893



LP0002



EMC



FCC Part 15B



EN 301 489-1



EN 301 489-17



EN55032



EN55035



EN61000-3-2/-3



BSMI CNS15936



Safety



EN 62368-1



IEC 62368-1



BSMI CNS15598-1
